What can the GV6K-H20E be used with?

The GV6K-H20E can be used with a number of motors, including brushless servo motors and linear servo motors.

What serial ports does the GV6K-H20E have?

The GV6K-H20E has an RS-232 port and an RS232/RS485 port.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Parker Eurotherm SSD Gemini GV6K Servo Drive Controllers GV6K-H20E

About | Product Specifications | FAQs

GV6K-H20E

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

The GV6K-H20E Servo Drive/Controller by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-H20E to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-H20E
SKU: PES-59219

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty
Manuals

GV6K-H20E Technical Specifications

Part Number	GV6K-H20E
Series	Gemini GV6K Servo Drive Controllers
Manufacturer	Parker
Voltage Input	High Voltage Input
Frequency	50/60 Hz
Phase Type	Single or Three Phase
Weight	9.6 lbs
Peak Power	14.7 kW

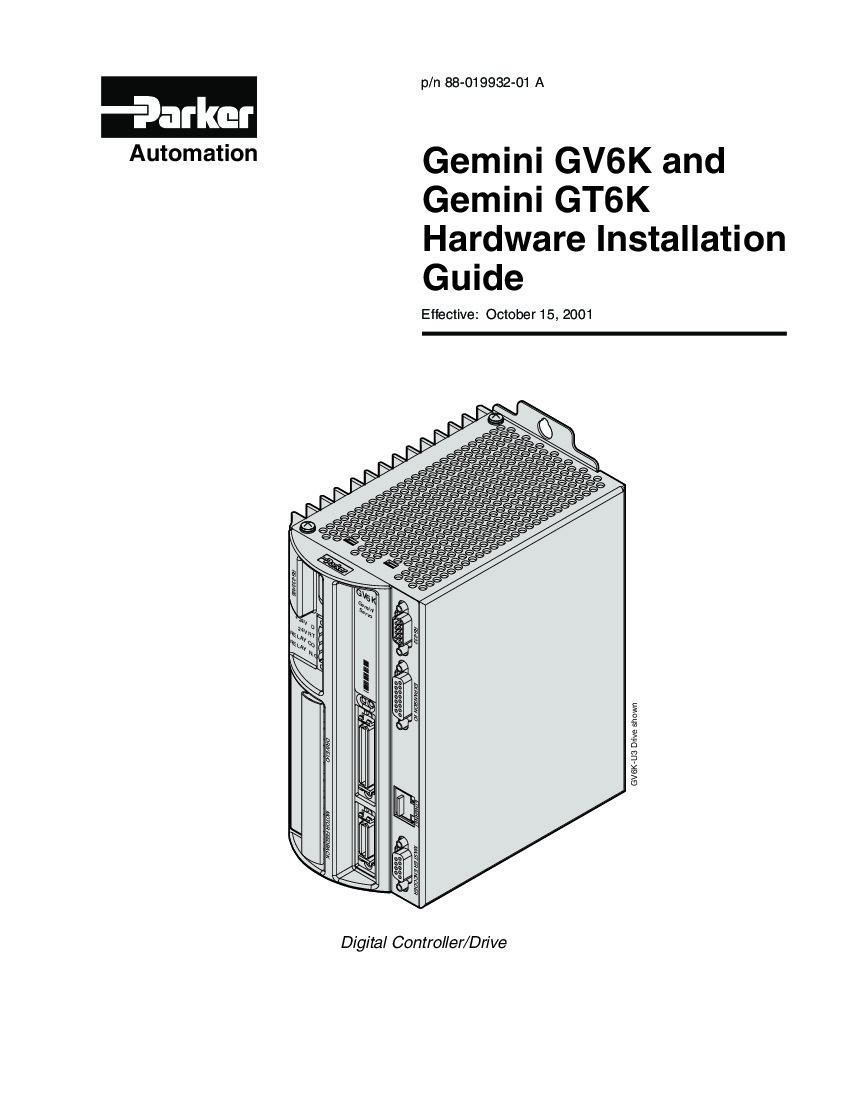

Manual Number	88-019932-01 A
Feedback Option	Encoder

About the GV6K-H20E

The GV6K-H20E is from the Gemini GV6K Servo Drive Controllers series that was manufactured by Parker. This unit is designed to be an advanced addition to Parker's Gemini family. The GV6K-H20E has better motion control and sequencing capabilities than previous units from the Gemini product line. The GV6K-H20E has a number of features that are important to the unit. Some of these features include: complex program capabilities, serial I/O modules, and Ethernet compatibility.

The GV6K-H20E has a high input voltage range, which is from 208 VAC to 265 VAC. The output power for this drive is 295/340 VDC. The GV6K-H20E also offers up to 5.9 kW of continuous power.

There are several protective features that are standards with the Gemini GV6K series. A few of these features are:

Inrush current protection
Drive over-voltage protection
Current-foldback protection
Regeneration protection

The GV6K-H20E also has control features, which includes multitasking, registration, and a PLC scan. The GV6K-H20E also has full ASCII communication capabilities.

Reviews For GV6K-H20E

Internal Review

(5.0)

The GV6K-H20E is a collaboration between other Gemini product lines and the GV6K line. This series takes the advanced qualities from the GV and GV6 series, while also implementing the flexibility and control from the Compumotor's 6K controller. The GV6K-H20E allows for easy configuration and programming, as well as more connection capabilities. - AX Control Lead Technician
