About the GEM20100

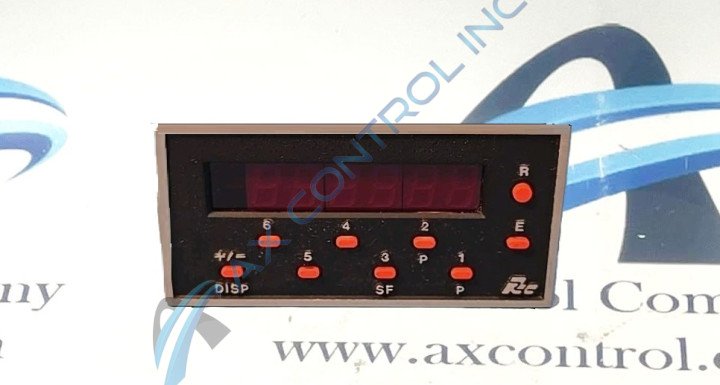

The GEM20100 6-Digit Digital Counter Module made for Red Lion's GEMINI 1000/2000 Series comes with a particular set of series-standardized hardware components and specifications, such as its:
- nine labeled pushbuttons (six numeric)
- LED-backlit red display window
- terminal strips with connection guides
- DIP switches
This GEM20100 6-Digit Digital Counter Module's DIP switches are only important for the installation stage as they are included to select the GEM20100 6-Digit Digital Counter Module's initial output circuitry.
GEM20100 Counter Module Rates
The GEM20100 6-Digit Digital Counter Module comes with several different count rates depending on its different modes:
- for Uni- or Bi-Directional Modes: 9 KHz; 8 KHz (X2) 2-Input
- for Anti-Coincidence Modes: 5 KHz; 4 KHz (X2)
- for Quadrature Modes: 5 KHz; 4 KHz (X2 or X4)
- for Rate Indicator Mode: 10 KHz; 8 KHz (X2)
