LA471171U540

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
The LA471171U540 CS Module by Parker/SSD Drives

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Sell Surplus: Have a LA471171U540 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: LA471171U540
  • SKU: PES-59185
  • Manufacturer: Parker Eurotherm SSD
  • Series: AC890PX Drives

LA471171U540 Technical Specifications

Part Number LA471171U540
Series AC890PX Drives
Manufacturer Parker, SSD Drives
Module Type Input Module
Supply 380 VAC to 460 VAC
LED Type Diagnostic LEDs

About the LA471171U540

The LA471171U540 is an Input Module (CS Module) from the AC890PX series of High Power Drives. The module and series were both manufactured by Parker and SSD Drives.

The LA471171U540 is a 3-phase input rectifier module that supplies DC power to the three CD Modules of the drive. This unit contains a half controlled diode/thyristor bridge.

The CS Modules have three protective features that are important to highlight. These units are protected against:

  • Overvoltage
  • Overtemperature
  • Overcurrent

These protections are local, meaning they only cover the specific unit, and not the rest of the drive's modules.

Frequently Asked Questions about LA471171U540

What are the LEDs for on this unit?

The LEDs act as Diagnostic LEDs, which show the status of the module.

What do the two connectors do for the LA471171U540?

The first connector provides control information from the Control Module that is also fitted into the drive. The second connector is a diagnostic connector that is to be used by the manufacturer's engineers.

Reviews For LA471171U540

Internal Review
(5.0)

The LA471171U540 can be used in multiple AC890PX drives. These drive models are the 890PX/4/0420/, 890PX/4/0480/, 890PX/4/0520/, and the 890PX/4/0580/. This module can provide DC power to the CD Modules, and it also does not require any user set-up. - AX Control Lead Technician

Repair Services For LA471171U540

Type Lead Time Price Action
Repair Service 1-2 weeks $4999

Our highly skilled technicians can repair your LA471171U540. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

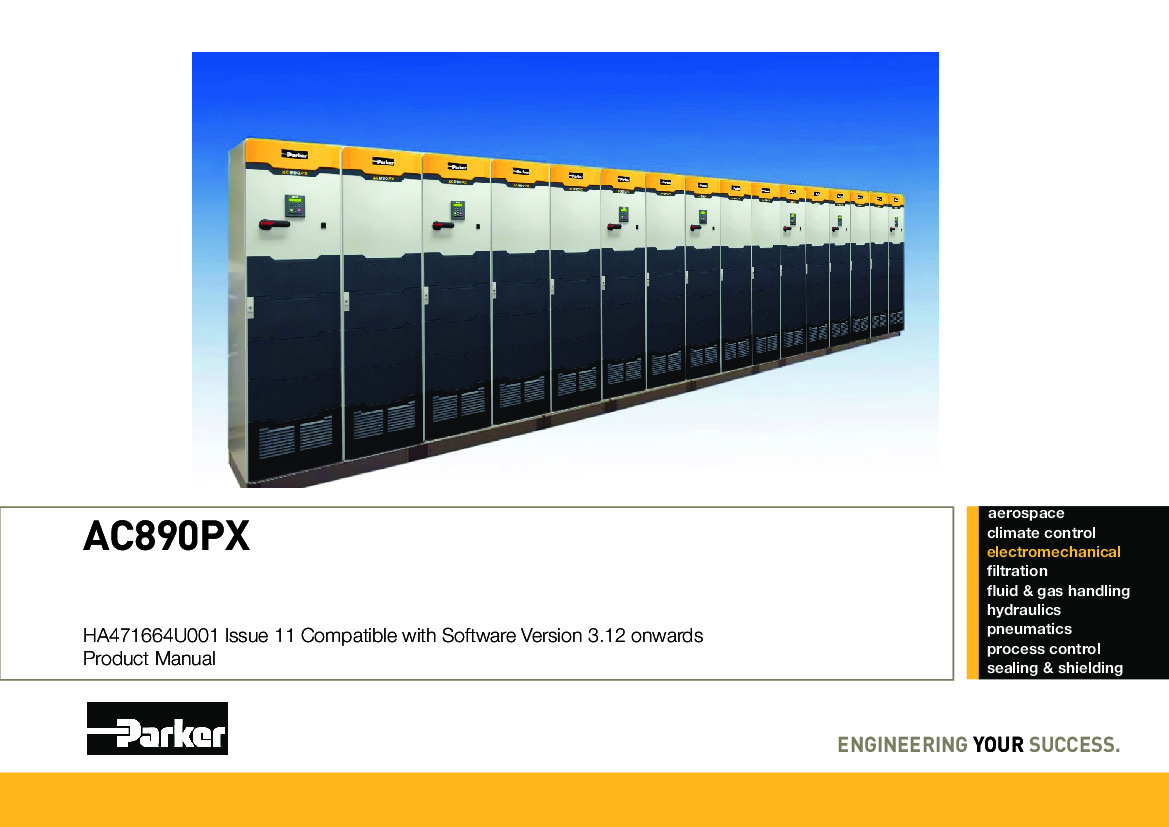

LA471171U540 Manuals, White Papers, Data Sheets, and Troubleshooting
