Home Parker Eurotherm SSD AC890 Variable Frequency Drives 890CD-532870E0-000-1A000

About | Product Specifications | FAQs

890CD-532870E0-000-1A000

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

The 890CD-532870E0-000-1A000 Common Bus Drive by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 890CD-532870E0-000-1A000 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 890CD-532870E0-000-1A000
SKU: PES-59115

Manufacturer: Parker Eurotherm SSD
Series: AC890 Variable Frequency Drives

Description
Revisions
Repairs
Warranty
Manuals

890CD-532870E0-000-1A000 Technical Specifications

Part Number	890CD-532870E0-000-1A000
Manufacturer	Parker
Series	AC890 Variable Frequency Drives
Operating Temperature	0 to 45 degrees Celsius
Humidity Rating	Maximum 85% non-condensing
Protection Rating	IP20
Altitude	Up to 1000m ASL
USB Type	USB programming port
Power (HP)	60 HP

About the 890CD-532870E0-000-1A000

The 890CD-532870E0-000-1A000 is a 60 horsepower drive from Parker. The unit is part of the AC890 Variable Frequency Drives series. The unit is more specifically known as a Common Bus Drive. This unit can be connected to a Common Bus Supply to create a Common Bus System. With this system, the 890CD-532870E0-000-1A000 can control speed and position of AC motors and motor applications.

The 890CD-532870E0-000-1A000 has four operating modes, which can be changed based on the applications needs. These are:

Open-loop (volts/frequency) control
Closed-loop vector control
Sensorless vector control
PMAC servo control

The 890CD-532870E0-000-1A000 also has three types of feedback it can receive. These feedback options are:

Incremental encoder
EnDat 2.1 (SinCos) encoder
Resolver

Frequently Asked Questions about 890CD-532870E0-000-1A000

What is Safe Torque Off?

Safe Torque Off is designed to prevent unexpected motor starts from occurring. There are two STO channels, which is to make sure one works even if the other has a fault.

Are there any manuals for the AC890 series?

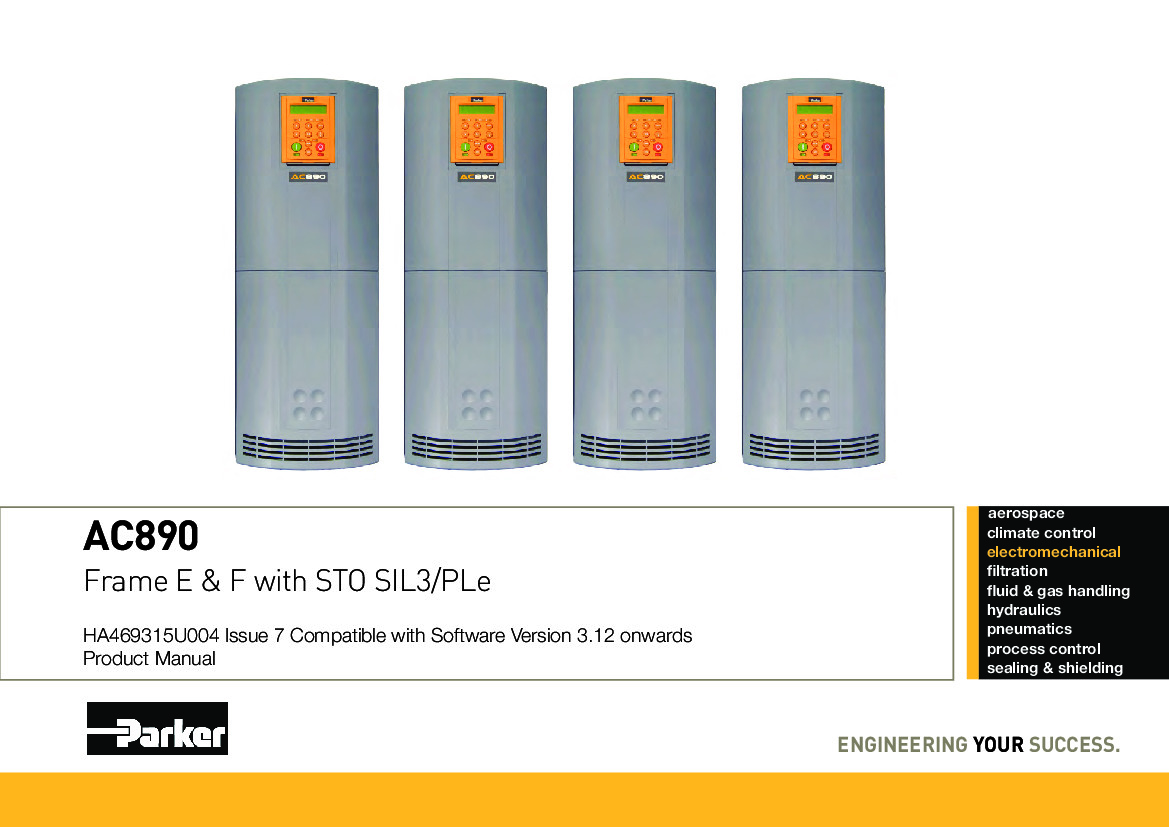

Yes, there are two important manuals for the AC890 series. There is a general manual and a frame manual. These can be found under the "Manuals" tab on this product page.

Reviews For 890CD-532870E0-000-1A000

Internal Review

(5.0)

The 890CD-532870E0-000-1A000 has a variety of motors and motor applications it can be used with. This includes demanding industrial tasks, such as printing and converting. The 890CD-532870E0-000-1A000 has a great deal of flexibility associated with it due to its place in the AC890 series. - AX Control Lead Technician

Repair Services For 890CD-532870E0-000-1A000

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$13358

Our highly skilled technicians can repair your 890CD-532870E0-000-1A000. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
