Home Parker Eurotherm SSD AC890 Variable Frequency Drives 890CD-532300C0-000-1A000

About | Product Specifications | FAQs

890CD-532300C0-000-1A000

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The 890CD-532300C0-000-1A000 Drive by Parker

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 890CD-532300C0-000-1A000 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 890CD-532300C0-000-1A000
SKU: PES-59084

Manufacturer: Parker Eurotherm SSD
Series: AC890 Variable Frequency Drives

Description
Revisions
Repairs
Warranty
Manuals

890CD-532300C0-000-1A000 Technical Specifications

Part Number	890CD-532300C0-000-1A000
Manufacturer	Parker
Series	AC890 Variable Frequency Drives
Power (HP)	20 HP
Operating Temperature	0 to 45 degrees Celsius
Altitude	Up to 1000m ASL
Humidity Rating	Maximum 85% non-condensing
Country of Manufacturer	United Kingdom
Variable Torque Rating	110% overload for 60 seconds
Constant Torque Rating	150% overload for 60 seconds

About the 890CD-532300C0-000-1A000

The 890CD-532300C0-000-1A000 is a 20 HP Common Bus Drive from Parker. This unit is from the AC890 series of Variable Frequency Drives. There are several manuals associated with the AC890 series. These manuals can be found under the "Manuals" tab on this product page.

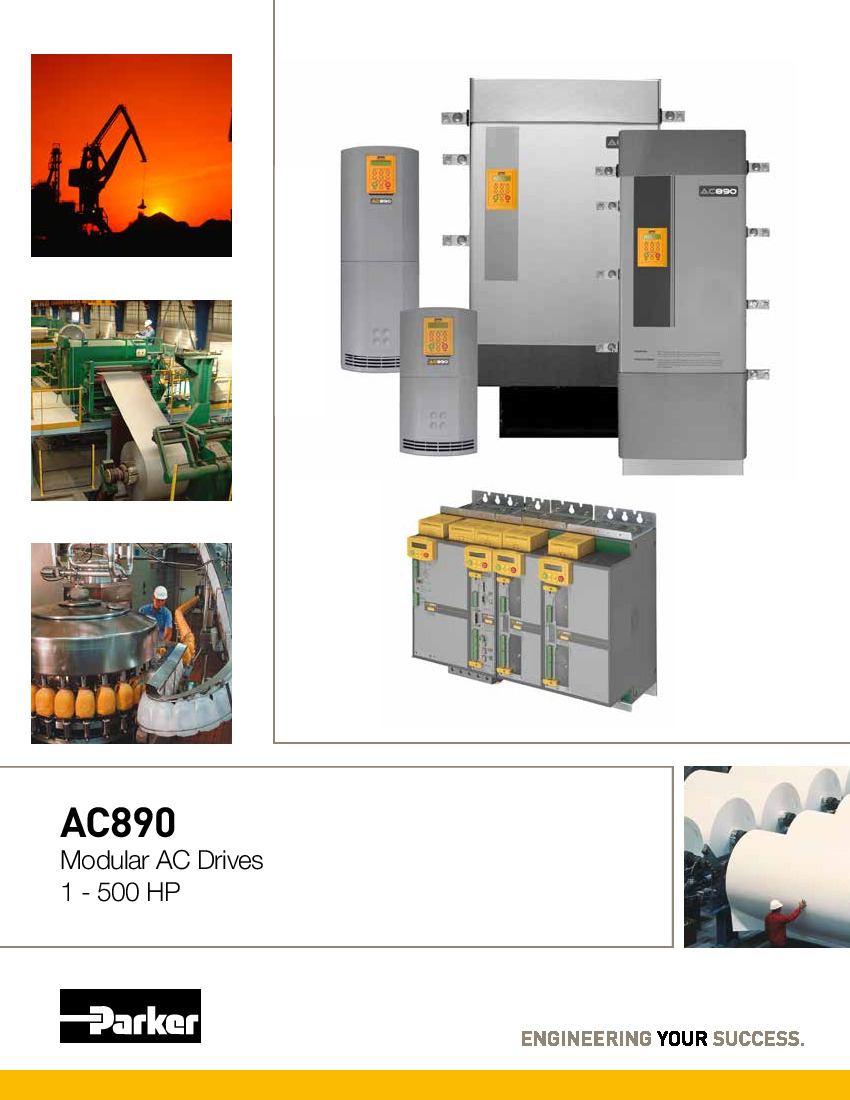

There is a general manual which has information such as:

Benefits of the AC890 series
Technical specifications
Characteristics of the AC890 units

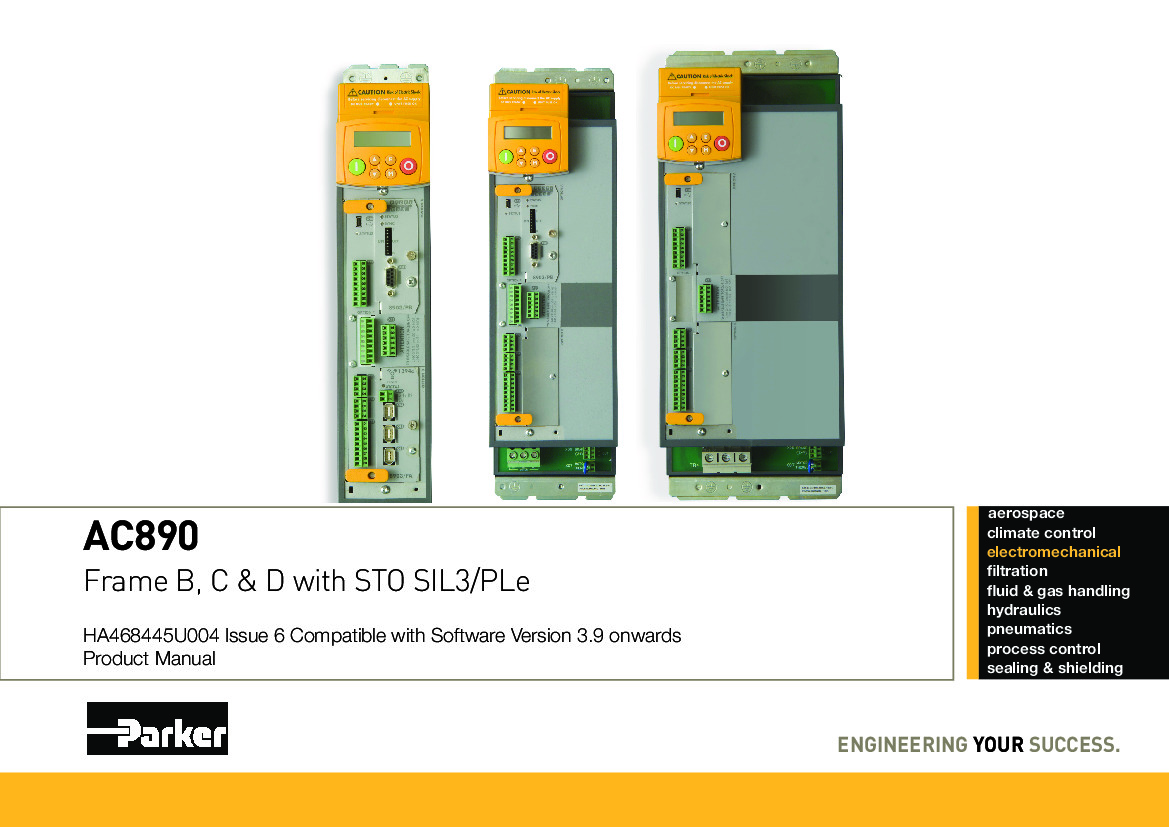

The other manual is a frame manual, which goes more in depth on processes related to the AC890 series. Some of the information included in this manual is:

Mechanical installation
STO functional description
Mechanical brake
Programming

Users can also refer to the frame manual for common trips and faults of the series.

Frequently Asked Questions about 890CD-532300C0-000-1A000

What communications systems can the 890CD-532300C0-000-1A000 be used with?

The 890CD-532300C0-000-1A000 can be used with Ethernet/IP, Modbus/TCP, LINKnet, and CANopen, among other systems.

What is STO?

STO stands for Safe Torque Off, which is a safety feature of the AC890 series. STO works to prevent unwanted motor starts. There are two STO channels to ensure that if one faults, the other channel will still run.

Reviews For 890CD-532300C0-000-1A000

Internal Review

(5.0)

The 890CD-532300C0-000-1A000 is a powerful unit that can be used in a number of applications. The unit is compatible with all AC motors, including AC induction motors and torque motors. This unit can also be connected to a Common Bus Supply which then creates a Common Bus System. - AX Control Lead Technician

Repair Services For 890CD-532300C0-000-1A000

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$3500

Our highly skilled technicians can repair your 890CD-532300C0-000-1A000. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year
