The Parker 890CD/5/0059D/N/00/A/US AC890 Drive

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 890CD-5-0059D-N-00-A-US to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 890CD-5-0059D-N-00-A-US
  • SKU: PES-59020
  • Manufacturer: Parker Eurotherm SSD
  • Series: AC890 Variable Frequency Drives

890CD-5-0059D-N-00-A-US Technical Specifications

Part Number 890CD/5/0059D/N/00/A/US
Manufacturer Parker
Series AC890 Variable Frequency Drives
Analog Outputs Torque and Speed outputs
Operating Temperature 0 to 45 degrees Celsius
Storage Temperature -25 to 55 degrees Celsius
HD Amps 52
PMAC Amps 45
DC Fusing Internal

About the 890CD-5-0059D-N-00-A-US

The 890CD/5/0059D/N/00/A/US is a 40 HP Common Bus Drive from the AC890 Variable Frequency Drive Series. This unit and series was designed by Parker to help with speed and position control of AC motors and motor applications.

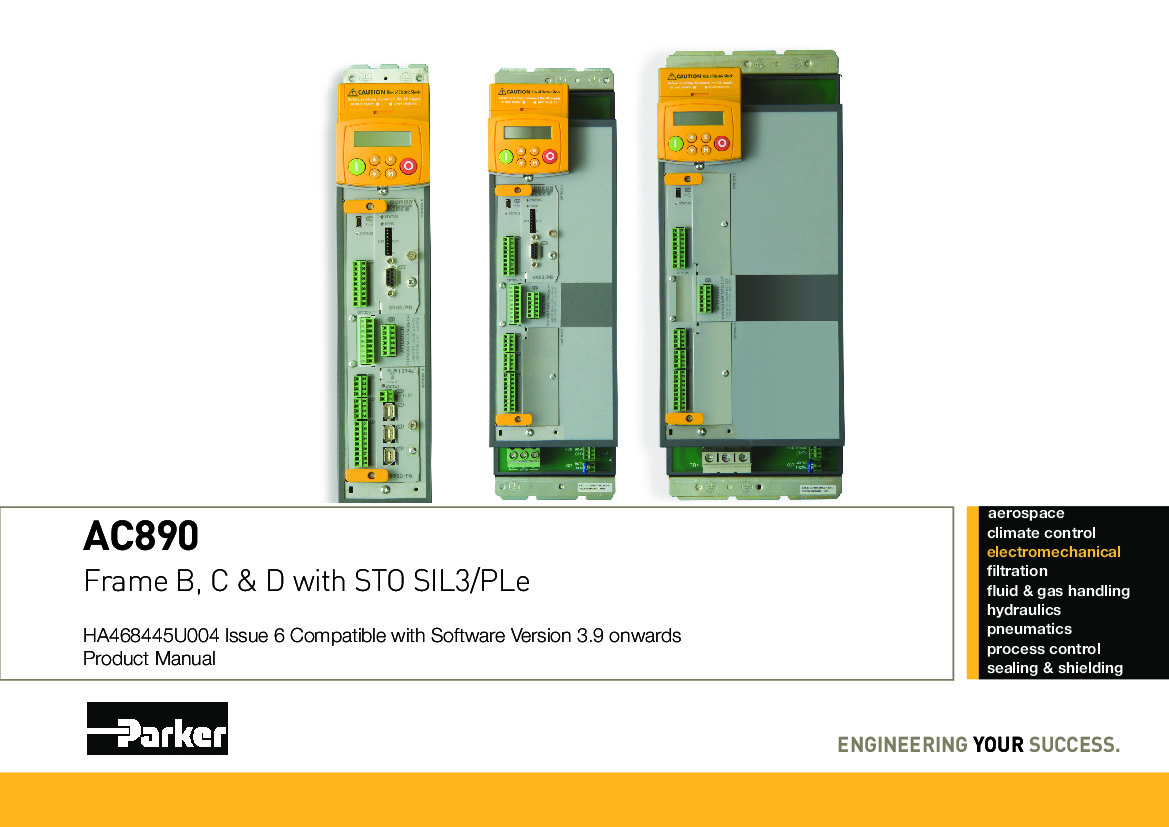

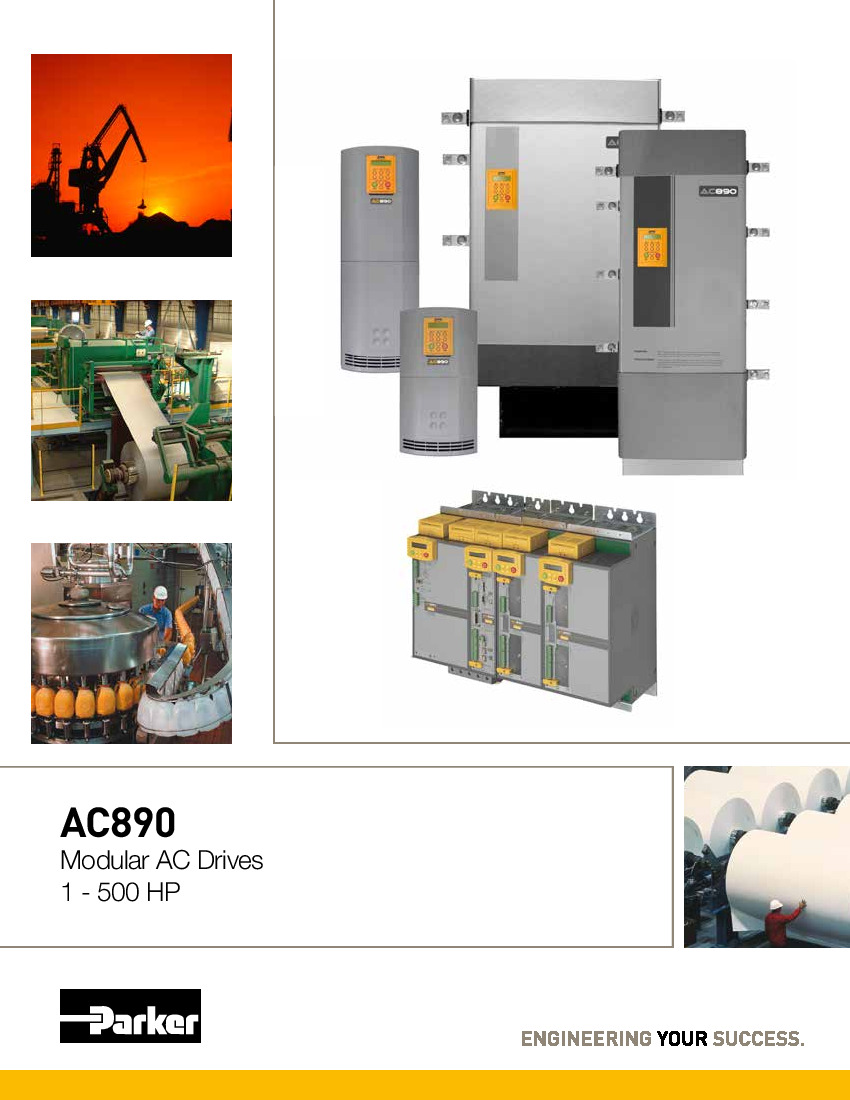

There is a handful of online manual materials that have been supplied by Parker to help with installation and maintenance of the series. These manuals can be found under our "Manuals" tab on this product page.

Another helpful feature of the manuals is the inclusion of trip and fault codes and possible reasons for these. This information can be found in Chapter 11 of the Frame Manual, but some common trips are:

  • ET (external trip)
  • DB S (brake switch)
  • PHAS (phase fail)
  • LSPD (low speed over I)

The trips are helpful to know in case a trip occurs on the unit while in use.

Frequently Asked Questions about 890CD-5-0059D-N-00-A-US

What are the overload rating for the 890CD/5/0059D/N/00/A/US?

The 890CD/5/0059D/N/00/A/US has the following overload ratings:
  • Constant torque: 150% for 60 seconds
  • Servo mode: 200% for 4 seconds
  • Variable torque: 110% for 60 seconds

What is the maximum humidity rating for the 890CD/5/0059D/N/00/A/US?

The 890CD/5/0059D/N/00/A/US can be in an maximum of 85% humid non-condensing environment.

Reviews For 890CD-5-0059D-N-00-A-US

Internal Review
(4.0)

The 890CD/5/0059D/N/00/A/US does not include a braking option, but this does not inhibit the functions of the drive. This drive can connect to the AC890 Common Bus Supply and accept DC power from these units. This creates a Common Bus System. The 890CD/5/0059D/N/00/A/US is compatible with all AC motors for controls. - AX Control Lead Technician

Repair Services For 890CD-5-0059D-N-00-A-US

Type Lead Time Price Action
Repair Service 1-2 weeks $3943

Our highly skilled technicians can repair your 890CD-5-0059D-N-00-A-US. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
