Home Parker Eurotherm SSD AC890 Variable Frequency Drives 890CD-5-0024C-N-00-A-US

About | Product Specifications | FAQs

890CD-5-0024C-N-00-A-US

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

The 890CD/5/0024C/N/00/A/US Common Drive Board by SSD Drives

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 890CD-5-0024C-N-00-A-US to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 890CD-5-0024C-N-00-A-US
SKU: PES-59014

Manufacturer: Parker Eurotherm SSD
Series: AC890 Variable Frequency Drives

Description
Repairs
Warranty

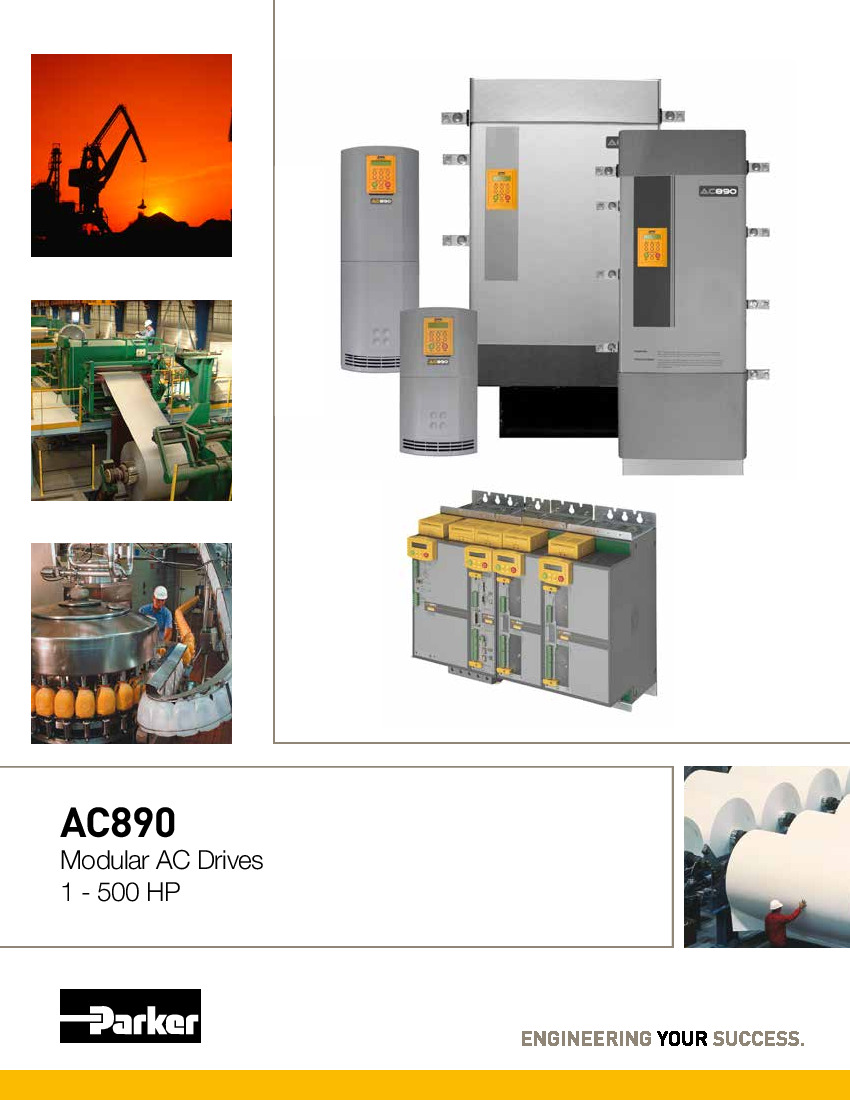

Manuals

890CD-5-0024C-N-00-A-US Technical Specifications

Part Number	890CD/5/0024C/N/00/A/US
Manufacturer	SSD Drives
Series	AC890 Variable Frequency Drives
Frame	C
Frame C Weight	14.6 lbs
HD Amps	24
Altitude	Up to 1000m ASL
Braking Option?	No Braking Option
Microprocessor	150 Mhz

About the 890CD-5-0024C-N-00-A-US

The 890CD/5/0024C/N/00/A/US is a 15HP Common Bus Drive from SSD Drives. This unit is part of the AC890 series, which is a series of Variable Frequency Drives. These drives are compatible with all AC motors. The 890CD/5/0024C/N/00/A/US can also be connected to a common bus supply unit to receive DC power.

The 890CD/5/0024C/N/00/A/US has environmental specifications that should be met when operating the unit:

Temperature range of 0 to 45 degrees Celsius
Non-flammable environment
Free of corrosives and dust
Humidity rating of max 85% non-condensing

This unit has the standard STO function, which is Safety Torque Off. There are two STO channels in the 890CD/5/0024C/N/00/A/US, which is by design to ensure no faults occur. The STO is used to prevent unplanned motor starts.

Frequently Asked Questions about 890CD-5-0024C-N-00-A-US

What kind of cooling system does the 890CD/5/0024C/N/00/A/US have?

The 890CD/5/0024C/N/00/A/US uses semiconductor cooling.

Where can trip codes be found in the manuals for these units?

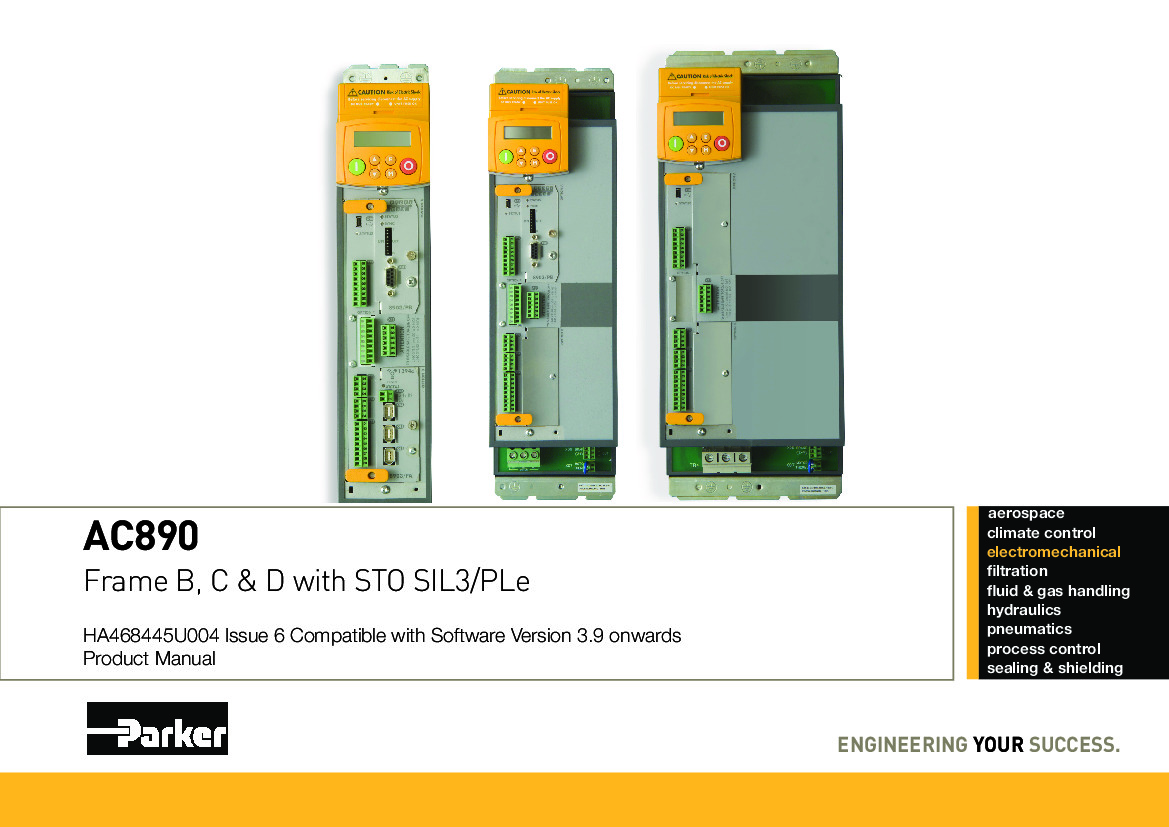

Trips and faults can be found in the frame manual under our "Manuals" tab on this product page. The information on these codes can be found in chapter 11.

Reviews For 890CD-5-0024C-N-00-A-US

Internal Review

(5.0)

The 890CD/5/0024C/N/00/A/US has a slightly bigger frame, with this unit fitted in a C frame. The C frame has the following dimensions: 17.0in H x 4.57in W x 10.16in D. The only difference in size between frames B and C is the width, with the C being a little under 2 inches wider. - AX Control Lead Technician

Repair Services For 890CD-5-0024C-N-00-A-US

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$3489

Our highly skilled technicians can repair your 890CD-5-0024C-N-00-A-US. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year
