Home Parker Eurotherm SSD AC890 Variable Frequency Drives 890CD/4/0073E/N/00/A/US

About | Product Specifications | FAQs

890CD/4/0073E/N/00/A/US

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

The 890CD/4/0073E/N/00/A/US AC890 Common Bus Drive by Parker

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 890CD/4/0073E/N/00/A/US to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 890CD/4/0073E/N/00/A/US
SKU: PES-59021

Manufacturer: Parker Eurotherm SSD
Series: AC890 Variable Frequency Drives

Description
Repairs
Warranty
Manuals

890CD/4/0073E/N/00/A/US Technical Specifications

Part Number	890CD/4/0073E/N/00/A/US
Manufacturer	Parker
Series	AC890 Variable Frequency Drives
Product Type	Common Bus Drive
USB Type	USB programming port
Power (HP)	50 HP @ 460 VAC
Protection Rating	IP20
Switching Frequency	3 kHz or 6 kHz
Digital Relay Output	4; configurable

About the 890CD/4/0073E/N/00/A/US

The 890CD/4/0073E/N/00/A/US is a 50 HP, 37 kW Common Bus Drive from Parker. The 890CD/4/0073E/N/00/A/US was designed as part of the AC890 Variable Frequency Drives series. This unit has an E frame, which has the following dimensions:

Height: 26.3 inches
Width: 10.12 inches
Depth: 12.28 inches

This frame also weighs 71.7 pounds, which is one of the heaviest out of the Common Bus Drive frames.

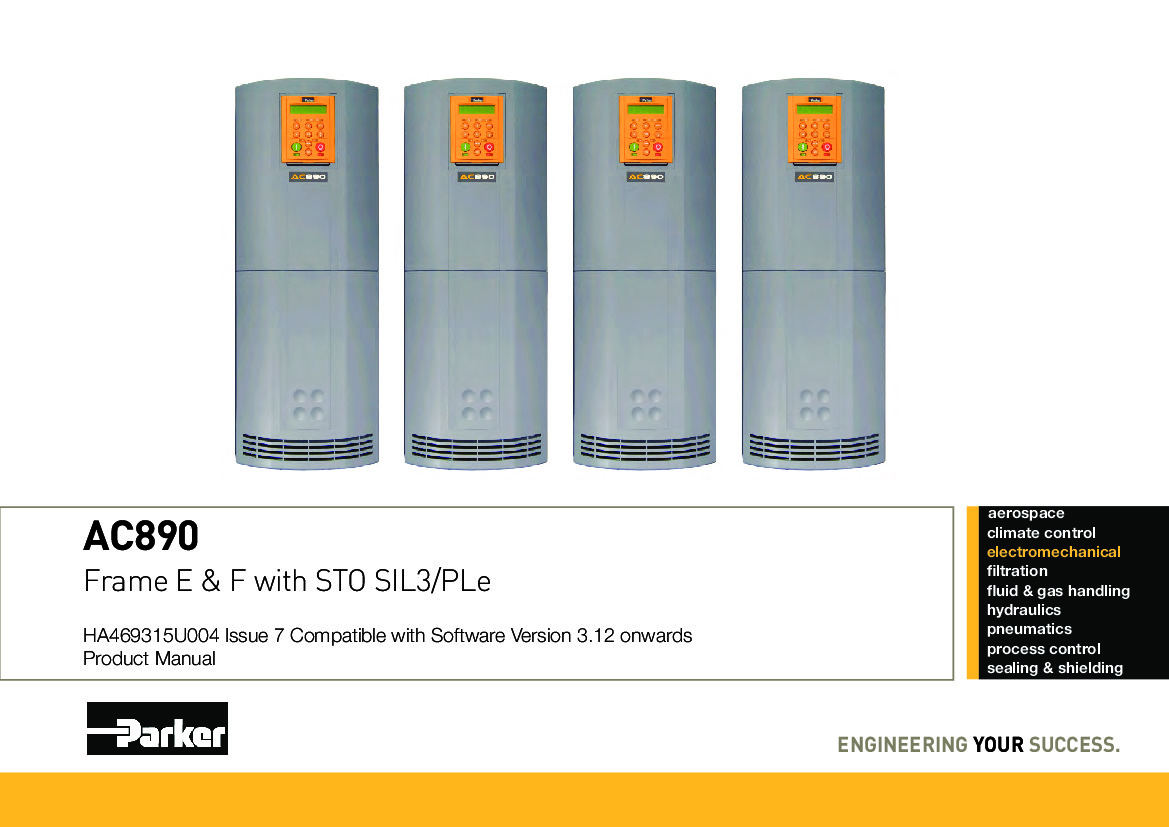

The AC890 series comes with a host of online manual materials from Parker. These manuals can be found under the "Manuals" tab on this product page. One of the manuals is a Frame Manual that outlines different specifications of the frames. Some of the chapters in this manual include:

Product Overview
Associated Equipment
Operating the Drive

The other manual is a general manual, which provides an overview of the series, as well as benefits to the AC890 units. This manual is not as technical, but there is still useful information for users.

Frequently Asked Questions about 890CD/4/0073E/N/00/A/US

What is Standard Torque Off?

Standard Torque Off, or STO, is the function that prevents unexpected motor starts. There are two STO channels, which is by design so if one has a fault, the other will still be able to run and prevent the start ups.

What are some of the communication options that the 890CD/4/0073E/N/00/A/US has?

The 890CD/4/0073E/N/00/A/US has multiple communication options, including PROFIBUS, EtherNet/IP, and DeviceNet. A full list of options can be found on page 8 of the general manual.

Reviews For 890CD/4/0073E/N/00/A/US

Internal Review

(5.0)

The 890CD/4/0073E/N/00/A/US is an AC890 Series drive that can be connected to all AC motors and most motor applications. This drive can support the most demanding industrial applications, indicating how high performing the unit is. The 890CD/4/0073E/N/00/A/US also integrates flawlessly into existing systems, allowing for users to keep their current motors. - AX Control Lead Technician

Repair Services For 890CD/4/0073E/N/00/A/US

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$5122

Our highly skilled technicians can repair your 890CD/4/0073E/N/00/A/US. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year
