Home Parker Eurotherm SSD AC890 Variable Frequency Drives 890CD-2-0003B-N-00-A-US

About | Product Specifications | FAQs

890CD-2-0003B-N-00-A-US

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

The 890CD/2/0003B/N/00/A/US Common Bus Drive by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 890CD-2-0003B-N-00-A-US to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 890CD-2-0003B-N-00-A-US
SKU: PES-59063

Manufacturer: Parker Eurotherm SSD
Series: AC890 Variable Frequency Drives

Description
Repairs
Warranty
Manuals

890CD-2-0003B-N-00-A-US Technical Specifications

Part Number	890CD/2/0003B/N/00/A/US
Manufacturer	Parker
Series	AC890 Variable Frequency Drives
Microprocessor	150 Mhz
Power (HP)	0.75 HP
Power (kW)	0.55 kW
Altitude	Up to 1000m ASL
Torque loop	62.5μs
Digital Relay Output	1; Configurable

About the 890CD-2-0003B-N-00-A-US

The 890CD/2/0003B/N/00/A/US is a 0.75 HP Common Bus Drive from the AC890 series. This series was designed by Parker. The 890CD/2/0003B/N/00/A/US can be connected to a Common Bus Supply to create a Common Bus System. The system can control speed and position of AC motors and motor applications.

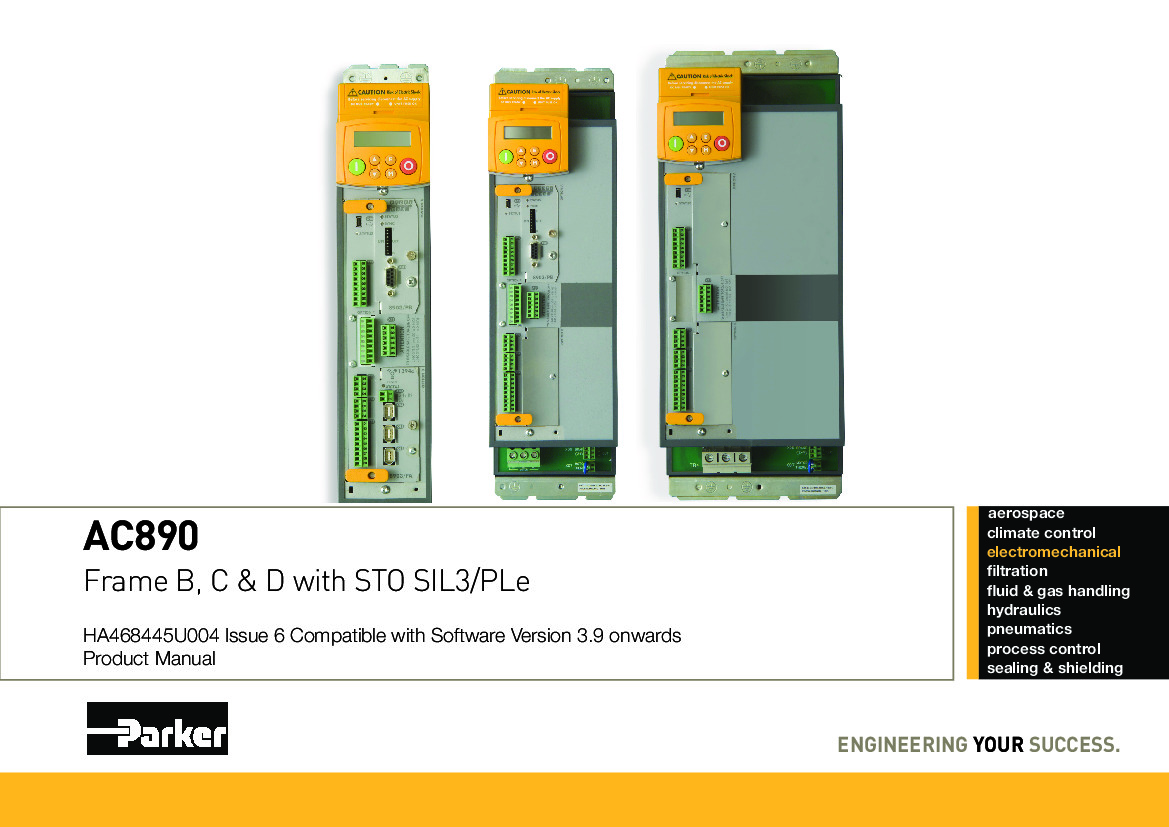

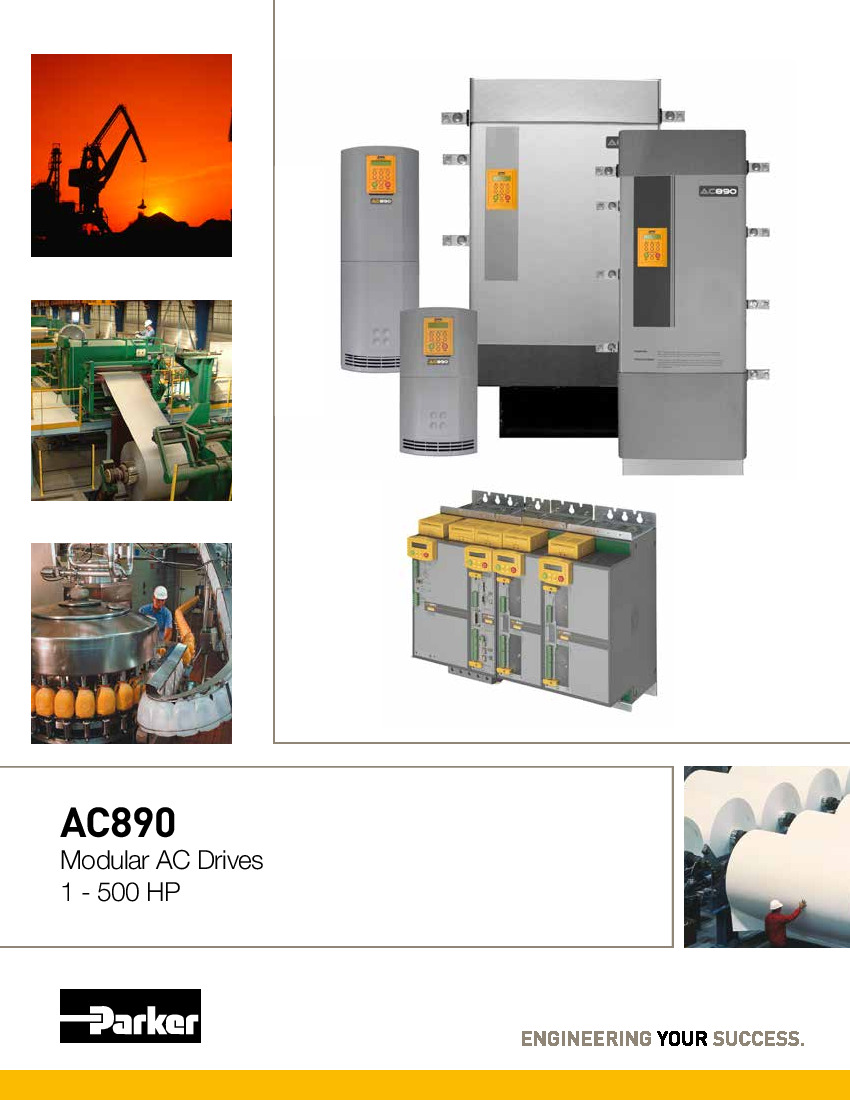

The AC890 series has several important manuals that can help with installation and maintenance of these units. There are two main manuals for the 890CD/2/0003B/N/00/A/US. These are the general AC890 manual and the frame manual for frames B-D. These manuals can be found under the "Manuals" tab on this product page.

The frame manual is especially helpful as it provides more specific information on several processes with the 890CD/2/0003B/N/00/A/US. These include:

Trips and faults
Programming
Mechanical installation

These are all crucial to understand when using the 890CD/2/0003B/N/00/A/US and other AC890 series units.

Frequently Asked Questions about 890CD-2-0003B-N-00-A-US

What environmental factors should be considered when installing the 890CD/2/0003B/N/00/A/US?

The 890CD/2/0003B/N/00/A/US needs to be in an atmosphere free of dust, corrosives, and flammables. This unit is also not protected against liquids.

How big is the 890CD/2/0003B/N/00/A/US?

The 890CD/2/0003B/N/00/A/US is a compact unit, with dimensions of: 17.0 in H x 2.85 in W x 10.16 in D.

Reviews For 890CD-2-0003B-N-00-A-US

Internal Review

(5.0)

The 890CD/2/0003B/N/00/A/US has a nominal input voltage of 230 VAC. This unit has a low horsepower rating at 0.75 but it remains a useful unit for the series. It can be used in PMAC Brushless motors or Torque motors, among other AC motors. The unit can be used for a variety of processes, depending on users needs. - AX Control Lead Technician

Repair Services For 890CD-2-0003B-N-00-A-US

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1990

Our highly skilled technicians can repair your 890CD-2-0003B-N-00-A-US. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
