The 8903/M1 Sin/Cos Registration Card by Parker/SSD Drives

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 8903/M1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8903/M1
  • SKU: PES-59125
  • Manufacturer: Parker Eurotherm SSD
  • Series: AC890 Variable Frequency Drives

8903/M1 Technical Specifications

Part Number 8903/M1
Manufacturer Parker, SSD Drives
Series AC890 Variable Frequency Drives
Serial Protocol Endat 2.1
Absolute Maximum Supply Voltage 30V
Manual Number HA469269U001
Input safety category SELV
Compatible Drives AC890SD and AC890CD
Operating Input Supply Voltage 5V to 24V

About the 8903/M1

The 8903/M1 is a Sin/Cos Registration Option card from the AC890 series. This card was manufactured by Parker and SSD Drives.This card can be fitted into the Option A slot on the AC890 Drive. There are alternative part numbers that the card may be under: 8903-M1-00-00 or 8903-M1-00-FF.

The 8903/M1 allows for Sin/Cos encoders to connect directly to the drive to give speed feedback measurement and registration. The 8903/M1 has an adjustable supply of either 5V or 10V that is for the encoder.

This card has four auxiliary digital inputs that are optically isolated. These inputs can be used in two different ways:

  • General purpose inputs
  • Inputs for registration mark sensors

The 8903/M1 also has three non-isolated auxiliary digital outputs. These can be used as general purpose outputs or to synthesize an encoder output.

Like the 8902/M1, the 8903/M1 can be used to decode Heidenhain Endat 2.1 absolute position Encoders. The card also decodes logic to interface the encoder to the microprocessor.

Frequently Asked Questions about 8903/M1

What is the difference in the alternate part numbers?

The 8903-M1-00-00 fits into the Option A slot, whereas the 8903-M1-00-FF is a factory-fitted option.

What drives can the 8903/M1 be fitted into?

The 8903/M1 can be fitted with AC890 Common Bus Drives and Standalone Drives.

Reviews For 8903/M1

Internal Review
(5.0)

The 8903/M1 is the same as the 8902/M1 in its functionality, but the 8903/M1 has additional features. The auxiliary digital inputs and outputs are specific to this unit, providing expanded capabilities to the 8903/M1. The card fits perfectly into the AC890 drives. - AX Control Lead Technician

  • 8903-M1-00-00
  • 8903-M1-00-FF

Repair Services For 8903/M1

Type Lead Time Price Action
Repair Service 1-2 weeks $770

Our highly skilled technicians can repair your 8903/M1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

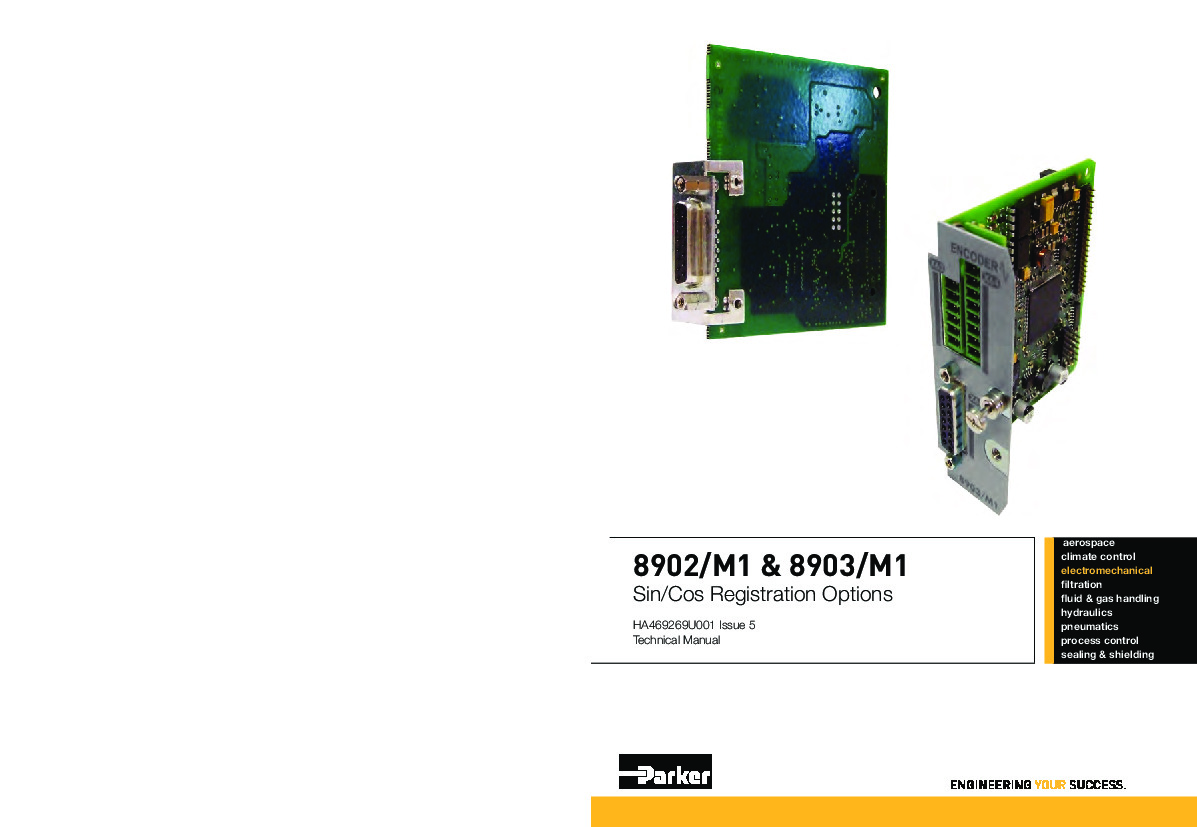

8903/M1 Manuals, White Papers, Data Sheets, and Troubleshooting
