8902/M1 Sin/Cos Registration Option by Parker and SSD Drives

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 8902/M1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8902/M1
  • SKU: PES-59124
  • Manufacturer: Parker Eurotherm SSD
  • Series: AC890 Variable Frequency Drives

8902/M1 Technical Specifications

Part Number 8902/M1
Manufacturer Parker, SSD Drives
Series AC890 Variable Frequency Drives
Product Type Sin/Cos Registration Card
Board Number AH469867U001
Maximum Pulse Rate 250 kHz
Terminal Type 15-way, D-type socket
Supply 5V or 10V
Manual Number HA469269U001

About the 8902/M1

The 8902/M1 is a Sin/Cos Registration Option manufactured by Parker and SSD Drives. This option card can be used in the AC890 Variable Frequency Drives series.

The card can be fitted to 890SD and 890CD drives. The purpose of the 8902/M1 is to allow Sin/Cos encoders to connect to the drive to provide speed feedback registration and measurement.

The 8902/M1 can decode logic in order to interface the encoder to the drive's microprocessor. The specific encoder that the 8902/M1 can decode is the Heidenhain Endat 2.1 absolute position Encoder. The 8902/M1 can supply either 5V or 10V to the encoder.

The card has to alternate part numbers that indicate where the card is fitted:

  • 8902-M1-00-00
    • Fitted in the Option F position
  • 8902-M1-00-FF
    • Factory-fitted option

Frequently Asked Questions about 8902/M1

Does the manual provide fitting instructions for the 8902/M1?

Yes, the fitting instructions can be found on page 6 of the manual related to the 8902/M1. This manual can be found under the "Manuals" tab on this page.

What is the Encoder Supply of the 8902/M1?

The 8902/M1 has a maximum load of 250mA and as mentioned above, there is an adjustable voltage of either 5V or 10V.

Reviews For 8902/M1

Internal Review
(5.0)

The 8902/M1 is a useful option for the AC890 series. This card allows for Sin/Cos Encoders to connect directly to the drives to provide speed feedback. The 8902/M1 helps with precise and accurate feedback measurements. The card can be used with either Standalone Drives or Common Bus Drives from the AC890 series. - AX Control Lead Technician

  • 8902-M1-00-00
  • 8902-M1-00-FF
  • AH469867U001

Repair Services For 8902/M1

Type Lead Time Price Action
Repair Service 1-2 weeks $700

Our highly skilled technicians can repair your 8902/M1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

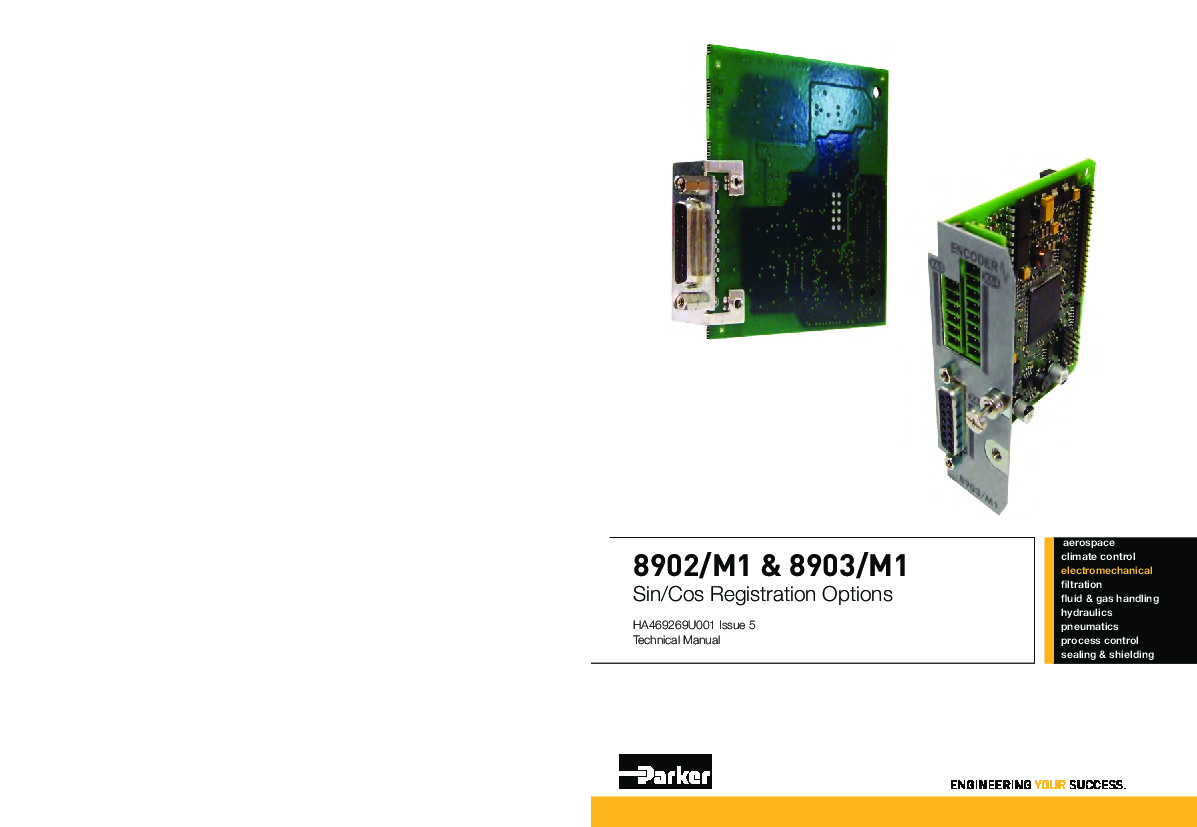

8902/M1 Manuals, White Papers, Data Sheets, and Troubleshooting
