The 8902/EQ HTTL Speed Feedback Option by Parker/SSD Drives

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 8902/EQ to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8902/EQ
  • SKU: PES-59127
  • Manufacturer: Parker Eurotherm SSD
  • Series: AC890 Variable Frequency Drives

8902/EQ Technical Specifications

Part Number 8902/EQ
Manufacturer Parker, SSD Drives
Series AC890 Variable Frequency Drives
Manual Number HA469255U001
Board Number AH465779U001
Fitted Option 8902-EQ-00-FF
Receiver Current <10mA per channel
Maximum Pulse Rate 250 kHz (differential)
Adjustable Voltage Range 10V-20V

About the 8902/EQ

The 8902/EQ is an HTTL Speed Feedback Option from the AC890 series by Parker and SSD Drives. The 8902/EQ allows for an incremental encoder to be directly connected to the drive in order to give precise speed feedback measurements.

This option either comes factory fitted, which is indicated by the part number of 8902-EQ-00-FF, or it can be slotted into Option F, which can be seen in the part number 8902-EQ-00-00.

The 8902/EQ has several features that are important for the option card. These features are:

  • Three optically isolated differential inputs on channels A, B, and M
  • Decode logic to interface the encoder to the microprocessor
  • Supplies variable voltage and has an isolated encoder power supply

Frequently Asked Questions about 8902/EQ

What drives can the 8902/EQ be used with?

The 8902/EQ can be used with AC890 Standalone Drives, as well as Common Bus Drives.

Is there a manual for the 8902/EQ?

Yes, there is a manual that can be found under our "Manuals" tab on this page. The manual gives more information on the option and important processes like installation.

Reviews For 8902/EQ

Internal Review
(5.0)

The 8902/EQ is a useful addition to the AC890 series because it allows a direct connection between an encoder and a drive. The 8902/EQ provides a power supply of 10V to 20V to the encoder. It is recommended to keep another option as a spare to reduce downtime. - AX Control Lead Technician

  • 8902-EQ-00-00
  • 8902-EQ-00-FF
  • AH465779U001

Repair Services For 8902/EQ

Type Lead Time Price Action
Repair Service 1-2 weeks $700

Our highly skilled technicians can repair your 8902/EQ. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

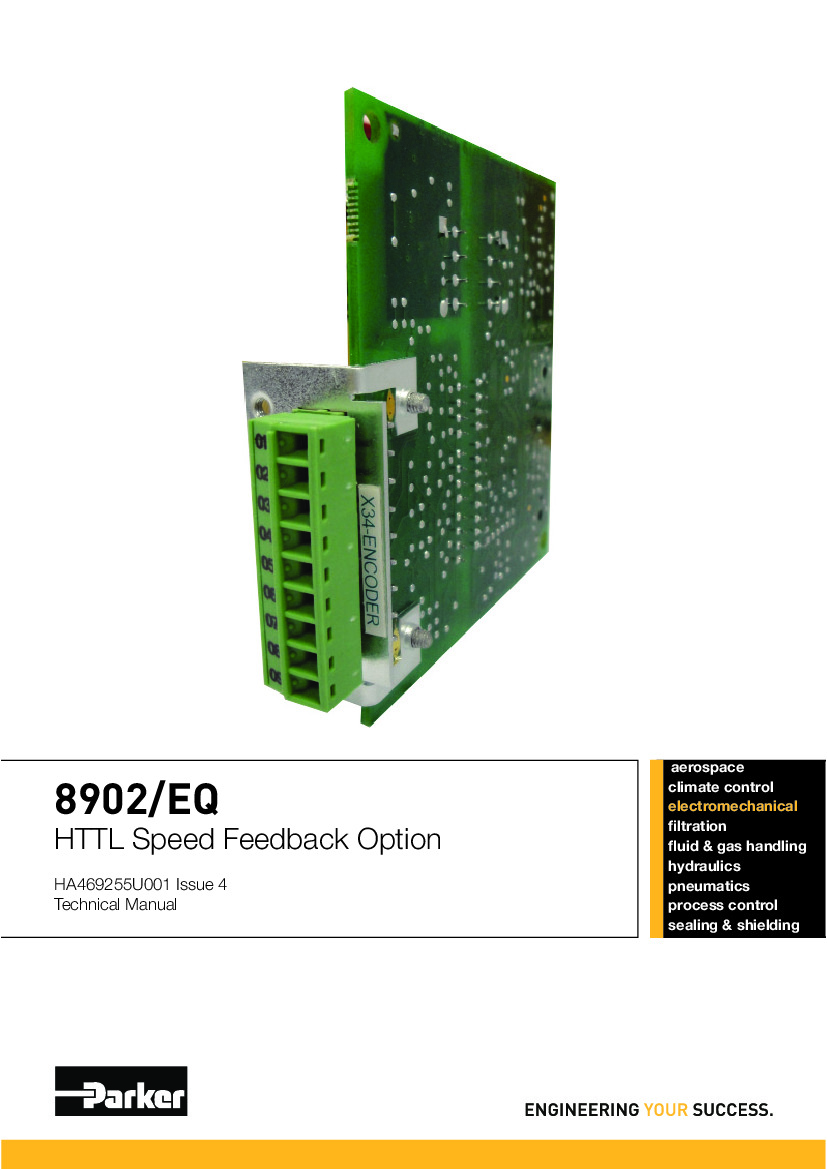

8902/EQ Manuals, White Papers, Data Sheets, and Troubleshooting
