The 8902/E1 Sin/Cos Speed Feedback Option Card by Parker/SSD Drives

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 8902/E1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8902/E1
  • SKU: PES-59126
  • Manufacturer: Parker Eurotherm SSD
  • Series: AC890 Variable Frequency Drives

8902/E1 Technical Specifications

Part Number 8902/E1
Manufacturer Parker, SSD Drives
Series AC890 Variable Frequency Drives
Maximum Pulse Rate 250 kHz
Terminal Type 15-way, D-type socket
Option Slot Option F
Board Number AH469498U001
Factory Fitted Option 8902/E1/00/FF
Maximum Load 250mA

About the 8902/E1

The 8902/E1 is a Sin/Cos Feedback Option designed for the AC890 Standalone and Common Bus Drives. The option was manufactured by Parker and SSD Drives.

This option allows Sin/Cos encoders direct connection to the drive, which helps to give accurate speed feedback measurement. The 8902/E1 has an adjustable supply of either 5V or 10V given to the encoder. The 8902/E1 has two decoding uses:

  • decoding logic to interface encoder to the microprocessor
  • decoding Heidenhain Endat 2.1 Absolute Position Encoders

The 8902/E1 has a factory fitted option, which is signified as an 8902/E1/00/FF. There is also an option with the part number 8902/E1/00/00, which can be slotted into the Option F opening in the drive.

Frequently Asked Questions about 8902/E1

Does the 8902/E1 have a manual with it?

Yes, there is a manual for this option card. This can be found under the "Manuals" tab on this page.

Can the 8902/E1 be installed with other option cards?

Yes, the 8902/E1 can be installed in the Option F slot, and there can be other options in slots A and B.

Reviews For 8902/E1

Internal Review
(5.0)

The 8902/E1 is a useful option that can either be factory fitted or fitted in the Option F slot. This option allows for encoders to deliver precise speed feedback measurements by being directly connected to the motor controller. The option can be used in both Common Bus Drives and Standalone Drives and is easy to fit into open slots. - AX Control Lead Technician

  • 8902/E1/00/00
  • 8902/E1/00/FF
  • 8902/EI/00/FF
  • AH469498U001

Repair Services For 8902/E1

Type Lead Time Price Action
Repair Service 1-2 weeks $437

Our highly skilled technicians can repair your 8902/E1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

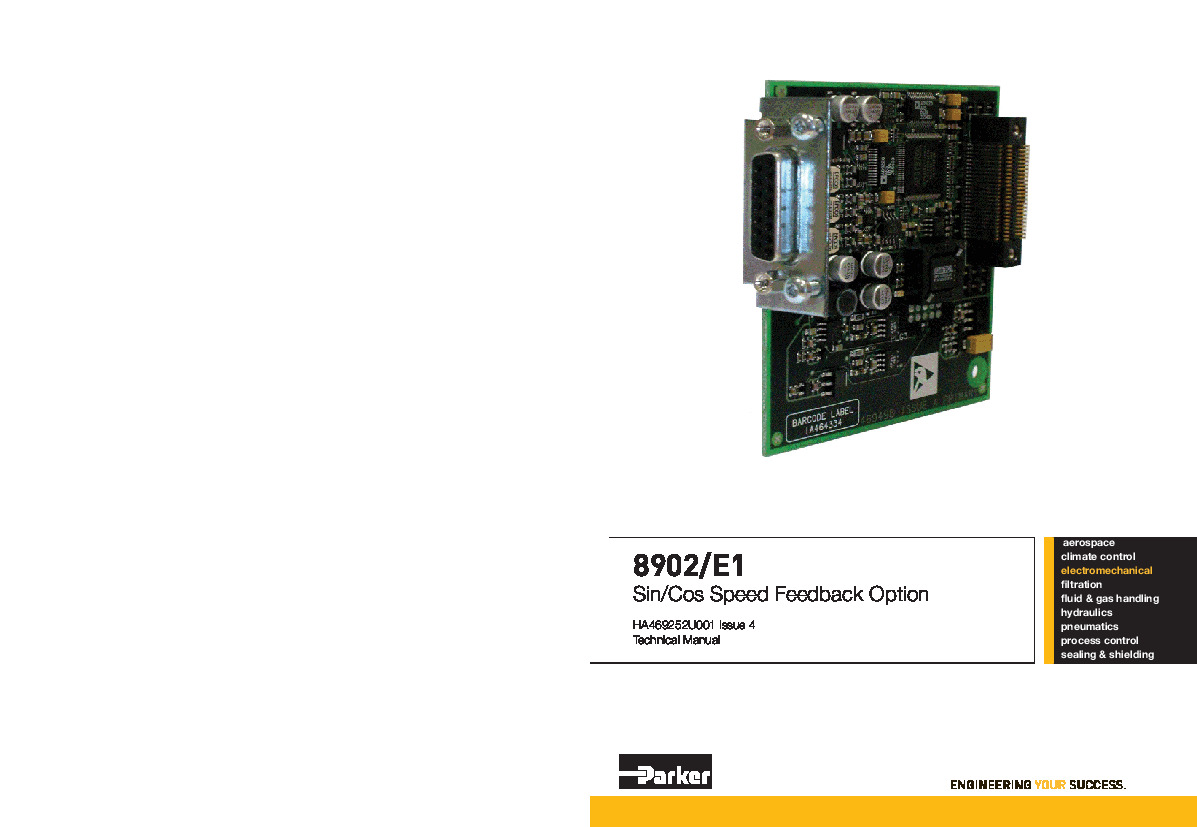

8902/E1 Manuals, White Papers, Data Sheets, and Troubleshooting
