KV-24DR

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.71 (7)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.71 (7)
  • Click a star to rate this product
8 Relay Outputs with 16 Inputs, Super-Small PLC DC Type

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a KV-24DR to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

KV-24DR

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.71 (7)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.71 (7)
  • Click a star to rate this product
8 Relay Outputs with 16 Inputs, Super-Small PLC DC Type

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a KV-24DR to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

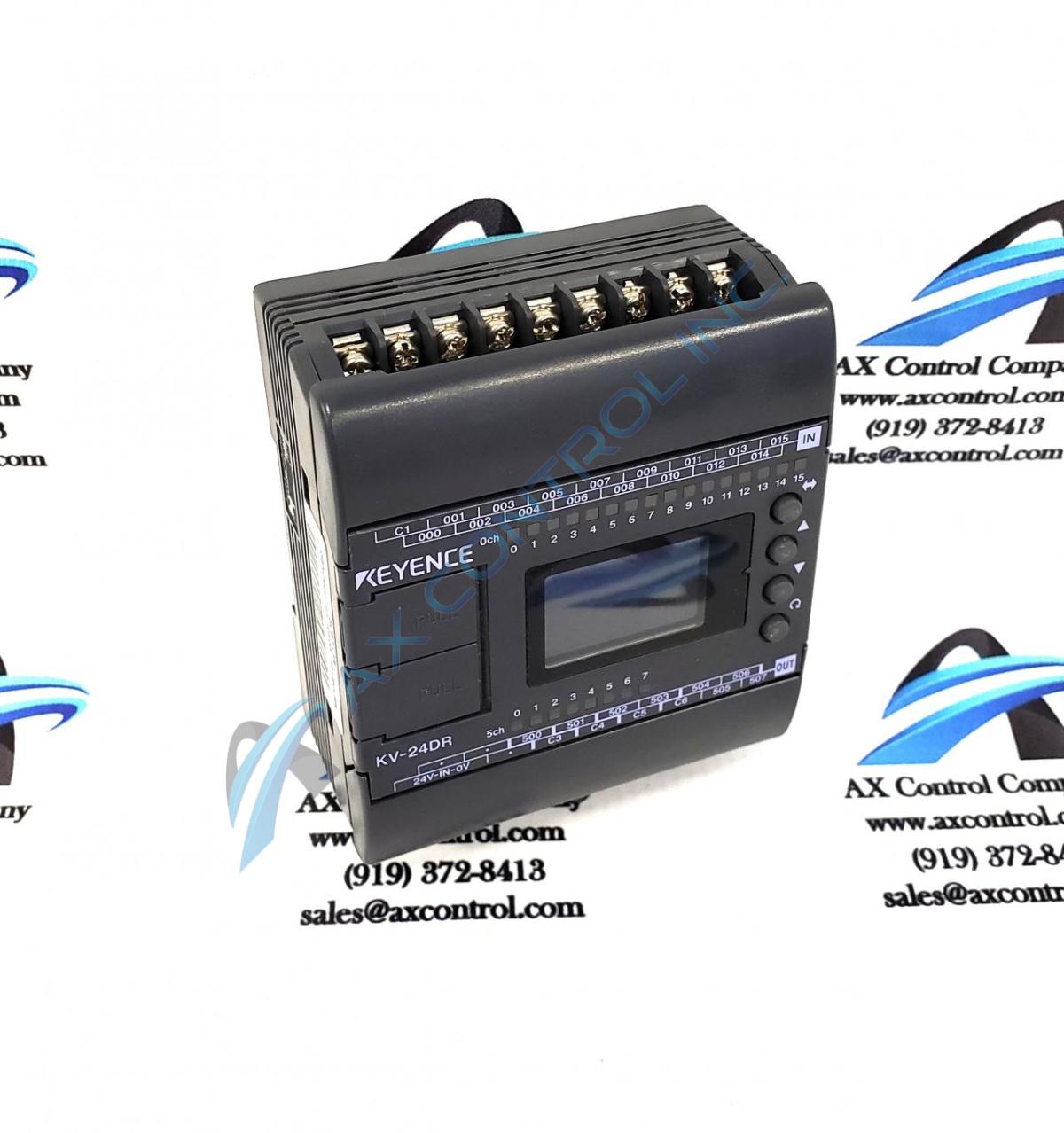

The KV-24DR Keyence unit can be found in the manual for more information. The KV-24DR is very small and weighs about 240g. This base unit is a part of the Visual KV Series and has a built-in display.

The KV-24DR has a logic controller that has programming software that can be installed. This KV-24DR PLC has 16 inputs and 8 relay outputs. This KV-24DR base unit uses DC power supply. The input power supply voltage of this KV-24DR base unit uses 24 VDC (+10%, -20%). Only less than 2 ms is allowed to be instantly outage timed. 140mA or less can be consumed by the internal current of 24 VDC. This KV-24DR unit has resistances against temperature, humidity, noise and shock, voltage, and dust or corrosive gases. The KV-24DR should be operated at 0 to 50 degrees C (32 to 122 degrees F). The storing temperature for the KV-24DR is -20 to 70 degrees C (-4 to 158 degrees F).

The Visual KV-24DR unit should never freeze or have condensation on the unit. This unit can withstand 1,500 VAC of voltage for only 1 minute and this is between the terminals and the case. The KV-24DR unit can resist 1,500 Vp-p or more of noise with a pulse rate of 1 microsecond. There is also a resistance to shock that conforms to JIS C 0041, 150 m/s2 (15 G). The operating time for the resistance of a shock for the KV-24DR is 11 ms or 2 times in each of the 3 axial directions. These are general specifications for the KV-24DR unit.

Repair Services For KV-24DR

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your KV-24DR. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

KV-24DR Manuals, White Papers, Data Sheets, and Troubleshooting
