Product Description
The CV-3502 module is a high performance model controller that was created and manufactured by the KEYENCE Corporation for the CV-3000 series of cameras and additional optional camera equipment.
The CV-3502 controller model has an internal memory capacity, or the maximum number of settings that can be registered) of approximately 45 megabytes (on the 1000 settings). As for the window settings, the measurement area of the CV-3502 is 128 windows per program, the mask area is 4 areas per window, and the area stage can be the following: rectangle, rotating rectangle, ellipse, circumference, circle, polygon, arc, Auto-adjusting rectangle, and Auto-adjusting circle. The position detection measurement systems are pattern search (which can support multiple detections), pattern sort, edge position, trend edge position, and blob (gravity center position). The internal memory card of the CV-3502 controller module supports the NR-M32, (32 megabytes), the GR-M256) (256 megabytes), the CV-M1G (1 gigabyte), VFAT, and FAT32.

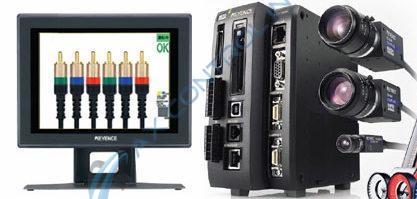

The CV-3502 controller’s I/O terminal is located in the top left corner of the device and is able to connect to the PLC. The middle houses the internal memory card at the very top, with the USB 2.0 and the RS-232C below it, which can both connect to compatible PCs. Below those lies an ethernet port where an external PC can be connected. Two cameras can be connected to the right side of the controller, and two more cameras can be connected using a camera expansion unit. Additionally, there is a port where an RGB monitor can be connected.
The CV-3502 controller weighs about 2.10 lbs. or 0.95 kg.
