The HEQX651AA Color-Touch Display Touchscreen made for Horner Electric's QX Color-Touch OCS Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a HEQX651AA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: HEQX651AA
SKU: HE-59420

Manufacturer: Horner Electric
Series: QX Color-Touch OCS

Description
Repairs
Warranty

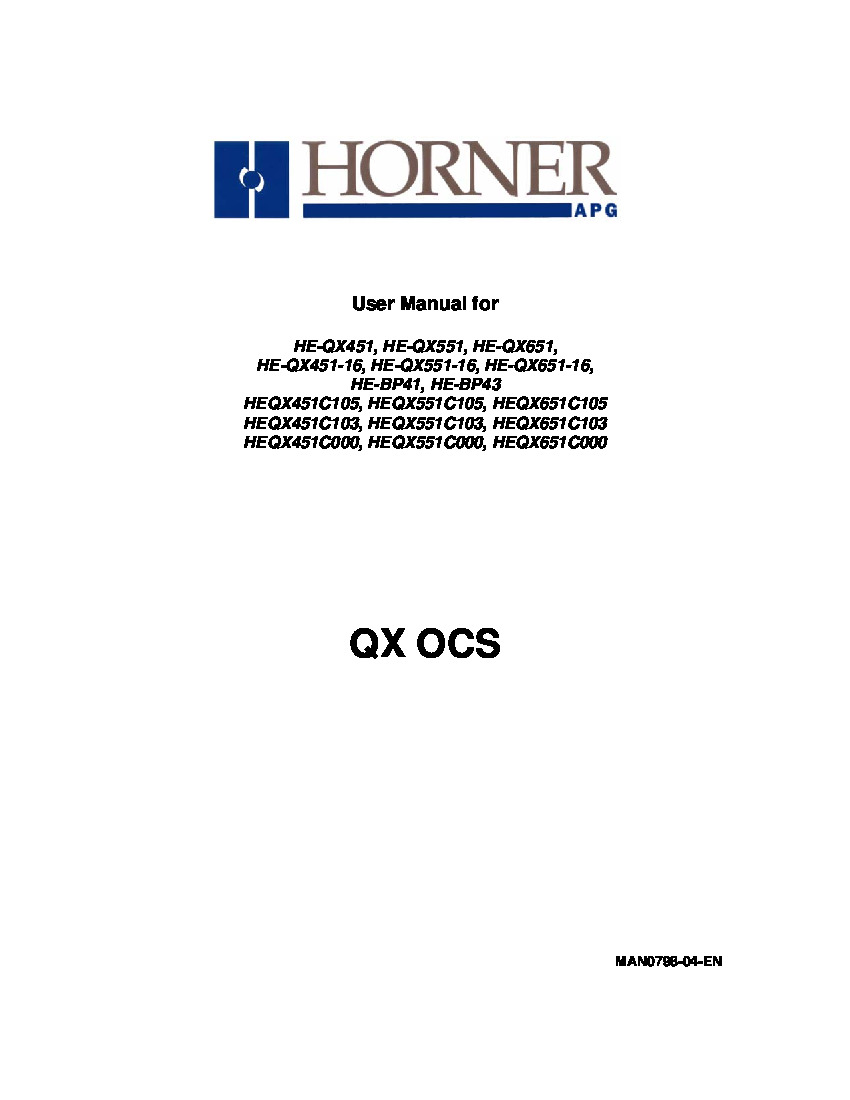

Manuals

HEQX651AA Technical Specifications

Part Number	HEQX651AA
Functional Description	Color-Touch Display Touchscreen
Series	QX Color-Touch OCS
Manufacturer	Horner Electric
Display Type	800 x 600 TFT
Display Size	12.1”
Screen Dimensions	9.7“W x 7.3“H
Back Pack LEDs	3 LEDs
Display Memory	8 MBytes
Faceplate Material	Lexan HP92
Fiber Optic Extension	High-speed FOX QX Backplane
Screens Supported	1,023 Screens
Objects per Screen Supported	300 Objects
Colors	32,768
Alternate Part Number	HEQX651C000

About the HEQX651AA

The HEQX651AA Color-Touch Display Touchscreen made for Horner Electric's QX Color-Touch OCS Series is primarily identifiable as such given a number of basic hardware components in its assembly. Some of these are its:

8 total pushbuttons
Vented chassis
Ethernet ports
LCD-based display screen

The HEQX651AA's Ethernet ports are dual-functional as they represent both RS-485 and RS-232 roles for communication. This HEQX651AA's chassis has been vented to encourage cooling through air circulation.

HEQX651AA Dimensions and Ratings

A number of basic HEQX651AA Touchscreen dimensions and voltage ratings are important to consider before a purchase here. These include the HEQX651AA's:

24 VDC voltage
1.25 A steady state current (at 24 VDC)
30 A inrush current
10.25” height
12.87” width
2.52” depth

Frequently Asked Questions about HEQX651AA

Does the HEQX651AA Touchscreen retain any certifications?

Yes. This HEQX651AA unit is both UL listed and CE certified, as per an original sticker label.

What other Horner products are commonly used with this HEQX651AA unit?

This HEQX651AA touchscreen can be used with both plastic SmartStack modules as well as a fiber optic extension system.

Reviews For HEQX651AA

Internal Review

(5.0)

The Fiber Optic Extension System commonly used alongside this HEQX651AA Touchscreen allows for potential SmartStack modules to be installed a few yards away from the unit. The eight pushbuttons appear on the bottom of the HEQX651AA due to its large size, which also can present a greater screen damage risk. Never tighten the installation screws of the HEQX651AA too much or screen damage will occur. - AX Control Lead Technician
