Does the HE-QX551AF have any local I/O?

Yes. SmartStack is defined as this HE-QX551AF's local I/O option.

Does the HE-QX551AF make use of any removable memory?

Yes. This HE-QX551AF unit has a Micro SD Memory Slot in terms of removable memory.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Horner Electric QX Color-Touch OCS HE-QX551AF

❮

❯

About | Product Specifications | FAQs

HE-QX551AF

Q: Does the HE-QX551AF have any local I/O?

Yes. SmartStack is defined as this HE-QX551AF&#39;s local I/O option.

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The HE-QX551AF 10" Operator Panel Touchscreen made for Horner Electric's QX Color-Touch OCS Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a HE-QX551AF to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: HE-QX551AF
SKU: HE-59406

Manufacturer: Horner Electric
Series: QX Color-Touch OCS

Description
Repairs
Warranty

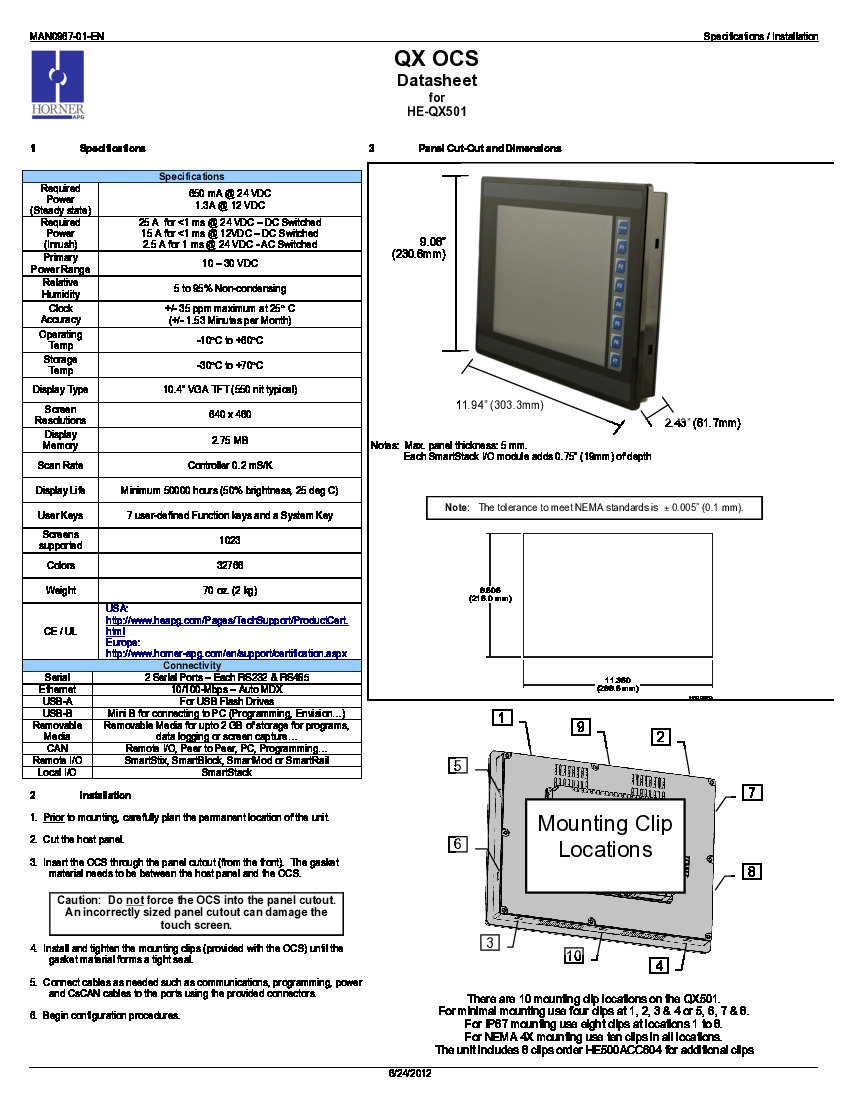

Manuals

HE-QX551AF Technical Specifications

Part Number	HE-QX551AF
Functional Description	10" Operator Panel Touchscreen
Series	QX Color-Touch OCS
Manufacturer	Horner Electric
Operating Temperature	-10°C to +60°C
Storage Temperature	-30°C to +70°C
Display Type	10.4” VGA TFT
Colors	32768
Weight	70 oz
Voltage	24 VDC (+/-10%)
Steady State Current	1.25 A @ 24 VDC
Inrush Current	1 ms - 30 A @ 24 VDC
Keypad Material	Lexan HP92
Alternate Part Number	HEQX551C000

About the HE-QX551AF

The HE-QX551AF 10" Operator Panel Touchscreen featured here was originally manufactured by Horner Electric, with a classic assembly style that includes the following basic hardware components:

LCD Display
F1-F7 and SYSTEM Pushbuttons
Video Cart Option Slot
Vented Chassis

This HE-QX551AF 10" Operator Panel Touchscreen's chassis has been vented for air circulation. Its video card slot is not provided for a critical component, but as an option that would be separate from your purchase here.

HE-QX551AF 10" Touchscreen Connections

This medium-sized touchscreen comes with a number of ports and I/O options. Some of these include its:

2 RS232 & RS485 Serial Ports
Auto MDX Ethernet Port
USB-A and USB-B Ports
SmartStix, SmartBlock, SmartMod or SmartRail Remote I/O Options

Reviews For HE-QX551AF

Internal Review

(5.0)

The HE-QX551AF 10" Operator Panel Touchscreen has numerous DIP switches in its assembly; these are included for the termination of RS-485 ports. Those RS-485 ports are commonly used for serial communications, but may need to be overridden. The MJ2 RS-485 port included in its assembly does not have hardware handshaking or programming functionality. - AX Control Lead Technician

Repair Services For HE-QX551AF

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your HE-QX551AF. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
