The HE-QX451AS 8" Industrial Color Touchscreen made for Horner Electric's QX Color-Touch OCS Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a HE-QX451AS to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: HE-QX451AS
SKU: HE-59415

Manufacturer: Horner Electric
Series: QX Color-Touch OCS

Description
Repairs
Warranty

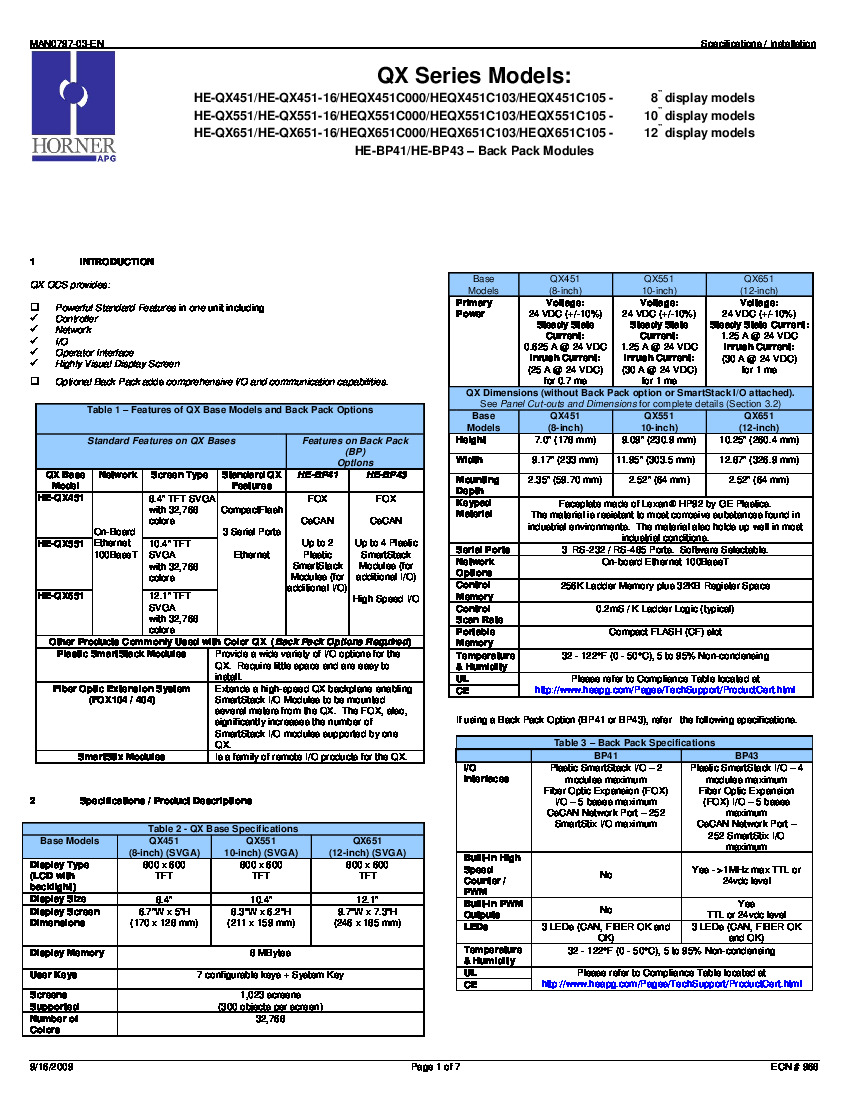

Manuals

HE-QX451AS Technical Specifications

Part Number	HE-QX451AS
Functional Description	8" Industrial Color Touchscreen
Series	QX Color-Touch OCS
Manufacturer	Horner Electric
Serial Ports	3 Ports
Display Type	800 x 600 TFT
Exact Display Size	8.4”
Display Memory	8 MBytes
Screens Supported	1,023 Screens
Back Pack LEDs	CAN, FIBER OK, OK
Fiber Optic Extension	FOX104 / 404
Ladder Control Memory	256K Ladder Memory
Portable Memory	Compact FLASH (CF) slot
External I/Os	SmartStack, SmartStix
Alternate Part Number	HEQX451C103

About the HE-QX451AS

The HE-QX451AS 8" Industrial Color Touchscreen here has a certain set of core hardware elements seen in most other QX Series offerings. Some of these are its:

8 front pushbuttons
POWER front LED
3 back female ports
Side-vented chassis
1 side mounted port

Out of the four ports mentioned, three of these can accurately be described as Ethernet ports used primarily in RS232 or RS484 communications.

HE-QX451AS Dimensions and Ratings

Several important dimensions and voltage ratings are described in the HE-QX451AS 8" Industrial Color Touchscreen unit's original hardware manuals. These include the unit's:

24 VDC voltage rating
0.625 A @ 24 VDC steady state current
25 A @ 24 VDC for 0.7 ms inrush current
178 mm height
233 mm width
59.70 mm depth (mounting)

Frequently Asked Questions about HE-QX451AS

What network options does the HE-QX451AS Industrial Touchscreen retain?

Networking is provided to the HE-QX451AS through an On-Board 100BaseT Ethernet port.

What does the HE-QX451AS 8" Industrial Color Touchscreen offer in terms of control memory?

This unit has 256K ladder memory as well as 32KB of register space.

Reviews For HE-QX451AS

Internal Review

(5.0)

The HE-QX451AS Touchscreen has an LCD display capable of showing over thirty thousand colors. With this being true, the HE-QX451AS also is able to maintain an impressive 32 - 122°F ambient temperature rating despite the liquid crystal. The unit's control scan rate is typical at 0.2mS / K Ladder Logic. - AX Control Lead Technician
