Home Horner Electric QX Color-Touch OCS HE-QX451AN

❮

❯

About | Product Specifications | FAQs

HE-QX451AN

Q: Can the HE-QX451AN withstand general wear and tear?

Yes. This HE-QX451AN&#39;s faceplate is comprised of a GE-developed plastic material designed for everyday industrial use. Its LCD screen is the most fragile component, naturally.

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The HE-QX451AN 8" Industrial Color Touchscreen from Horner Electric's QX Color-Touch OCS Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a HE-QX451AN to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: HE-QX451AN
SKU: HE-59417

Manufacturer: Horner Electric
Series: QX Color-Touch OCS

Description
Repairs
Warranty

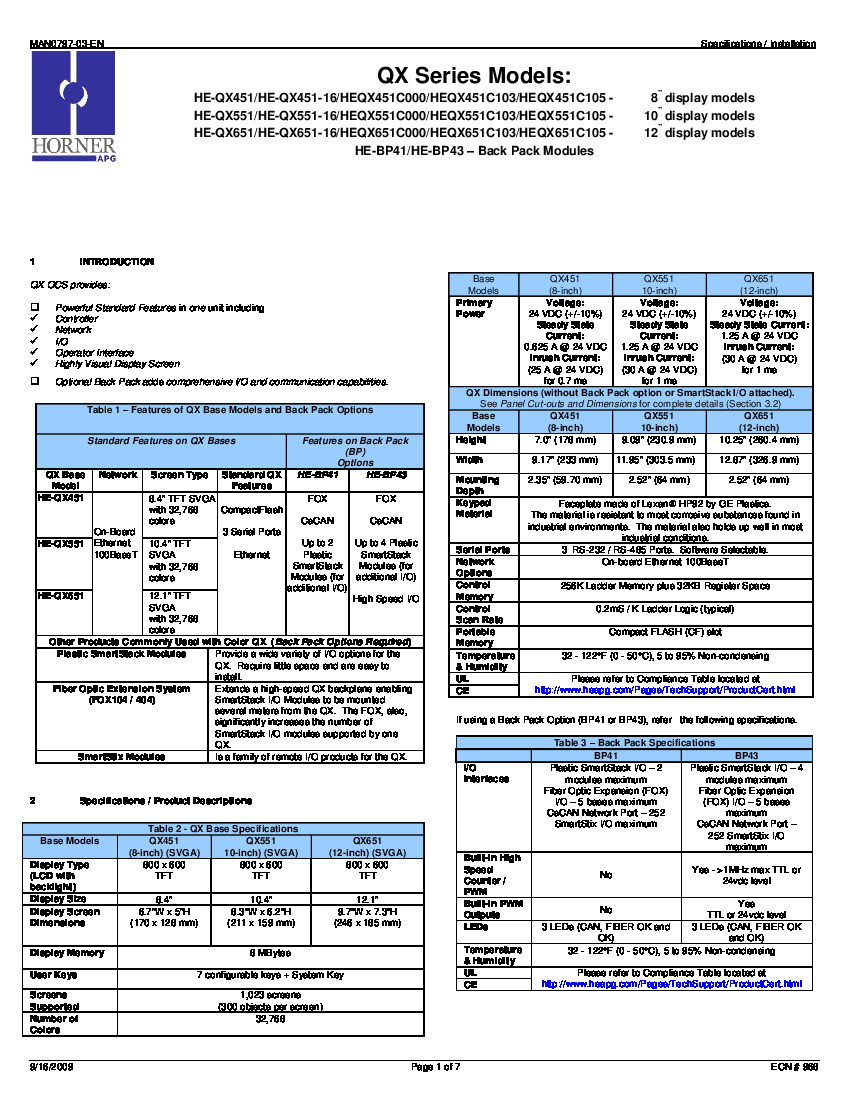

Manuals

HE-QX451AN Technical Specifications

Part Number	HE-QX451AN
Functional Description	8" Industrial Color Touchscreen
Series	QX Color-Touch OCS
Manufacturer	Horner Electric
Networking	On-Board Ethernet 100BaseT
Display Type	800 x 600 TFT
Exact Display Size	8.4”
Ambient Temperature Rating	0 - 50°C
Ambient Humidity Rating	5 to 95% Non-condensing
User Keys	7 Configurable, one SYSTEM
Extension System	FOX104 / 404
Remote I/Os	SmartStix
Control Scan Rate	0.2mS / K Ladder Logic
Alternate Part Number	HEQX451C103

About the HE-QX451AN

The HE-QX451AN 8" Industrial Color Touchscreen from Horner Electric's QX Color-Touch OCS Series comes with a standard selection of hardware components absolutely critical to its function. These include its:

8 total pushbuttons
LCD display screen
MJ1 and MJ2 ports
CN1 port

The MJ1 and MJ2 ports in the HE-QX451AN 8" Industrial Color Touchscreen's assembly are Ethernet ports, and it is likely that the module is storing a third Ethernet port on the side of the unit. The CN1 port's primary function is to provide power to the unit.

HE-QX451AN 8" Touchscreen Voltages and Dimensions

A number of voltage ratings and dimensions are important to keep in mind for this specific HE-QX451AN 8" Industrial Color Touchscreen. Some of these are its:

24 VDC voltage rating
0.625 A steady state current (at 24 VDC)
25 A inrush current (at 24 VDC)
178 mm height
233 mm width
59.70 mm depth

Frequently Asked Questions about HE-QX451AN

Can the HE-QX451AN withstand general wear and tear?

Yes. This HE-QX451AN's faceplate is comprised of a GE-developed plastic material designed for everyday industrial use. Its LCD screen is the most fragile component, naturally.

What does the HE-QX451AN have to offer in terms of serial ports?

This HE-QX451AN Industrial Touchscreen has three RS-232 / RS-485 Serial Ports; the Ethernet-style ports mentioned above.

Reviews For HE-QX451AN

Internal Review

(5.0)

Portable memory can be installed on the HE-QX451AN Touchscreen here through use of its compact FLASH or CF slot. In addition to this, both SmartStack and SmartStix modules can be installed to increase I/O counts and connectivity. The HE-QX451AN lives up to its QX Color-Touch Series assignment as it is able to process over 30,000 unique colors. - AX Control Lead Technician
