How many colors does this touchscreen support?

32,768 unique colors can be seen on the HE-QX451AL unit's advanced LCD touchsceen.

Are built-in PWM outputs available on the HE-QX451AL's back pack?

No. The BP41 back pack attached to the HE-QX451AL does not come with PWM outputs.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Horner Electric QX Color-Touch OCS HE-QX451AL

❮

❯

About | Product Specifications | FAQs

HE-QX451AL

Q: How many colors does this touchscreen support?

32,768 unique colors can be seen on the HE-QX451AL unit&#39;s advanced LCD touchsceen.

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The HE-QX451AL OCS Industrial Controller Module made for Horner Electric's QX Color-Touch OCS Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a HE-QX451AL to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: HE-QX451AL
SKU: HE-59405

Manufacturer: Horner Electric
Series: QX Color-Touch OCS

Description
Repairs
Warranty

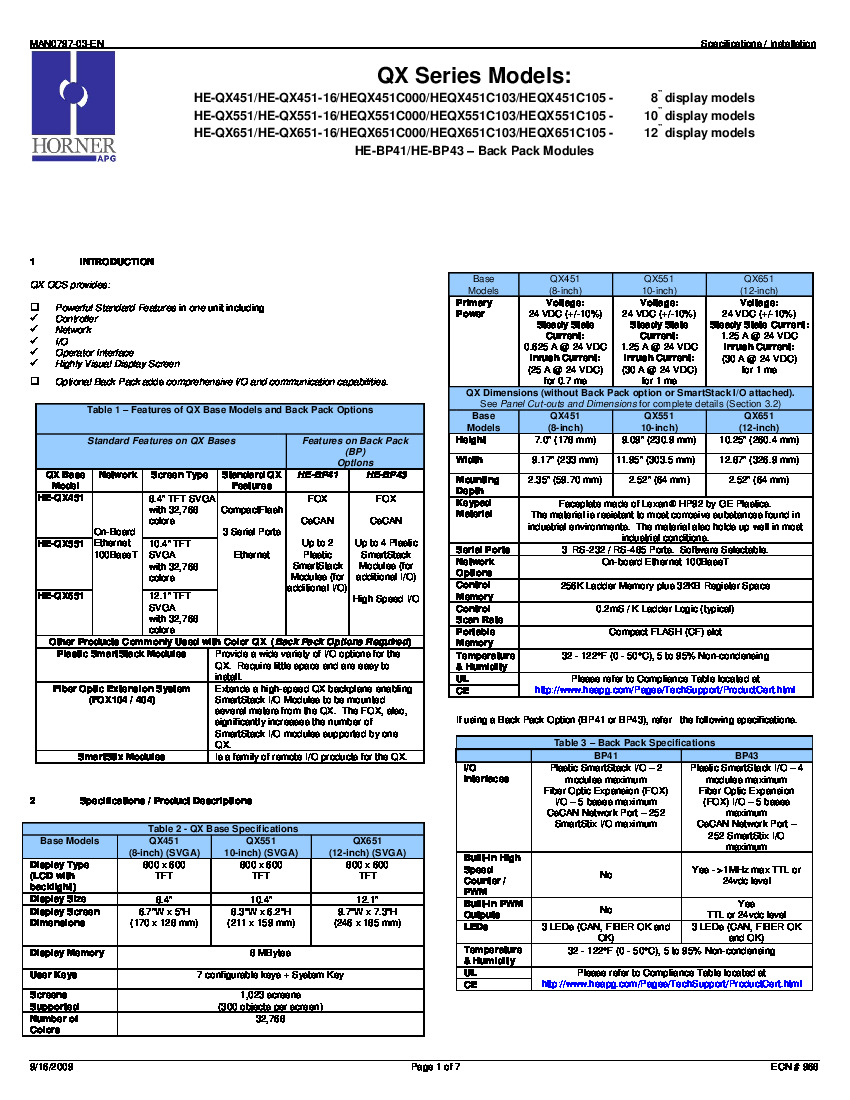

Manuals

HE-QX451AL Technical Specifications

Part Number	HE-QX451AL
Functional Description	OCS Industrial Controller Module
Series	QX Color-Touch OCS
Manufacturer	Horner Electric
Height	7.0”
Width	9.17”
Mounting Depth	2.35”
Portable Memory	Compact FLASH (CF)
Ambient Temperature Rating	32 - 122°F (0 - 50°C)
Ambient Humidity	5 to 95% Non-condensing
Back Pack Temperature Rating	32 - 122°F
Back Pack Humidity Rating	5 to 95% Non-condensing
Networking	On-board Ethernet 100BaseT
Control Memory	256K Ladder Memory
Alternate Part Number	HEQX451C000

About the HE-QX451AL

The HE-QX451AL OCS Industrial Controller Module here was originally developed by Horner Electric, with a number of core hardware components. Some of these components that are visible in its assembly would include its:

8-inch LCD Display
Vented Outer Chassis
Multiple Ethernet Ports
TX and RX Fiber Optic Ports

The HE-QX451AL OCS Industrial Controller Module has a liquid crystal or LCD style of display that is also backlit.

HE-QX451AL Display Specifications

This HE-QX451AL OCS Industrial Controller Module here's display has been carefully selected for its functional role. Some more details concerning that display are as follows:

800 x 600 TFT Display Type
8.4” Exact Display Size
6.7”W x 5”H (170 x 128 mm) Display Screen Dimensions
8 MBytes Display Memory

Eight total configurable keys have been allotted to the front interface of the HE-QX451AL Module here.

Reviews For HE-QX451AL

Internal Review

(5.0)

The HE-QX451AL Touchscreen Module comes with a back pack component designated as the BP41 style; this pack has three LEDs and a 32 - 122°F temperature range. This unit functions with the On-Board Ethernet 100BaseT network option. The 8", 10", and 12" units all have the same number of colors at over thirty thousand. - AX Control Lead Technician

Repair Services For HE-QX451AL

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your HE-QX451AL. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty
