The HE-QX451AK 8" Active Touchscreen Controller made for Horner Electric's QX Color Touch OCS Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a HE-QX451AK to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: HE-QX451AK
  • SKU: HE-59409
  • Manufacturer: Horner Electric
  • Series: QX Color-Touch OCS

HE-QX451AK Technical Specifications

Part Number HE-QX451AK
Functional Description 8" Active Touchscreen Controller
Manufacturer Horner Electric
Series QX Color-Touch OCS
Display Memory 8 MBytes
Ambient Temperature Rating 32 - 122°F
Ambient Humidity Rating 5 to 95% Non-condensing

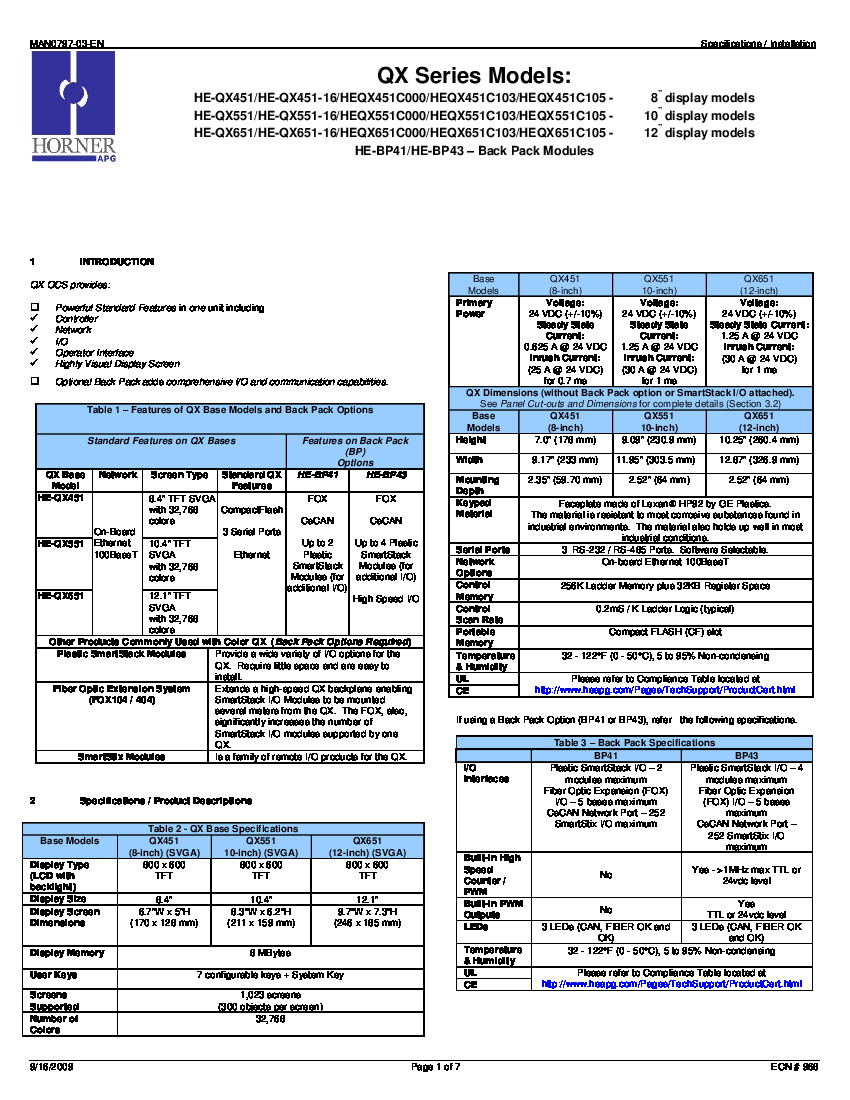

Instructional Manual MAN0798
Network On-Board Ethernet 100BaseT
Display Type 8.4” TFT SVGA
Serial Port Software Selectable
Control Scan Rate 0.2mS / K Ladder Logic
Alternate Part Number HEQX451C000

About the HE-QX451AK

The HE-QX451AK 8" Active Touchscreen Controller featured here comes with a number of standard hardware qualities for a Horner Electric touchscreen, including its:

  • Six Screw Standoff Drilled Holes
  • Vented Back Chassis
  • Eight Front Pushbuttons
  • POWER Front LED
  • Ethernet Ports

The POWER front LED is rather self-explanatory as it glows when power is provided to the touchscreen. The eight buttons are labeled F1-F7 outside of the sole SYSTEM pushbutton.

HE-QX451AK 8" Controller I/Os

Several significant ports outside of Ethernet ports can be discovered on the HE-QX451AK 8" Active Touchscreen Controller. Some of these are the:

  • MJ1 Port 1
  • MJ2 Port 2
  • CN1 Port 3

The functions of the MJ1 and MJ2 ports included RS-232 and RS-485 capabilities and additional ladder function and modem capabilities. Only the MJ1 port is able to be accessed for programming.

Frequently Asked Questions about HE-QX451AK

How many screens can the HE-QX451AK 8" HMI's base support?

The HE-QX451AK's base can support 1,023 screens, with up to 300 items per screen.

Does the back pack unit on the HE-QX451AK have any LEDs?

Yes. The CAN, FIBER OK, and OK LEDs exist on the back pack module of this HE-QX451AK Touchscreen.

Reviews For HE-QX451AK

Internal Review
(5.0)

This HE-QX451AK 8" Touchscreen Controller features SmartStix Module compatibility, if remote I/Os are deemed as necessary. Each of its seven buttons outside of the SYSTEM button mentioned before are configurable by use of the LCD display window. This HE-QX451AK also supports an amazing amount of color with up to 32,768 unique shades. - AX Control Lead Technician
