How many screens can the HE-QX451AJ be used with?

This HE-QX451AJ touchscreen module can support up to 1,023 screens.

Are any configurable keys available on the HE-QX451AJ unit?

Yes. This HE-QX451AJ 8" OCS Industrial Touchscreen's F1-F7-labeled pushbuttons are all configurable.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Horner Electric QX Color-Touch OCS HE-QX451AJ

❮

❯

About | Product Specifications | FAQs

HE-QX451AJ

Q: Are any configurable keys available on the HE-QX451AJ unit?

Yes. This HE-QX451AJ 8&quot; OCS Industrial Touchscreen&#39;s F1-F7-labeled pushbuttons are all configurable.

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

The HE-QX451AJ 8" OCS Industrial Touchscreen made for Horner Electric's QX Color-Touch OCS Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a HE-QX451AJ to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: HE-QX451AJ
SKU: HE-59418

Manufacturer: Horner Electric
Series: QX Color-Touch OCS

Description
Repairs
Warranty

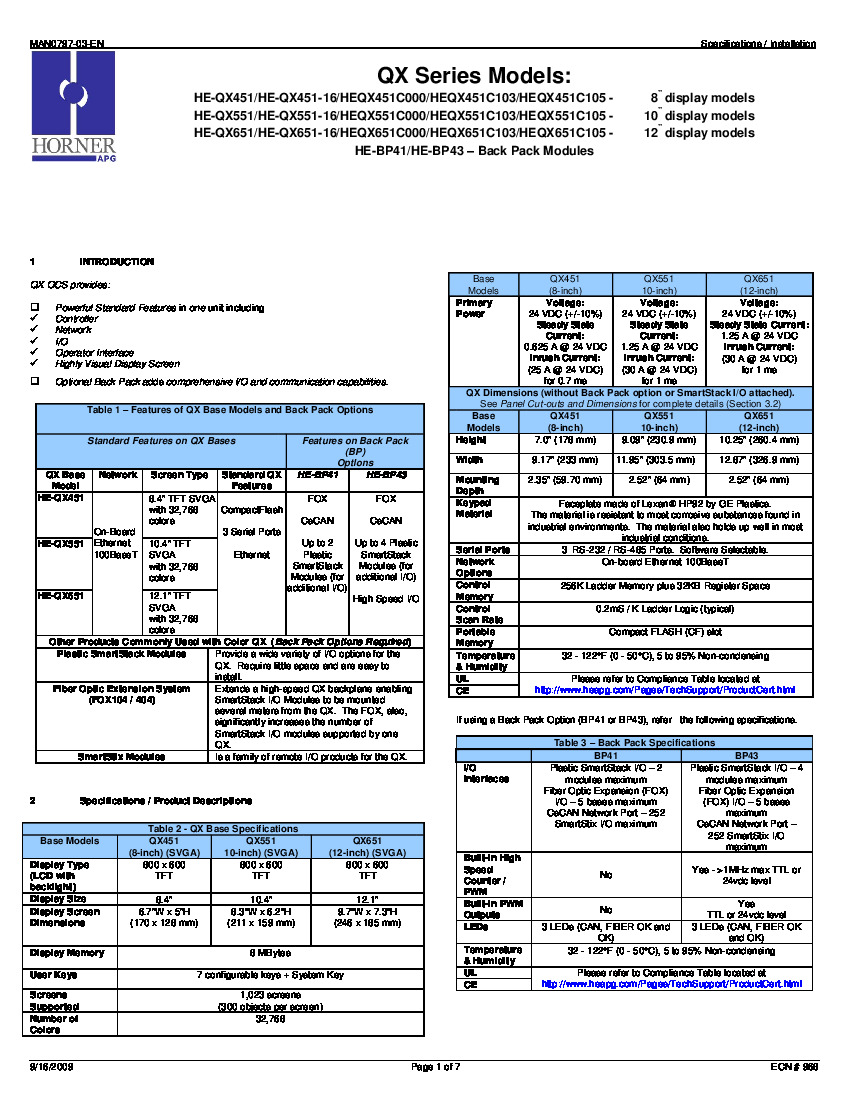

Manuals

HE-QX451AJ Technical Specifications

Part Number	HE-QX451AJ
Functional Description	8" OCS Industrial Touchscreen
Series	QX Color-Touch OCS
Manufacturer	Horner Electric
Voltage	24 VDC (+/-10%)
Steady State Current	0.625 A @ 24 VDC
Inrush Current	25 A @ 24 VDC (0.7 ms)
Portable Memory	Compact FLASH Slot
Colors	32,768
Height	7.0”
Width	9.17”
Depth (Mounting)	2.35”
Faceplate Material	Lexan HP92
Alternate Part Number	HEQX451C105

About the HE-QX451AJ

The HE-QX451AJ 8" OCS Industrial Touchscreen made for Horner Electric's QX Color-Touch OCS Series exhibits a number of hardware traits seen in most of its series' offerings, such as its:

8 pushbuttons on its front right
Liquid crystal "LCD" display screen
Numerous CN ports
MJ1 and MJ2 Ethernet ports
Vented chassis

The base protective chassis of the HE-QX451AJ 8" OCS Industrial Touchscreen has been permeated by a series of vents for critical air cooling purposes. Because of this, the HE-QX451AJ 8" OCS Industrial Touchscreen unit is not considered waterproof.

HE-QX451AJ 8" Display Qualities

The display screen is perhaps the most critical component of this modular assembly, and should be treated with care during both installation and replacement. Some details concerning this display screen specifically include its:

800 x 600 TFT display type
8.4” true display size
6.7”W x 5”H screen dimensions
8 MBytes display memory

Reviews For HE-QX451AJ

Internal Review

(5.0)

This HE-QX451AJ 8" OCS Industrial Touchscreen is a customizable display unit with three total serial ports for communication purposes. All of these ports should have additional versatility as they function in both RS-232 and RS-485 capacities. The HE-QX451AJ 8" OCS Industrial Touchscreen should not be forced into any panel cutout during installation, in order to avoid display damages. - AX Control Lead Technician
