Home Horner Electric QX Color-Touch OCS HE-QX451AG

❮

❯

About | Product Specifications | FAQs

HE-QX451AG

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

The HE-QX451AG Color-Touch OCS Touchscreen made by Horner Electric

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a HE-QX451AG to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: HE-QX451AG
SKU: HE-59416

Manufacturer: Horner Electric
Series: QX Color-Touch OCS

Description
Repairs
Warranty

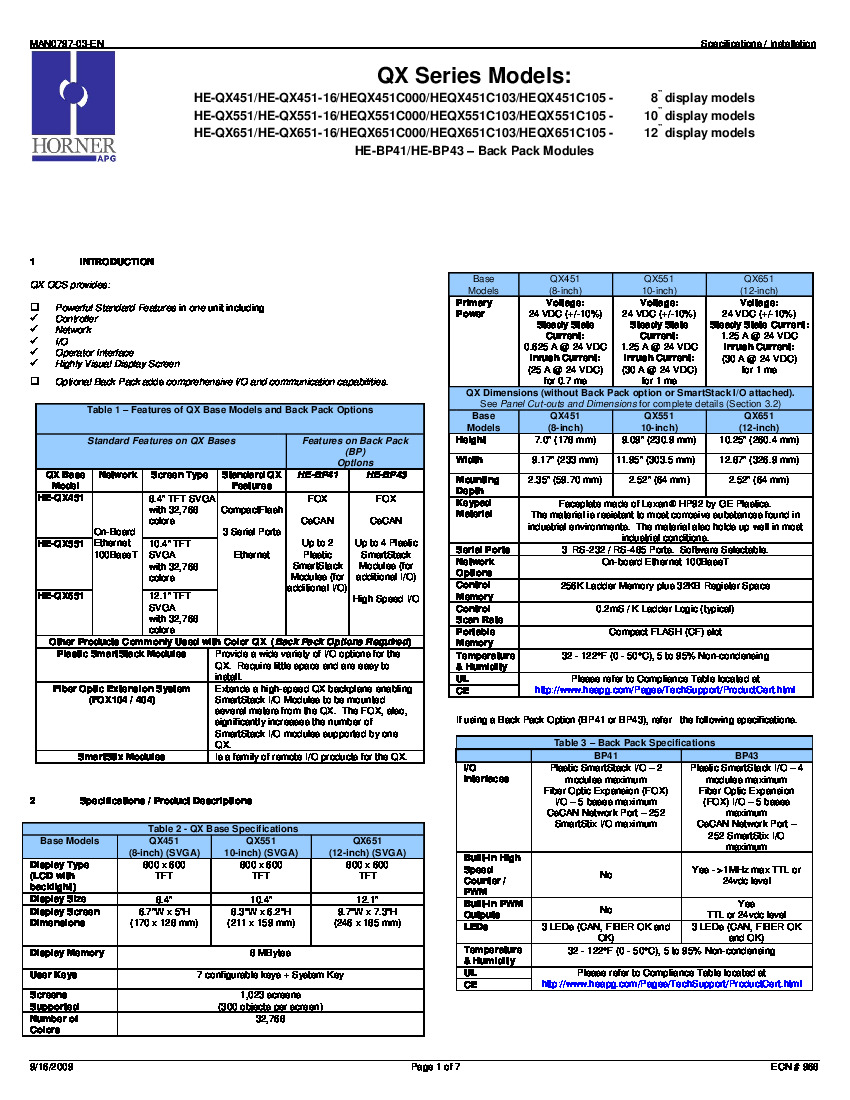

Manuals

HE-QX451AG Technical Specifications

Part Number	HE-QX451AG
Functional Description	Color-Touch OCS Touchscreen
Series	QX Color-Touch OCS
Manufacturer	Horner Electric
Height	7.0”
Width	9.17”
Depth	2.35”
Ambient Temperature Rating	32 - 122°F
Ambient Humidity Rating	5 to 95% Non-condensing
Voltage	24 VDC (+/-10%)
HazLoc Certification	Non-HazLoc
Power Port Torque	4.5 – 7 Lb-In
Termination Method	DIP Switches
Ethernet Port Modes	Half or Full Duplex
Alternate Part Number	HEQX451C103

About the HE-QX451AG

The HE-QX451AG Color-Touch OCS Touchscreen from Horner Electric is built with a standard selection of hardware components and component specifications. Some of the visible components in its assembly include its:

Eight front pushbuttons
Vented plastic chassis
Video card option slot
Three Ethernet ports

Two of the HE-QX451AG Color-Touch OCS Touchscreen's Ethernet ports are supplied on the back of the unit, while one is positioned on the right-hand side. Each should be accompanied by a printed label for your convenience.

HE-QX451AG Color-Touch Display Characteristics

The LCD or liquid crystal display present in the assembly of this HE-QX451AG Color-Touch OCS Touchscreen is so sophisticated that it comes with its own set of specifications and ratings in original Horner manuals. Some of these include the display's:

800 x 600 TFT backlit display type
8.4” exact display size
6.7”W x 5”H display dimensions
8 MBytes display memory

Frequently Asked Questions about HE-QX451AG

What is the 8 HE-QX451AG Touchscreen Display's keypad made of?

The entire faceplate of the unit here is made up of a Lexan HP92 plastic developed by General Electric.

Does this HE-QX451AG display have any portable memory options?

Yes. One compact FLASH slot exists on the HE-QX451AG for portable memory purposes.

Reviews For HE-QX451AG

Internal Review

(5.0)

In terms of control memory, the HE-QX451AG Touchscreen Module here makes use of 256K Ladder Memory but also boasts an impressive 32KB of Register Space. Seven of the device's eight total keys are customizable through the display diagnostics menu. Consistent use of the HE-QX451AG unit is possible in temperatures up to 122 degrees Fahrenheit. - AX Control Lead Technician
