What serial port options are there on the HE-QX351CP?

This HE-QX351CP touchscreen features both RS-232 and RS-485 serial ports.

What type of Ethernet port is offered to the HE-QX351CP?

This HE-QX351CP Touchscreen has an Auto MDI/MDI-X Ethernet port, specifically.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Horner Electric QX Color-Touch OCS HE-QX351CP

❮

❯

About | Product Specifications | FAQs

HE-QX351CP

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The HE-QX351CP OCS Controller Touchscreen made for Horner Electric's QX Color-Touch OCS Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a HE-QX351CP to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: HE-QX351CP
SKU: HE-59410

Manufacturer: Horner Electric
Series: QX Color-Touch OCS

Description
Repairs
Warranty

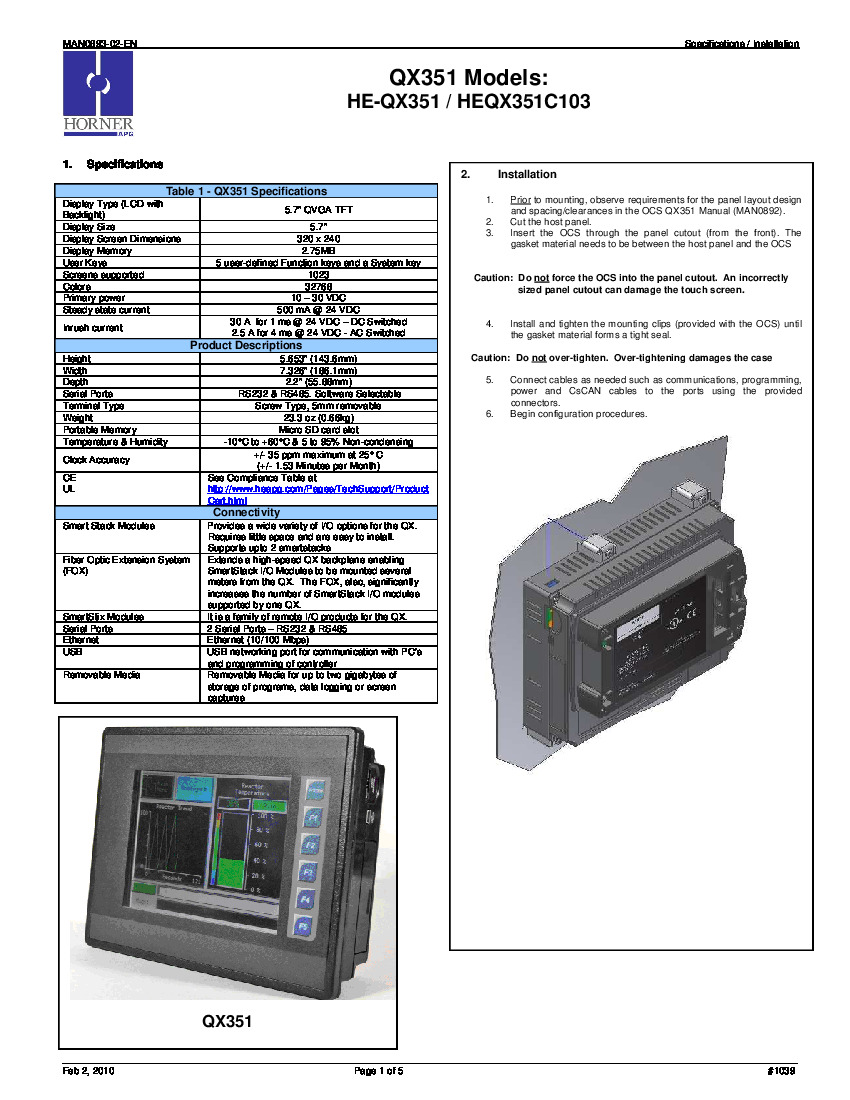

Manuals

HE-QX351CP Technical Specifications

Part Number	HE-QX351CP
Functional Description	OCS Controller Touchscreen
Series	QX Color-Touch OCS
Manufacturer	Horner Electric
Ambient Temperature Rating	-10°C to +60°C
Ambient Humidity Rating	95% Non-condensing
Colors	32768
Removable Memory	Horner P/N HE-MC1
Serial Ports	RS232, RS485
Ethernet Port Connector	Shielded RJ-45
Ethernet Cable Type	CAT5 UTP
Port	Auto MDI/MDI-X
Termination Status	Un-Terminated
Alternate Part Number	HEQX351C103

About the HE-QX351CP

The HE-QX351CP OCS Controller Touchscreen featured here is a Human Machine Interface or HMI Touchscreen with a number of functionality-critical hardware components. Some of these crucial components include its:

Six Front Pushbuttons
DIP Switches
Ethernet Ports
Memory Card Slot

Five out of this HE-QX351CP's six total pushbuttons on its front interface are configurable via the display window; these are labeled as F1-F5.

HE-QX351CP Display Details

As the HE-QX351CP is essential halfway made up of a display touchscreen, there are a few important specifications relative to this part of the unit. These include the display's:

5.7” QVGA TFT Display Type
5.7” Display Size
320 x 240 Screen Dimensions
2.75MB Display Memory

Reviews For HE-QX351CP

Internal Review

(5.0)

The HE-QX351CP OCS Controller Touchscreen has separate ports for its CAN Network and its main power source. It is important to rig the HE-QX351CP's power connector to earth ground for voltage dissipation. The four DIP switches in its assembly are conveniently placed between two central Ethernet ports. Call to quote a repair or replacement. - AX Control Lead Technician
