Home Horner Electric QX Color-Touch OCS HE-QX351BH

❮

❯

About | Product Specifications | FAQs

HE-QX351BH

Q: Has this HE-QX351BH Touchscreen been NEMA rated?

Yes. This HE-QX351BH unit&#39;s protection has a NEMA rating of NEMA 4x.

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

The HE-QX351BH OCS Operator Touchscreen Interface made for Horner Electric's QX Color-Touch OCS Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a HE-QX351BH to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: HE-QX351BH
SKU: HE-59412

Manufacturer: Horner Electric
Series: QX Color-Touch OCS

Description
Repairs
Warranty

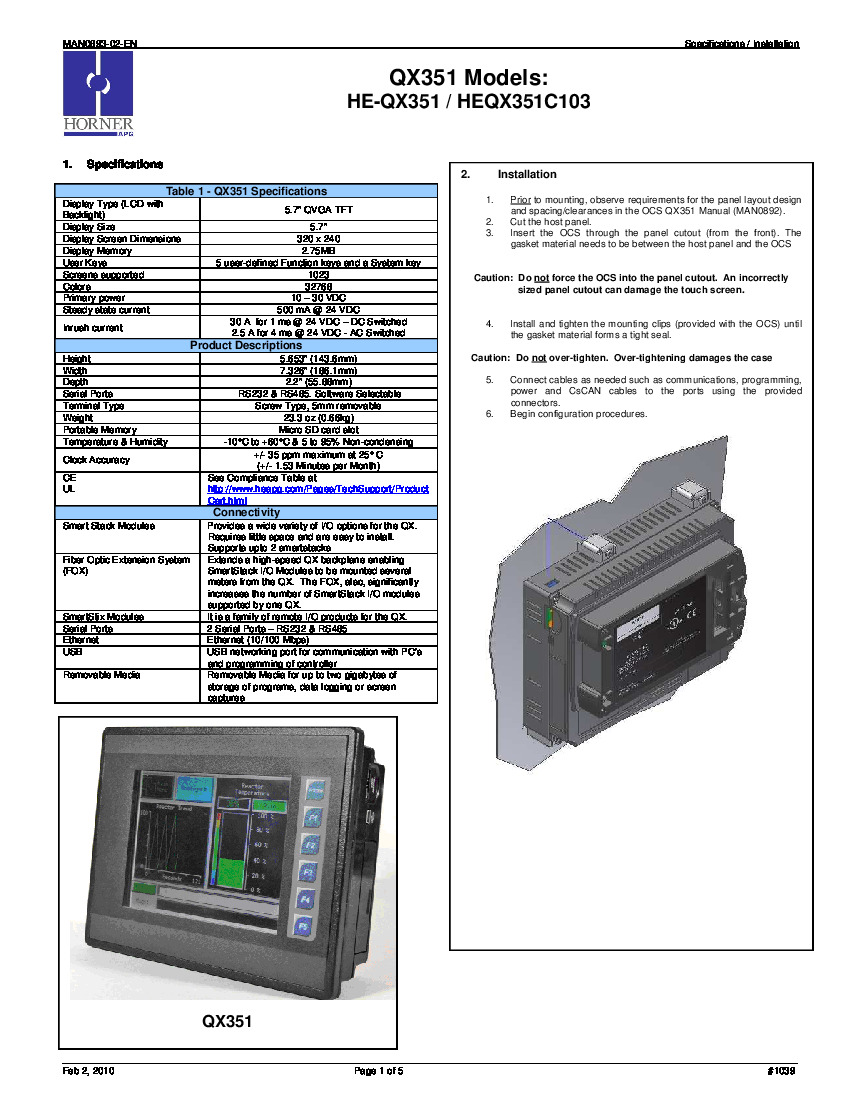

Manuals

HE-QX351BH Technical Specifications

Part Number	HE-QX351BH
Functional Description	OCS Operator Touchscreen Interface
Series	QX Color-Touch OCS
Manufacturer	Horner Electric
Display Type	5.7” QVGA TFT
Display Size	5.7”
Screen Dimensions	320 x 240
Display Memory	2.75MB
Screens Supported	1023 Screens
User Keys	5 Functions Keys, one System Key
Primary Power	10 – 30 VDC
Steady State Current	500 mA @ 24 VDC
Ethernet	10/100 Mbps
Alternate Part Number	HEQX351C103

About the HE-QX351BH

The HE-QX351BH OCS Operator Touchscreen Interface featured here comes with a slew of standard hardware features immediately noticeable upon visual inspection. Some of these would be its:

Series of 6 Pushbuttons
Liquid Crystal (LCD) Display
LAN Ethernet Port
4 DIP Switches
RX and TX Fiber Ports

Two additional Ethernet ports are available to the HE-QX351BH OCS Operator Touchscreen Interface unit, marked as MJ1 and MJ2. Five out of the HE-QX351BH Module's six total pushbuttons are configurable via its LCD Display.

HE-QX351BH-Specific Details

The HE-QX351BH OCS Operator Touchscreen Interface of course comes with its own set of unit-specific hardware specifications, such as its:

5.653” Height
7.326” Width
2.2” Depth
RS232 & RS485 Serial Ports
Micro SD Card Slot

The Micro SD Card Slot is this unit's only option in terms of portable memory

Frequently Asked Questions about HE-QX351BH

Can additional external I/O options be provided for this HE-QX351BH Controller?

Yes. This HE-QX351BH module can accept numerous Smart Stack Modules for additional I/O connections.

Has this HE-QX351BH Touchscreen been NEMA rated?

Yes. This HE-QX351BH unit's protection has a NEMA rating of NEMA 4x.

Reviews For HE-QX351BH

Internal Review

(5.0)

The HE-QX351BH Operator Touchscreen Interface here has been both UL listed and CE certified. In addition to this, this HE-QX351BH unit is customizable given its selection of five user-selected pushbuttons and its ability to accept external I/O modules. This unit has the capability to display an impressive 32768 colors too. - AX Control Lead Technician

Repair Services For HE-QX351BH

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your HE-QX351BH. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year
