How many screens can be supported by this unit?

The HE-QX351BG Touchscreen Module can support up to 1023 screens in total.

Is this HE-QX351BG unit heavy?

No. As one of the smaller products released for Horner's QX Series here, the HE-QX351BG Touchscreen only weighs in at 23.3 oz.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Horner Electric QX Color-Touch OCS HE-QX351BG

❮

❯

About | Product Specifications | FAQs

HE-QX351BG

Q: Is this HE-QX351BG unit heavy?

No. As one of the smaller products released for Horner&#39;s QX Series here, the HE-QX351BG Touchscreen only weighs in at 23.3 oz.

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

The HE-QX351BG QX Color Touchscreen from Horner Electric's QX Color-Touch OCS Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a HE-QX351BG to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: HE-QX351BG
SKU: HE-59414

Manufacturer: Horner Electric
Series: QX Color-Touch OCS

Description
Repairs
Warranty

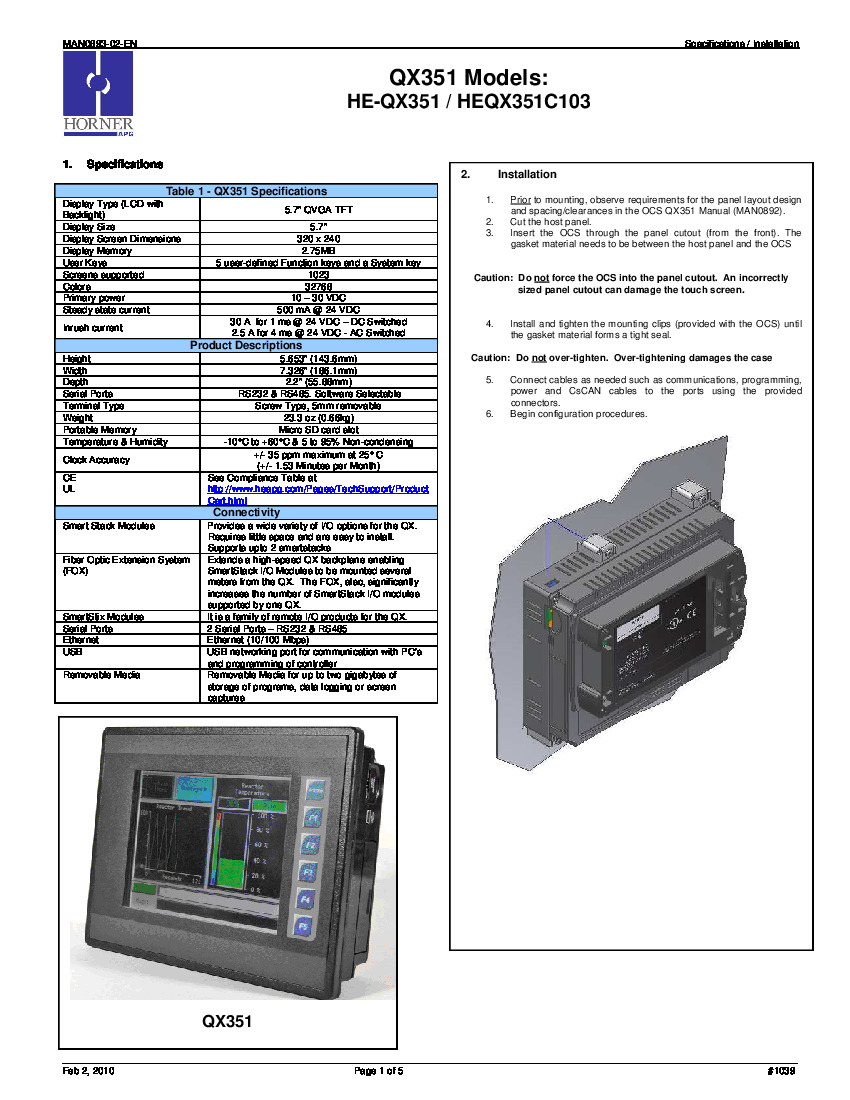

Manuals

HE-QX351BG Technical Specifications

Part Number	HE-QX351BG
Functional Description	QX Color Touchscreen
Series	QX Color-Touch OCS
Manufacturer	Horner Electric
Colors	32768
Primary Power	10 – 30 VDC
Steady State Current	500 mA @ 24 VDC
Height	5.653”
Width	7.326"
Depth	2.2”
Serial Ports	RS232 & RS485
Terminals	5mm Removable Screw-Type
Clock Accuracy	+/- 35 ppm Maximum (25° C)
Removable Media	Up to 2 GB
Alternate Part Number	HEQX351C103

About the HE-QX351BG

The HE-QX351BG QX Color Touchscreen featured here was originally developed for Horner Electric's Color-Touch OCS product series, and as such, features a number of critical but standard hardware components, such as its:

Six front pushbuttons
Multiple Ethernet ports
SD card slot
LCD display
DIP switches

The DIP Switches are not the only set of customizable hardware available to this HE-QX351BG QX Color Touchscreen unit, as five of its six total pushbuttons can also be configured through use of its LCD display.

HE-QX351BG QX Color Touchscreen Display

While generally classifiable as an LCD Display, the front touchscreen to this HE-QX351BG QX Color Touchscreen unit comes with a further set of specifications, such as its:

QVGA TFT display type
5.7” display size
320 x 240 display screen dimensions
2.75MB display memory

Reviews For HE-QX351BG

Internal Review

(5.0)

The 23.3 oz HE-QX351BG Touchscreen here has Screw Type, 5mm removable terminals for ease of maintenance. It should be noted that overtightening these screws may lead to cracks or further damage to the display. Portable memory is ensured through a Micro SD card slot. - AX Control Lead Technician

Repair Services For HE-QX351BG

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your HE-QX351BG. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
