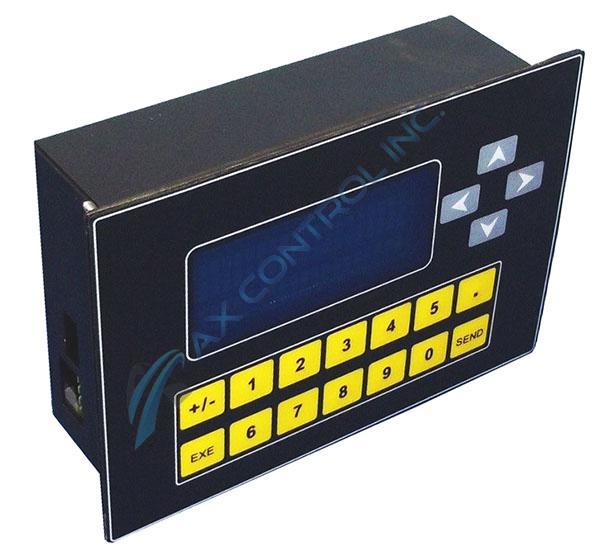

Horner Electric HE693OIU190 Operator Interface Unit Display with 2 Female Ports Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a HE693OIU190 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: HE693OIU190
  • SKU: HE693OIU190HE
  • Manufacturer: Horner Electric
  • Series: Horner HE693OIU

HE693OIU190 Technical Specifications

Manufacturer Horner
Series GE Fanuc Series 90-30
MPN HE693OIU190
Type Operator Interface Unit

About the HE693OIU190

HE693OIU190 is an Operator Interface Unit that is manufactured by Horner APG for the HE693OIU series. This interface contains a keypad and a mounting plate, a main circuit board, a vacuum fluorescent display circuit board, a Genius Network Interface (uGENI) Board, and a steel rear cover. The power requirements are 12.5-32 VDC, 7.5 watts power maximum. There is no non-volatile memory on this unit. The mounting enclosure is a NEMA 4-12. Additional communications on this unit exist in the standard RS232 for PowerMate. The calendar clock on the interface unit can store the data for minutes, hours, days of the week, months, dates, and years. The update intervals for the clock are once at power-up, once per minute, once per hour, and once per day.

There are a number of bases on the operator interface unit. The maximum length for the ± Decimal base is 6 (5 digits plus the sign). The maximum length for the + Decimal base is 5. The maximum length for the Hexadecimal base is 4. The maximum length for the Binary base is 16. The maximum length for the ± Double base is 9 (8 digits plus the sign). The maximum length for the + Floating Point base is 9 (8 digits plus the decimal point). The maximum length for the ± Floating Point base is 10 (8 digits plus the decimal point and the sign). The maximum length for the Text Table base is one display line. The maximum length for the ASCII base is one display line.

More information about this part can be sourced through GE FANUC plc manuals.

Frequently Asked Questions about HE693OIU190

What is the function of the HE693OIU190?
The HE693OIU190 is a Operatior Interface Unit within the GE Fanuc Series 90-30. The HE693OIU190 works to send directions to the PLC, receive data from the PLC, and moniter changes in the machine.
What components make up the HE693OIU190?
The HE693OIU190 consists of a keypad, main circit board, vacuum fluorescent display, genius network interface (uGENI), and a cover made of steel.
What program allows the Operator Interface Unit to communicate with the programmable logic controller?
The HE693OIU190 is using Genius Network Interface (uGENI) and standard RS232 to communicate with the PLC.

Repair Services For HE693OIU190

Type Lead Time Price Action
Repair Service 1-2 weeks $212

Our highly skilled technicians can repair your HE693OIU190. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
