HE800GCM911

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
Isolated SmartStack

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a HE800GCM911 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

HE800GCM911

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
Isolated SmartStack

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a HE800GCM911 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

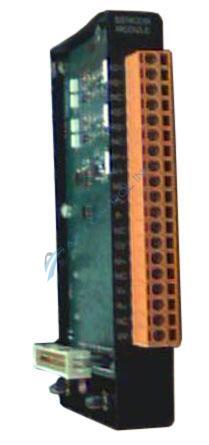

HE800GCM911 is a mixed input and output module that is manufactured by Horner APG. The module has 4 input channels. Channel 1 has a ±10 VDC input range. Channel 2 has a 100 Hz - 15 KHz, 1-25 VAC input range. Channel 3 has a 0-35 VDC input range. Channel 4 has a 0-1000 Ω input range. The resolution for channels 1 and 3 is 14 bits. The resolution for channel 2 is 1 Hz. The resolution for channel 4 is 12 bits. The input impedance for channel 1 and 3 is 1 MΩ. The input impedance for channel 2 is 15 KΩ. The input impedance for channel 4 is 1 KΩ. The maximum error at 25° for channel 1 and 3 is 0.1%. The maximum error at 25° for channel 2 is 10 Hz. The maximum error at 25° for channel 4 is 1.5 Ω. The isolation voltage (channel to channel and channel to ground) for channel 1 is 1000 VRMS. There is no external power supply. The additional error for temperatures other than 25° is 0.003%/°C.

The module has 3 output channels. Channel 1 has an output range of ±10 VDC. Channel 2 has an output range of ±10 VDC. Channel 3 has an output range of 500 Hz PWM, 5V p-p, 0-100%. The resolution is 14 bits, the output current is 50 mA, and the load capacitance is 0.01 µF (max). The maximum error at 25° is 0.1%. The PLC update rate is set by the PLC scan time.

The required power (steady state) is 1.8W (75 mA @ 24 VDC), and the required power (inrush) is 600 mA @ 24 VDC for 200 µS. The terminal type is a removable spring clamp. The weight of this mixed module is 9.5 oz (270 g). The operation temperature must remain between 0-60° Celsius.
