Product Description

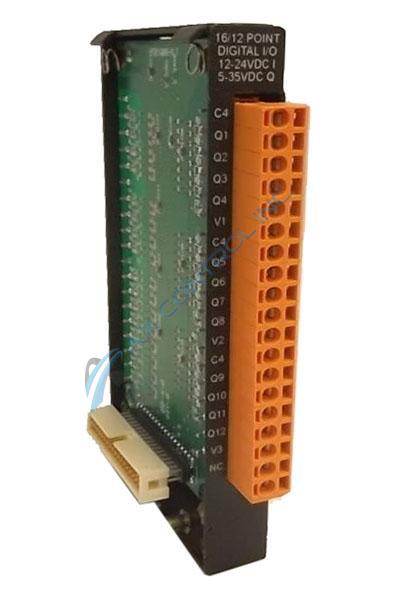

HE800DIQ711 is a SmartStack HE800 DC Input/DC Output Module that is manufactured by Horner APG. The required power inrush is negligible, and the required power steady state is 1.18 W (49.5 mA @ 24 VDC). This module weighs 256 grams and is UL listed at Operating Temperature Code T4A. It may be helpful to remember that most applications use the default configuration settings on the module. When it is necessary to change the default states of the module outputs, use the Module Setup menu on the Cscape software. The I/O Map tab provides information about the I/O registers. The user cannot edit the I/O map.

There are 16 DC inputs on this module, as well as 3 input commons. The input voltage range is 12-24. 35 VDC (maximum) is the peak voltage, and 10K ohms is the input impedance. The input characteristics are bidirectional. 9 VDC is the ON voltage level and 3 VDC is the OFF voltage level. 1 mA is the minimum on current, and 200 μA is the maximum off current.

There are 12 DC outputs on this module, as well as one output commons. There is short circuit output protection on this module, and the ON voltage level is 1.5 VDC (max). The maximum load current per channel is 0.5 A (max). 5-35 VDC is the operating voltage. The output type is sinking / 10K pull-up. The output characteristics are current sinking. The maximum load current per channel is 0.5 A (maximum). The maximum inrush current is 600 mA/channel.
