Product Description

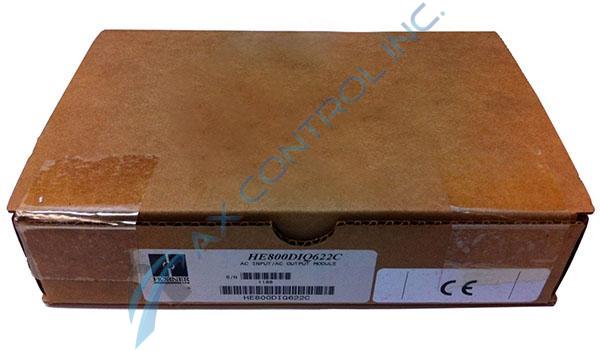

HE800DIQ622 is a SmartStack HE800 AC Input/AC Output Module that is manufactured by Horner APG. In a steady state, the required power is 0.06 (2.75 @ 24 VDC). During inrush, the required power is negligible. The relative humidity for this module should be 5-95% non-condensing. The UL Operating Temperature Code is T4A. The module is CE certified.

This module has 8 AC inputs and 1 common. The input impedance is 0.01μF +10K, and the channel to bus isolation is 500 VDC. The minimum on current is 1 mA. The maximum off current is 200μA. The OFF to ON response is 50 ms. The ON to OFF response is 50 ms. The ON voltage level is 70 VAC (min), and the OFF voltage level is 30 VAC (max). The AC frequency is 50/60 HZ. The input voltage range is 120-160 VAC. The peak voltage is 160 VAC.

There are 6 relay outputs on this module, as well as 2 output commons. The coil voltage is 18-30 VDC and the contact voltage is 250 VAC / 30 VDC (max). The ON voltage drop is 0.1 V (max). The fuses used for this module must be 10A common. The maximum load current (resistive) per channel is 3A. The maximum leakage current is 5μA. The maximum inrush current is 3A per channel. There is no minimum load. The typical OFF to ON response is 6 ms, and the typical ON to OFF response is 0.3 ms. There are 6 status indicators on the module; one for each of the 6 relay outputs. The channel to channel and channel to common isolation is 500 VDC.
