HE800ADC010

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (6)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (6)
  • Click a star to rate this product
12 Bit 2 Channel Analog I/O

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a HE800ADC010 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: HE800ADC010
  • SKU: HE800ADC010HE
  • Manufacturer: Horner Electric
  • Series: HE800

About the HE800ADC010

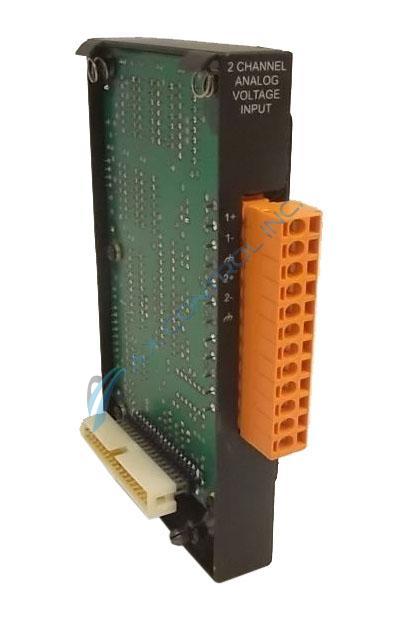

The HE800ADC010 module is an Analog Input Module that was created and produced by Horner APG to be part of the SmartStack subseries of the HE800 series.

The HE800ADC010 analog input module has two channels for the customer’s use. The input ranges, which includes over ranges are +/-10.23 VDC; +/-5.11, 0 - +10.23, and also 0 - +5.11. The resolution of the HE800ADC010 analog input module is 12 bits. Additionally, the input impedance of the HE800ADC010 analog input module is 10 MΩ <12 VDC, or it can be 6 MΩ >12 VDC Nom. The maximum error rate when at 25 degrees Celsius is rated at 0.05% full scale. The required power, at a steady state, of the HE800ADC010 module is .09 W (4.1 mA at 24 VDC) and the maximum over voltage is 350 VDC. The required power inrush of the HE800ADC010 module is negligible and it does come with digital filtering.

The HE800ADC010 analog input module does not include its own external power supply, but it does have a successive approximation convertor type. The operating temperature must be set at a range between 0 degrees Celsius and 95 degrees Celsius. In addition, the relative humidity must be set at a range between 5% and 95% non condensing. Lastly, the conversion time (meaning the PLC update rate) is set by the PLC scan time.

Without including any of AX Control’s packaging materials, the HE800ADC010 analog input module is just about 0.56 lbs. or 0.26 kg. AX Control’s packaging materials are built so that your package arrives to you safe and sound.

Repair Services For HE800ADC010

Type Lead Time Price Action
Repair Service 1-2 weeks $270

Our highly skilled technicians can repair your HE800ADC010. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

HE800ADC010 Manuals, White Papers, Data Sheets, and Troubleshooting
