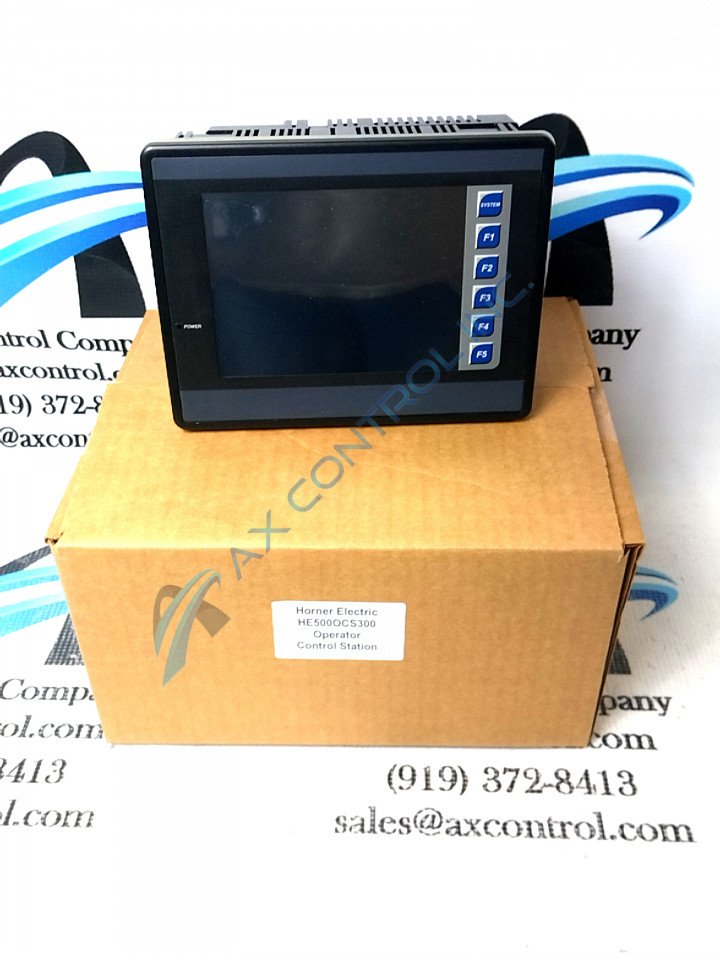

Horner Electric HE 500 Operator Control Station HE500OCS300

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a HE500OCS300 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: HE500OCS300
  • SKU: HE500OCS300HE
  • Manufacturer: Horner Electric
  • Series: HE500 Series

Product Description

HE500OCS300

The HE 500 series of Operator Control Station is a product of Horner Electric, though the company is now labeled as Horner APG. The Operator Control Station is an all in one product, built with a logic controller module, an operator interface, and a includes a set of Input and Output modules.

The OSC300 designated models of these products add the capabilities of a full color touch screen to this product line. There is also a new Input and Output system that is designed to expand the number of modules by allowing the Input and Output SmartStack Expansion Module to be remotely mounted from the display. This OSC unit is intended to reduce the installation cost, as well as the development time and amount of required hardware with the compact, simplistic design.

For processing, the HE500OCS300 model is equipped with a dual processor combination, which offers a high speed, high quality, intense performance for both the controller and operator interface functionality.

The operator interface of this model features a full color setup of the graphical display. The unit equipped to process and render the image is a video graphic array, in an image resolution of 320 x 240 pixels. There is a 5.7 inch, resistive touch screen, with a series of integrated keys. There are a total of 6 keys, with one of them as programmable, while the five others are configurable.

The upgraded Input and Output system in the HE500OCS300 model are able to remotely accomodate 20 of the SmartStack Expansion modules.

Repair Services For HE500OCS300

Type Lead Time Price Action
Repair Service 1-2 weeks $351

Our highly skilled technicians can repair your HE500OCS300. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
