UR-TLB

Q: What is the distance for this Relay Module&#39;s RS422 interface?

The UR-TLB&#39;s RS422 interface has a usual distance of 1200m.

4.86 (7)
Click a star to rate this product

4.86 (7)
Click a star to rate this product

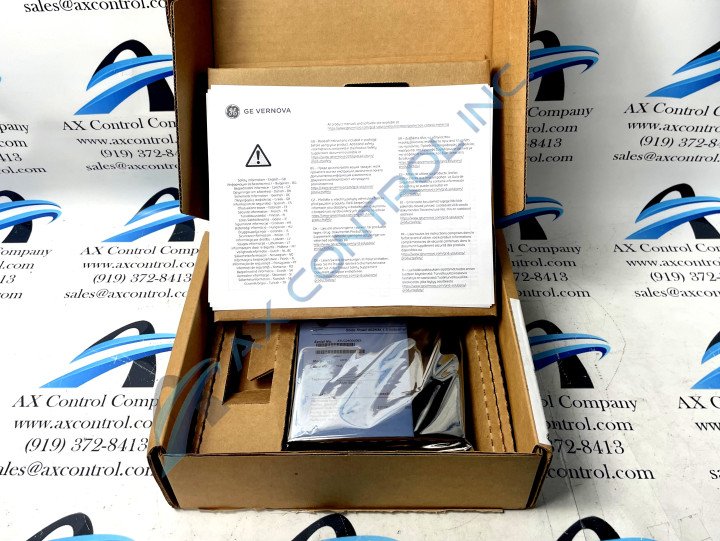

The UR-TLB Low Voltage Universal Relay made for GE Vernova's UR Universal Relay Series

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a UR-TLB to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: UR-TLB
SKU: GM-59507

Manufacturer: GE Multilin
Series: UR Series Universal Relays

Description
Repairs
Warranty
Manuals

UR-TLB Technical Specifications

Functional Part Number	UR-TLB
Functional Description	Low Voltage Universal Relay
Series	UR Series Universal Relays
Manufacturer	GE Multilin
RS422 Distance	1200m
G.703 Distance	100m
10Base-T	RJ45 connector
Reporting Rate Multiplier	1, 2, 5, 10, 12, 15, 20, 25, 30, 50, 60 or 120x
Fault Location Method	Single-ended
Average Curve Time	0.00 to 600.00
Bus Differential Pickup	0.050 to 6.000 pu
Memory Duration	5 to 25 cycles

About the UR-TLB

The UR-TLB Low Voltage Universal Relay made for GE Vernova's UR Universal Relay Series comes with a series of Input and Output ratings that are important to adhere to. Some of these include its:

1 to 50000 A CT Rated AC Primary
1 A or 5 A by connection CT Rated AC Secondary
1000 W Dry Contact Input Maximum
100 mA DC at 48 V DC Control Power Output Capacity
±300 Vpk Control Power Output Maximum
approx. 80 to 100 mA Threshold Current

It should be noted that the aforementioned Threshold Current rating pertains specifically to this unit's FORM-A Current Monitor.

UR-TLB Fiber Communication Losses

The below table identifies a number of the UR-TLB Relay's identifiable Fiber Losses:

820 nm multimode	3 dB/km
1300 nm multimode	1 dB/km
1300 nm singlemode	0.35 dB/km
1550 nm singlemode	0.25 dB/km
Splice losses	One splice every 2 km, at 0.05 dB loss per splice

The shielded twisted-pair interface options for this unit include the RS422 and the G.703 interfaces.
