Part of the Universal Relay series, General Electric Multilin's F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX F35 includes 6 Form-A outputs and 4 digital inputs.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX
  • SKU: F35G00HCHF8HH6PM8HP6NU8HWXXGM
  • Manufacturer: GE Multilin
  • Series: UR Series Universal Relays

F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX Technical Specifications

# of User-Programmable LEDs 48 plus trip and alarm
FlexLogic Lines of Code 1024
Oscillography Data AC input channels; element state; contact input state; contact output state
Pollution Degree II
RMS Voltage Accuracy ±0.5% of reading from 10 to 208 V
RTD Inputs Sensing Current 5 mA
Volt Withstand 2 × Highest Nominal Voltage for 10 ms

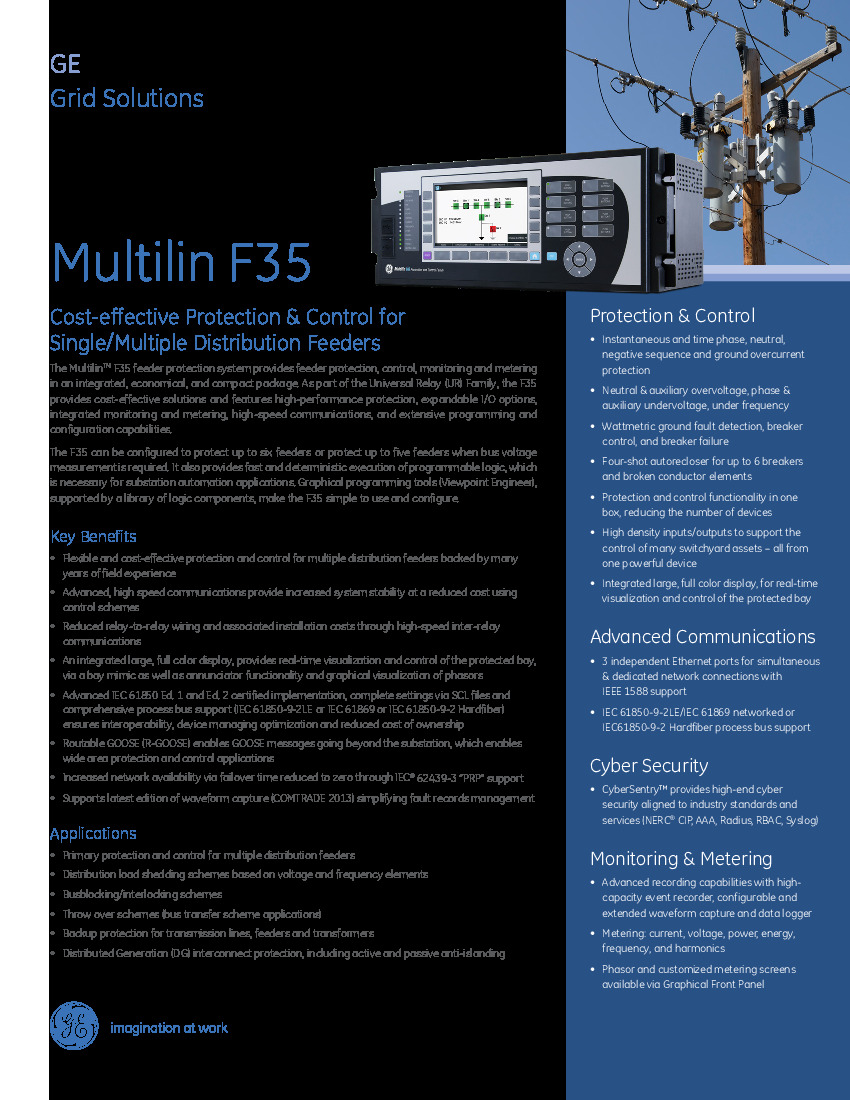

Product Description

While multiple feeder management can involve a complex array of extra equpiment and connections, General Electric Multilin’s F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX offers monitoring, metering, and protection of multiple feeders in one compact unit. This version of the F35 includes 6 Form-A outputs and 4 digital inputs. More information on the relay’s order code can be found in Multilin’s 1601-0106-AE1 user manual.

GE Multilin’s F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX has a variety of practical benefits for users looking to install the unit into an existing system. The unit offers cutting-edge, high speed communications that reduce costs and increase system stability; its peer to peer communications also reduce wiring and accompanying installation costs. A Generic Object Oriented Substation Event (GOOSE) communication system replaces traditional hardwiring that facilitates data transfer; this system groups data into data seats and transmits it wirelessly within 4 milliseconds, and can be configured within the relay’s settings.

The F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX can be mounted alone or in tandem with other UR relays. When used in conjunction with other Universal Relays, the unit can use direct I/O messaging to share digital information in a high-speed fashion. When used alongside other UR units, the system defaults to a MASTER/SLAVE logic in which one relay acts as the central controller and directs communications with slave units in the logic scheme.

The relay comes equipped with multiple cyber security measures that adhere to industry standards (NERC® CIP, AAA, Radius, RBAC, Syslog) and discourage unauthorized access to the relay and the EnerVista UR software program.

Frequently Asked Questions about F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX

What are the general characteristics of a F35 relay such as the Multilin F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX?
The F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX is a specific model number describing a F35 relay, which corresponds to certain modules contained in this F35 relay. In general however, F35 relays are designed to a specific application. The F35 is a microprocessor based relay with the ability to protect up to five feeders (if they have busbar voltage) or up to six feeders (if they lack busbar voltage measurement). The F35 is able to provide the user with RTU function, underfrequency, diagnosis of fault situations, breaker recloser capabilities, protection from under voltage situations, and protection from overcurrent situations. The F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX has similar features as a F35 Multilin universal relay.
What metering abilities does the F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX F35 GE Multilin multiple feeder management relay have?
The F35 has standard features of power metering, voltage metering, and current metering. The relay also has the ability to meter THD and perform metering of voltage harmonics. The parameters are in the form of waveform RMS magnitude or frequency only RMS magnitude. The universal relay can include up to 1024 time tagged events for diagnostic purposes. A report is generated in the event of a fault for diagnostic purposes to aid in the function of the F35 as a multiple feeder management relay.

Reviews For F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX

Internal Review
(4.0)

The F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX’s vast array of possible connections makes it a highly configurable unit, so an experienced user should be present during installation to foster maximum efficiency for the relay’s protection and management capabilities. -AX Control Tech Team

Repair Services For F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX

Type Lead Time Price Action
Repair Service 1-2 weeks $1588

Our highly skilled technicians can repair your F35-G00-HCH-F8H-H6P-M8H-P6N-U8H-WXX. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
