What style of switch inputs arre offered to the SPM Standard Starting and Protection Relay?

This SPM Relay features dry contact MX and NX switch inputs.

How many RS485 ports are available to the SPM's assembly?

This basic SPM model has one two-wire RS485 port in its product makeup.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home GE Multilin SPM Synchronous Motor Protection and Control SPM

❮

❯

About | Product Specifications | FAQs

SPM

4.89 (9)
Click a star to rate this product

4.89 (9)
Click a star to rate this product

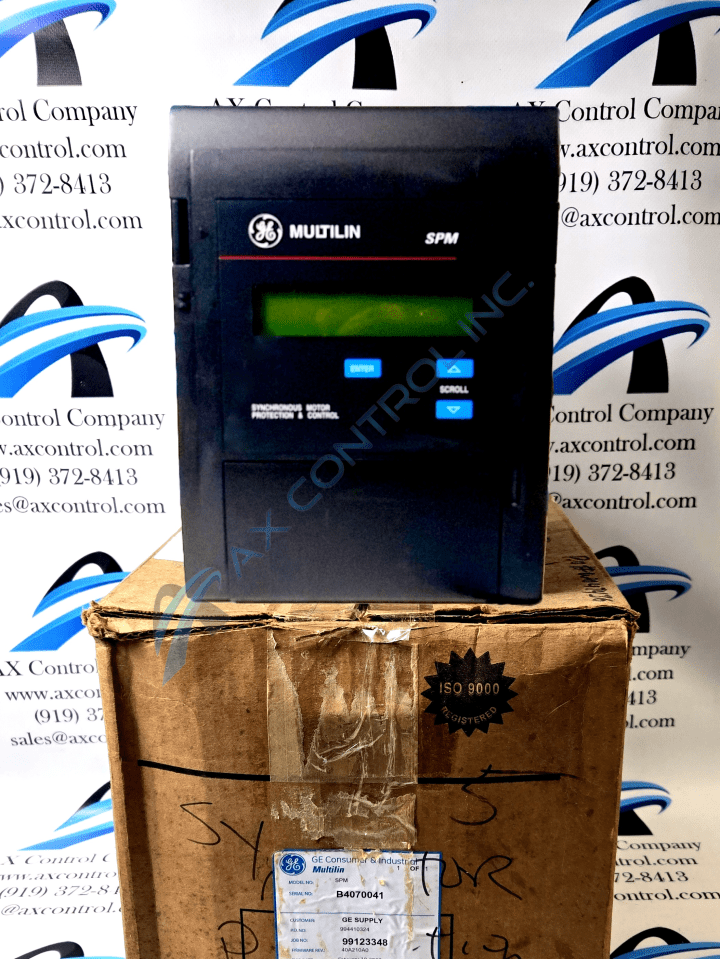

The SPM Standard Starting and Protection Relay made for GE Multilin's SPM Series

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a SPM to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: SPM
SKU: GM-59310

Manufacturer: GE Multilin
Series: SPM Synchronous Motor Protection and Control

Description
Repairs
Warranty
Manuals

SPM Technical Specifications

Manufacturer	GE Vernova
Functional Description	SPM Standard Starting and Protection Relay
Series	Synchronous Motor Protection & Control
Humidity	0 to 95% non-condensing
Operating Temperature	–20°C to +70°C
Storage Temperature	–40°C to +85°C
Insulation Resistance	IEC255-5 500 VDC
VIbration	8.0g for 72 hrs (Sinusoidal)
UL Certification	UL listed for the USA

About the SPM

The SPM Synchronous Motor Protection & Control's SPM product is named as such as it is the base model available for this particular product series. The primary intended function of this basic SPM device involves the start-up, synchronization, and protection functions for both collector-ring and brushless styles of synchronous motor units. To be more specific, some of the protection options offered by the base SPM unit will include:

Cage winding (start-up)
Stall prevention (start-up)
DC field current trip loss protection
Auto resynchronization
A Lockout feature for incomplete starts
Am incomplete sequence tripping
Programmed acceleration time adjustment
Overtemperature protections

SPM Hardware

While this standard starting and protection relay may be just that, missing some of the bells and whistles of revised SPM Series offerings, it is still a robust product encased in a quality chassis. Some of the hardware elements critical to its function include its:

Optional power factor regulator
Five adjustable setpoints
Backlit LCD display
Keypad interface
S1 drawout case (compact)

It should be noted that this SPM Standard Starting and Protection Relay is available here today from AX on both a repair and replacement basis; as this SPM Standard Starting and Protection Relay is a legacy product offering not currently being manufactured.

Reviews For SPM

Internal Review

(5.0)

The SPM Standard Starting and Protection Relay has been placed in the greater SPM product series here, as the SPM Series is a smaller GE Vernova product line with this option featuring as its base model. The SPM Standard Starting and Protection Relay has additional power applications in shunting, sensing, and excitation, and has a comprehensive warranty applied. - AX Control Lead Technician
