850-EP5NNG5HNNALAGAPFBSENNBN

Product Description

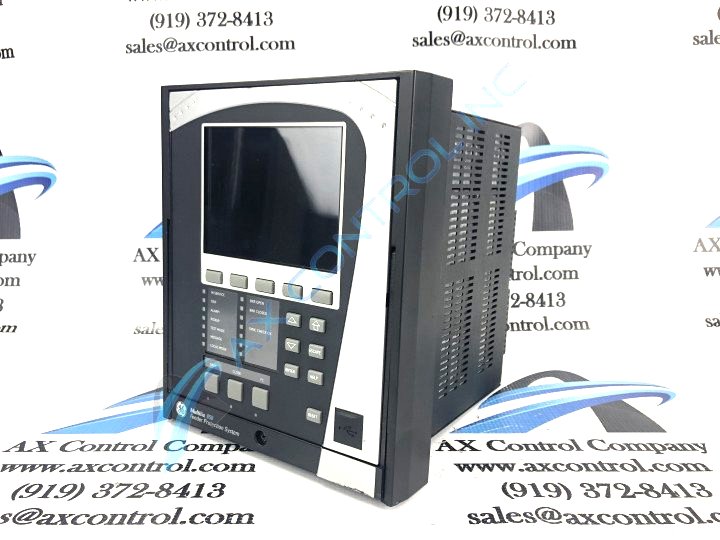

850-EP5NNG5HNNALAGAPFBSENNBN is a graphical control panel that is manufactured by GE Multilin for their 850 series. The language is English. This control panel has 5 amp three-phase current inputs in Bank 1 and Bank 2. In Bank 3, this panel has no phase current inputs. The ground current is a 5 amp ground input. The power supply is 110-250 VDC and 110-230 VAC. The faceplate is a color graphical display. The current protection is advanced. The voltage monitoring and protection is also advanced. There is no fiber optic connector or wireless communication. The security is basic.

For the phase overvoltage on the graphical control panel, the voltage is the fundamental phasor magnitude. The pickup level is 0.02 to 3.00 x VT in steps of 0.01 x VT. The dropout level is 97-98% of the pickup level. The level accuracy is ± 0.5% of the reading from 10 volts to 208 volts. The phases required for operation are any 1, any 2, or all 3 phases. The pickup time delay is 0.000 to 6000.000 seconds in steps of 0.001 second. The dropout time delay is 0.000 to 6000.000 seconds in steps of 0.001 second. The pickup accuracy is per phase voltage input channel error. The operate time is less than 25 ms at 1.1 x pickup at 60 Hz, as well as less than 30 ms at 1.1 x pickup at 50 Hz. The timer accuracy is ± 3% of the delay setting OR ± ¼ of a cycle from pickup to operate (whichever is greater.
