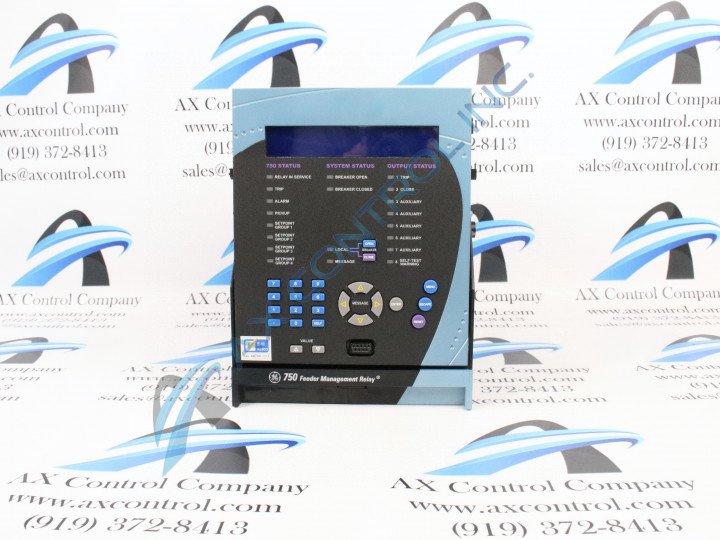

The GE Multilin 750-P5-G5-S5-HI-A20-R-E-H is a Feeder Protection System Relay that features 5 A phase current inputs, 5 A zero sequence inputs, eight 4 - 20 mA analog outputs, with an enhanced display and harsh chemical environment option.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 750-P5-G5-S5-HI-A20-R-E-H to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 750-P5-G5-S5-HI-A20-R-E-H
  • SKU: GM-54051
  • Manufacturer: GE Multilin
  • Series: 750/760 Feeder Management Relay

750-P5-G5-S5-HI-A20-R-E-H Technical Specifications

Part Number 750-P5-G5-S5-HI-A20-R-E-H
Manufacturer General Electric
Series 750/760 Feeder Management Relay
# of Setpoint Groups 4
Ambient Storage Temperature Range -40°F to +176°F
Communications RS232, RS422, RS485 ports
Operating Temperature Range -40°F to +140°F
Pollution Degree II
Relay Dimensions 7” W, 6.5” L, 8.5” H
Weight 10.57 lb
Power Supply 88-300 VDC or 70-265 VAC @ 48-62 Hz

About the 750-P5-G5-S5-HI-A20-R-E-H

  • The 750-P5-G5-S5-HI-A20-R-E-H is a digital relay from General Electric's 750/760 Feeder Protection System line.
  • These units are designed to establish electrical connections to external equipment while providing protection and control for distribution feeders.
  • They can be mounted as a solitary unit or alongside other SR series relays in a standard 19-inch panel rack.

Technical Specifications and Capabilities
  • Features 5 amp phase current inputs, 5 amp zero-sequence current inputs, and 5 amp sensitive ground current inputs.
  • Includes eight 4-20 mA analog outputs.
  • Operates on an 88-300 VDC or 70-265 VAC @ 48-62 Hz power supply.
  • Rated for use in harsh chemical environments, indicated by the "H" in its model number.

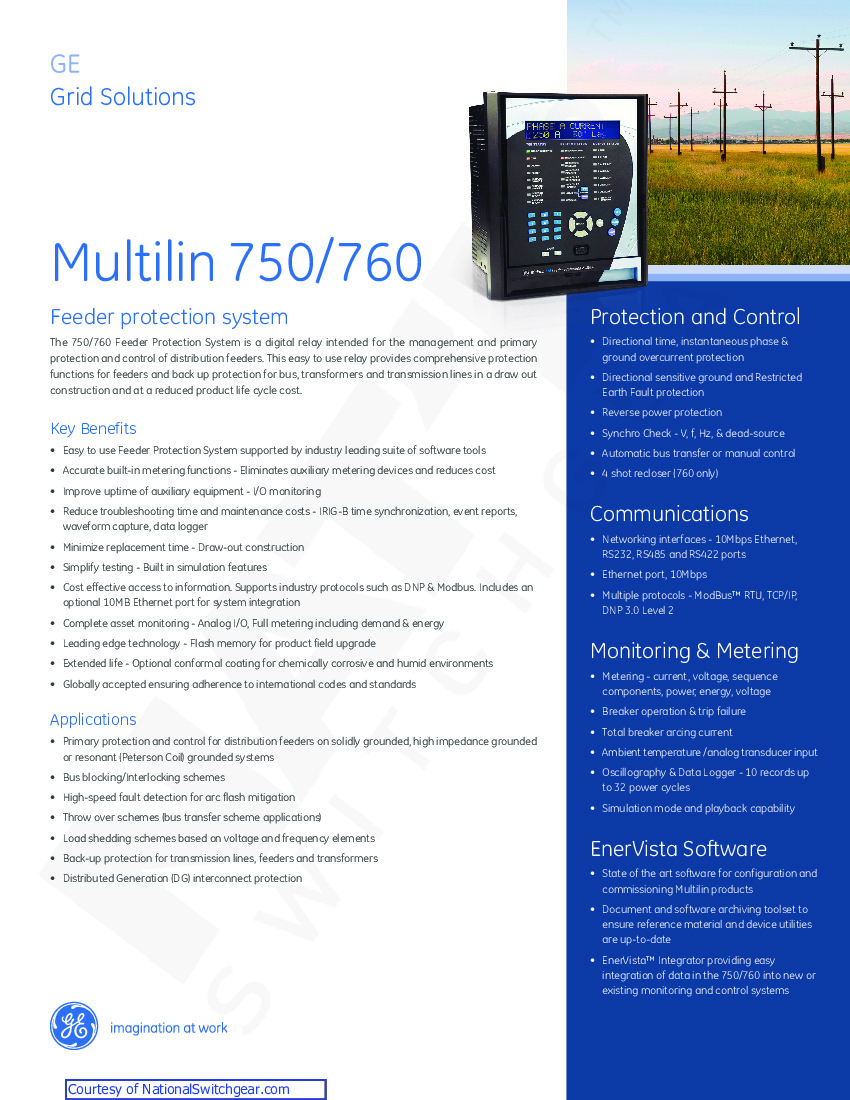

Standard Features and Benefits
  • Offers automatic bus transfer and synchro check (voltage, frequency, Hz, and dead source).
  • Provides reverse power protection and restricted Earth Fault protection.
  • Equipped with several networking interfaces, including:
    • Ethernet
    • RS232, RS485, and RS422 ports
  • Supports communication protocols such as Modbus RTU, TCP/IP, and DNP 3.0.

Control and Communications
  • Supports both local and remote control/communications.
  • Local control is facilitated by the LCD panel, associated keypad, and control keys.
  • Contact and serial inputs can be programmed for remote tripping, feature blocking, or resetting.
  • Rear ports allow connections to distributed control systems, PLCs, or SCADA systems.

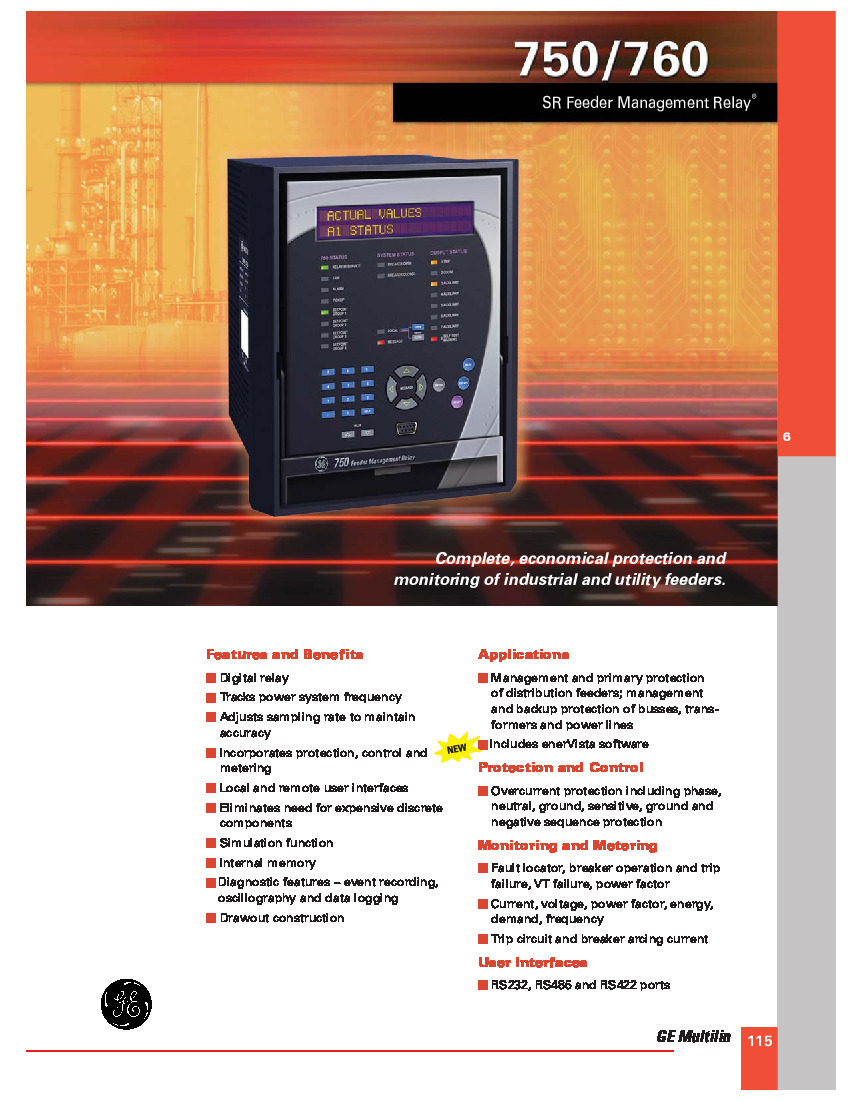

Documentation
  • Additional information, including FAQs, wiring diagrams, guideform specifications, and application notes, can be sourced from the OEM (Original Equipment Manufacturer).
  • This documentation is crucial for safe installation, maintenance, and handling of the unit.

Reviews For 750-P5-G5-S5-HI-A20-R-E-H

Internal Review
(5.0)

The 750-P5-G5-S5-HI-A20-R-E-H’s conformal coating, denoted by the “H” in the model number, offers the relay protection against dust, chemical corrosion, humidity, variable temperatures, and more. -AX Control Tech Team
