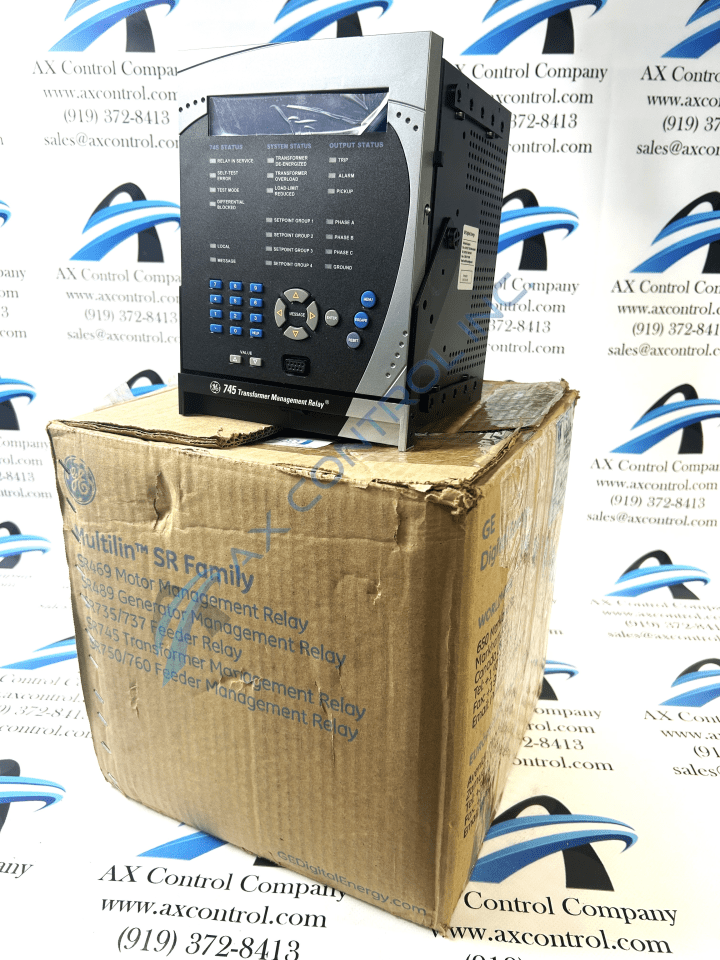

The 745-W3-P5-G5-LO-R-E 745 Transformer Protection System by GE Multilin

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 745-W3-P5-G5-LO-R-E to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 745-W3-P5-G5-LO-R-E
SKU: GM-59206

Manufacturer: GE Multilin
Series: 745 Transformer Protection System

Description
Repairs
Warranty
Manuals

745-W3-P5-G5-LO-R-E Technical Specifications

Part Number	745-W3-P5-G5-LO-R-E
Manufacturer	GE Multilin
Series	745 Transformer Protection System
Operating Temperature	-40 to 60 degrees Celsius
Storage Temperature	-40 to 80 degrees Celsius ambient
Display Type	Enhanced Display; Large LCD
Windings per Phase	3 Windings Per Phase
Phase Current Input Rating	5A for all windings

About the 745-W3-P5-G5-LO-R-E

The 745-W3-P5-G5-LO-R-E is a 745 Transformer Protection System from GE Multilin. This relay can be used with small, medium, and large power transformers, autotransformers, and reactors. The 745-W3-P5-G5-LO-R-E is three-phase, three windings per phase system.

The 745-W3-P5-G5-LO-R-E is a low control power system, which is indicated by the LO in the part number. This relay accepts 20 to 60 VDC or 20 to 48 VAC at 42 to 60 Hz. The 745-W3-P5-G5-LO-R-E can still be used with the above mentioned transformers and other components, despite the lower power control.

There are a number of important features that the 745-W3-P5-G5-LO-R-E has. Some of these are:

Enhanced display
Event recording
Restricted ground fault protection
Simulation mode

Each of these features helps the 745-W3-P5-G5-LO-R-E to be a fully functioning unit. The restricted ground fault protection is not equipped to every unit, which makes this a bonus feature that the 745-W3-P5-G5-LO-R-E has.

Frequently Asked Questions about 745-W3-P5-G5-LO-R-E

How many events can be recorded on the 745-W3-P5-G5-LO-R-E?

The 745-W3-P5-G5-LO-R-E can record the last 128 events on the relay.

What does the simulation feature do for the 745-W3-P5-G5-LO-R-E?

The simulation mode allows users to test the functionality of the relay before using it with the transformer. This feature uses preexisting data or computer generated data to test playback.

Reviews For 745-W3-P5-G5-LO-R-E

Internal Review

(5.0)

The 745-W3-P5-G5-LO-R-E can accurately measure different currents, including ground currents. This is through the advanced metering system that the 745-W3-P5-G5-LO-R-E has. This metering system eliminates the need for an auxiliary metering system, which reduces cost for users. The 745-W3-P5-G5-LO-R-E can also monitor different features for the transformer. - AX Control Lead Technician

Repair Services For 745-W3-P5-G5-LO-R-E

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$3050

Our highly skilled technicians can repair your 745-W3-P5-G5-LO-R-E. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
