The 745-W3-P5-G5-HI-A-L-R-E-H GE Multilin 745 Transformer Protection System

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 745-W3-P5-G5-HI-A-L-R-E-H to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 745-W3-P5-G5-HI-A-L-R-E-H
SKU: GM-59207

Manufacturer: GE Multilin
Series: 745 Transformer Protection System

Description
Repairs
Warranty
Manuals

745-W3-P5-G5-HI-A-L-R-E-H Technical Specifications

Part Number	745-W3-P5-G5-HI-A-L-R-E-H
Series	745 Transformer Protection System
Manufacturer	GE Multilin
Control Power Type	High Control Power
Options	Analog Inputs/Outputs; Restricted Ground Fault; Loss of Life
Phase Current Input Rating	5A for all windings
Analog Outputs	7 Outputs
Logic Inputs	16 Inputs
Manual Number	1601-0161-A9

About the 745-W3-P5-G5-HI-A-L-R-E-H

The 745-W3-P5-G5-HI-A-L-R-E-H is a 745 Transformer Protection System from the General Electric Multilin line. This relay provides control and protection for small, medium, and large power transformers.

The 745 relays can serve as primary or backup protective systems. The 745-W3-P5-G5-HI-A-L-R-E-H can be used a standalone relay or as a component in another system. The 745-W3-P5-G5-HI-A-L-R-E-H has a number of protective features for transformers. Some of these are:

Overcurrent protection
Under/overfrequency protection
Percent differential protection
Overexcitation protection

The 745-W3-P5-G5-HI-A-L-R-E-H also has monitoring features. The relay can monitor individual harmonics and total harmonic distortion. The 745-W3-P5-G5-HI-A-L-R-E-H also has asset monitoring features and event recording. The relay can record the last 128 events, giving users the date, time, cause, and system parameters for each event.

Frequently Asked Questions about 745-W3-P5-G5-HI-A-L-R-E-H

Where can manuals be found for the 745-W3-P5-G5-HI-A-L-R-E-H?

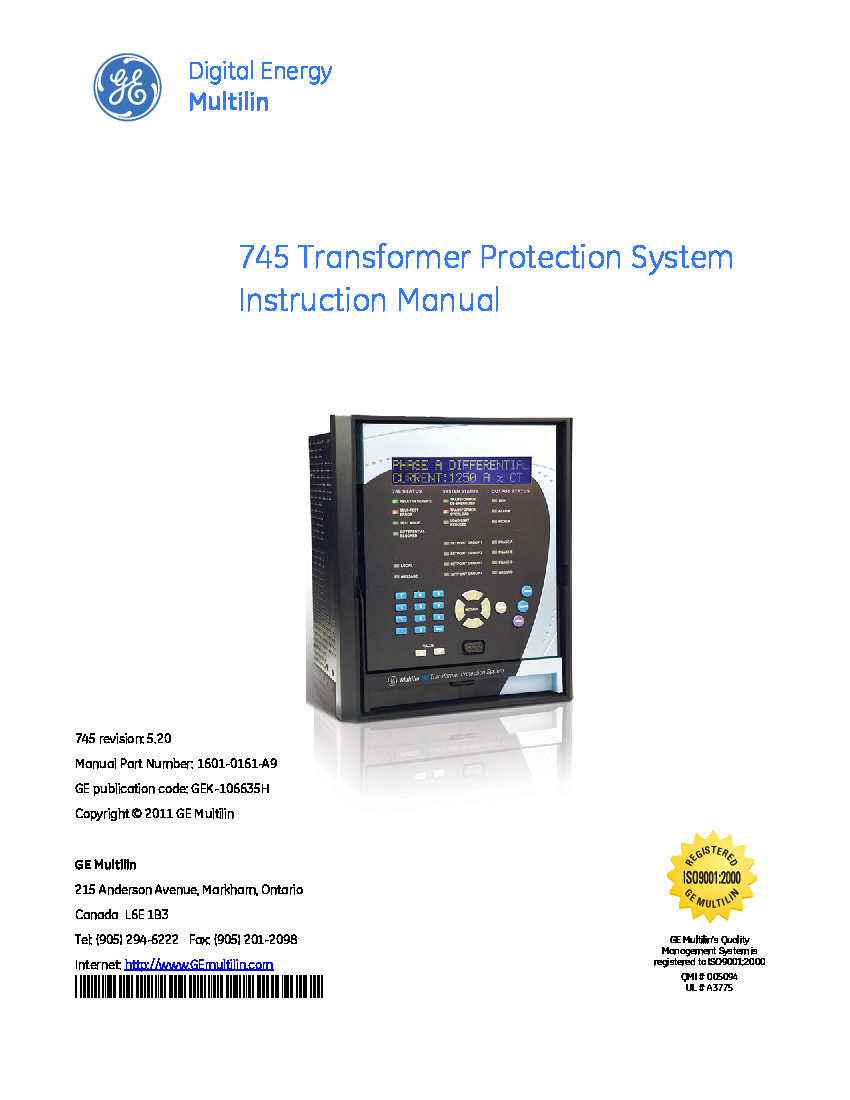

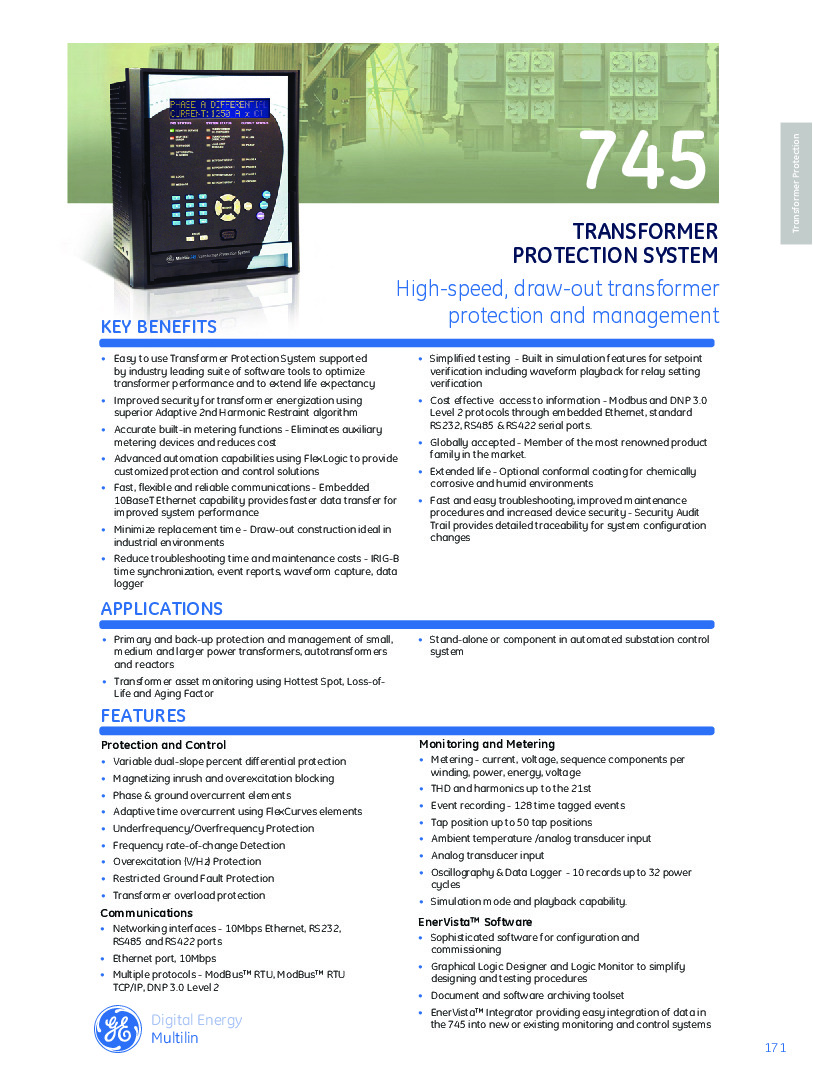

Manuals for the 745-W3-P5-G5-HI-A-L-R-E-H can be found under our "Manuals" tab on this product page. There are two manuals that are important for the 745-W3-P5-G5-HI-A-L-R-E-H. One provides a comprehensive overview of all processes related to the relays. The other is a data sheet with information on features of the relays.

Does the 745-W3-P5-G5-HI-A-L-R-E-H have a conformal coating?

Yes, this relay has a harsh chemical environment conformal coating. This feature is indicated by the H in the part number.

Reviews For 745-W3-P5-G5-HI-A-L-R-E-H

Internal Review

(5.0)

The 745-W3-P5-G5-HI-A-L-R-E-H has several features that are not standard for all 745 relays. This includes analog inputs/outputs, loss of life protection, and restricted ground fault option. The loss of life protection estimates how much of the transformer's insulation has elapsed. The 745-W3-P5-G5-HI-A-L-R-E-H also has an enhanced display with a larger LCD and improved keypad. - AX Control Lead Technician

Repair Services For 745-W3-P5-G5-HI-A-L-R-E-H

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$3250

Our highly skilled technicians can repair your 745-W3-P5-G5-HI-A-L-R-E-H. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year
