745-W3-P1-G1-HI-E

4.50 (2)
Click a star to rate this product

4.50 (2)
Click a star to rate this product

The 745-W3-P1-G1-HI-E Transformer Protection System from GE Multilin

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 745-W3-P1-G1-HI-E to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 745-W3-P1-G1-HI-E
SKU: GM-59190

Manufacturer: GE Multilin
Series: 745 Transformer Protection System

Description
Repairs
Warranty
Manuals

745-W3-P1-G1-HI-E Technical Specifications

Part Number	745-W3-P1-G1-HI-E
Series	745 Transformer Protection System
Manufacturer	General Electric
Control Power (VAC)	70 to 265 VAC at 48 to 62 Hz
Winding Per Phase	3 Winding
Display Type	Enhanced Display; Large LCD
Logic Inputs	16 Inputs
Operating Temperature	-40 to 60 degrees Celsius

About the 745-W3-P1-G1-HI-E

The 745-W3-P1-G1-HI-E is a 745 Transformer Protection System manufactured by General Electric. The 745-W3-P1-G1-HI-E works to extend transformer life and allow for better performances from the transformer. The 745 Transformer Protection System is part of the GE Multilin line.

The 745-W3-P1-G1-HI-E has multiple processors and is a three-phase system. This particular unit is three winding and can be used for small, medium, and large power transformers. The 745-W3-P1-G1-HI-E has an enhanced display, which features a larger LCD. This feature is indicated by the E in the part number.

This unit has several communications ports that allow for external connections to be made. These ports include an RS232 port and two RS485/RS422 ports. The RS485/RS422 ports can support connections to:

DCS
SCADA
PLC

These ports also give the unit the ability to remotely communicate with other devices.

Frequently Asked Questions about 745-W3-P1-G1-HI-E

Does this unit have a conformal coating on it?

No, this unit does not have the harsh chemical environment conformal coating. Any units that have this coating have an H at the end of their part number.

Are there any manual materials for the 745-W3-P1-G1-HI-E?

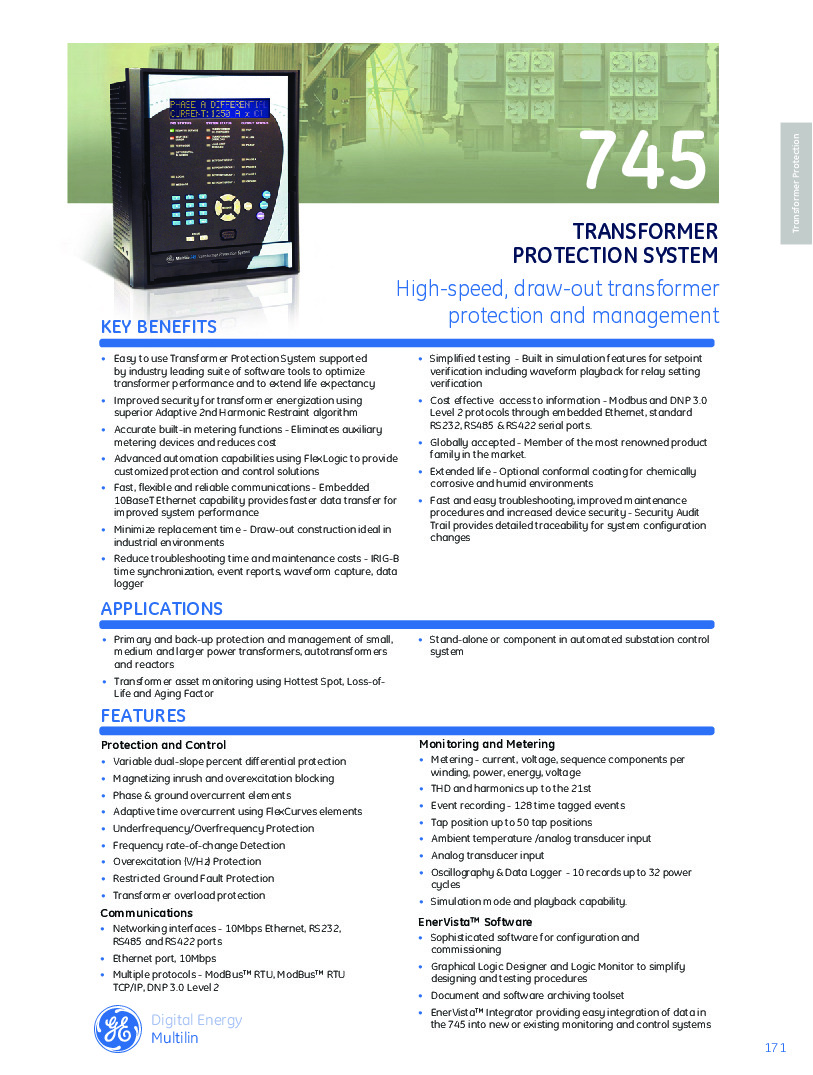

Yes, there are some online manuals that are helpful for the 745-W3-P1-G1-HI-E. There is a Data Sheet that provides a breakdown of the 745 Series, and there is also a comprehensive manual with more information regarding processes related to the 745 relays. These materials can be found under our "Manuals" tab on this product page.

Reviews For 745-W3-P1-G1-HI-E

Internal Review

(5.0)

The 745-W3-P1-G1-HI-E offers advanced protection from a variety of problems for transformers. This unit also has a simulation feature that allows users to test the function of the relay by using previous data or generated data. This is a helpful feature because users can test to see whether their relay is working properly before using it with a transformer. - AX Control Lead Technician

Repair Services For 745-W3-P1-G1-HI-E

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$2850

Our highly skilled technicians can repair your 745-W3-P1-G1-HI-E. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty
