745-W2-P5-G5-HI-R-T

Name: 745-W2-P5-G5-HI-R-T
Brand: GE Multilin
SKU: GM-18796
Price: 1613 USD
Availability: LimitedAvailability
Rating: 5 (1 reviews)

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

General Electric Multilin's 745-W2-P5-G5-Hi-R-T is an adaptive Transformer Protection System. It has the ability to monitor transformers, trend system data, alert users to transformer errors, and adapt to shifting variables such as temperature or frequency.

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 745-W2-P5-G5-HI-R-T to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 745-W2-P5-G5-HI-R-T
SKU: GM-18796

Manufacturer: GE Multilin
Series: 745 Transformer Protection System

Description
Repairs
Warranty
Manuals

745-W2-P5-G5-HI-R-T Technical Specifications

Weight	18 lbs
Software Version	EnerVista 745
Series	745 Transformer Protection System
Part Number	745-W2-P5-G5-HI-R-T
Operating Temperature	-40°C (-40°F) to +60°C (140°F)
# of Logic Inputs	16
Manufacturer	GE Multilin, GE Vernova, or GE Grid Solutions
Ground Current Input Burden	.less than 0.2 VA at rated load per phase
Ethernet	10Base-T RJ45 connector Modbus TCP/IP
Control Power Range	90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz
# of Recordable Events	256
Dimensions	9 in x 7 in x 7 1/8 in

About the 745-W2-P5-G5-HI-R-T

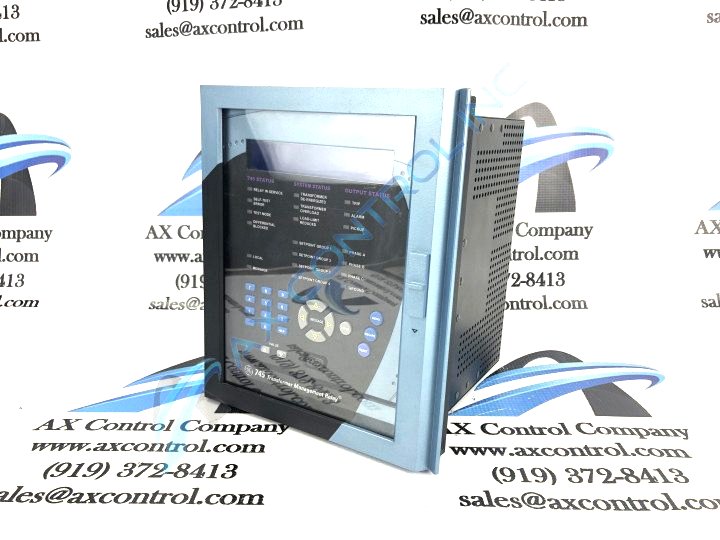

GE Multilin 745-W2-P5-G5-HI-R-T Transformer Protection System

Enhanced Transformer Management: This Transformer Protection System is designed to reduce troubleshooting time and extend transformer life. It monitors transformers, trends system data, and alerts users to errors.
Adaptive Capabilities: The unit can adapt to shifting variables like temperature or frequency, ensuring real-time protection.
Data Access & Software: All system information is viewable on the 40-character liquid crystal display. For easier review and analysis, data can be accessed on a computer running EnerVista 745, the relay's accompanying software.

Connectivity & Networking

Multiple Connection Options: Computers running EnerVista can connect via the front RS232 port or the rear RS422/RS485 port.
Ethernet Capabilities: This model includes Ethernet capabilities for network connection, allowing access to EnerVista without a direct port connection.
Ethernet Specifications: The Ethernet uses a 10Base-T RJ45 connector, functions on the Modbus TCP/IP protocol, and is updated to version 2.0.

Physical Characteristics & Installation

Weight: Weighs approximately 18 lbs in its case and 10.5 lbs when removed from the chassis.
Dimensions: 9 in x 7 in x 7 1/8 in
Installation: For installation onto a standard 19-inch panel, the relay should be removed from the chassis first to minimize risk.
Chassis & Protection: The chassis is a standard 745 SR-series, offering mechanical protection during drawout functions.
Electrical Connections: Electrical connections are made through ports located on the rear of the panel.
Dustproof Design: The case's door is dustproof, providing added protection.

Frequently Asked Questions about 745-W2-P5-G5-HI-R-T

What does the R and the T option indicate for the Multilin 745-W2-P5-G5-Hi-R-T Transformer Protection System that make it unique to other relay management systems in the 745 Multilin series?

The Multilin 745-W2-P5-G5-Hi-R-T Transformer Protection System has options as designated by the R and the T. The R indicates a restricted ground fault option. The restricted ground fault option for the 745-W2-P5-G5-Hi-R-T has two elements. It has a dropout level of 97 to 98 percent of pickup. The slope range in steps of 1 ranges from 0 to 100 percent. The pickup delay is listed in the manual at 0.00 to 600.00 s in steps of .01.
The T option is the highest option that may be selected for display and ethernet. The three options are either basic (B), enhanced display and a larger LCD (E), and finally an enhanced display, larger LCD, with an Ethernet (T). The 745-W2-P5-G5-Hi-R-T transformer protection system has the final option or the T option, which does include the larger LCD, and an ethernet. The display is enhanced when compared to the basic option.

What is the ground current input rating for the Multilin 745-W2-P5-G5-Hi-R-T.

The ground current input rating is designated for the Multilin 745-W2-P5-G5-Hi-R-T by the G5 option within the part number. Historically there are four possabilities here: G1, G5, G15, G51. In this case, for the Multilin 745-W2-P5-G5-Hi-R-T, the G5 option includes a ground current input rating where winding 1/2 is equal to 5 A and winding 2/3 is equal to 5 A.
