The 745-W2-P5-G5-HI-R Transformer Protection System by General Electric Multilin

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 745-W2-P5-G5-HI-R to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 745-W2-P5-G5-HI-R
SKU: GM-59203

Manufacturer: GE Multilin
Series: 745 Transformer Protection System

Description
Repairs
Warranty
Manuals

745-W2-P5-G5-HI-R Technical Specifications

Part Number	745-W2-P5-G5-HI-R
Manufacturer	GE Multilin
Series	745 Transformer Protection System
Operating Temperature	-40 to 60 degrees Celsius
Storage Temperature	-40 to 80 degrees Celsius ambient
Manual Number	1601-0161-A9
Windings per Phase	2 Windings per Phase
Phase Current Input Rating	5A for all windings
Options	Restricted Ground Fault Option

About the 745-W2-P5-G5-HI-R

The 745-W2-P5-G5-HI-R is a 745 Transformer Protection System from GE Multilin. This relay can be used with small, medium, or large power transformers, autotransformers, and reactors. The 745-W2-P5-G5-HI-R is a 3-phase, two windings per phase relay.

There are several important capabilities that the 745-W2-P5-G5-HI-R has. Some of these are:

Individual harmonic and total harmonic distortion monitoring
Simulation and testing feature
Under/overfrequency protection

There are more protective features that the 745-W2-P5-G5-HI-R has. This includes overcurrent protection, restricted ground loss protection, and overexcitation protection. The restricted ground loss protection is not standard for all 745 relays, making the 745-W2-P5-G5-HI-R just one of several units with this protective feature.

Frequently Asked Questions about 745-W2-P5-G5-HI-R

What is the simulation feature on the 745-W2-P5-G5-HI-R?

The simulation feature allows operators to test the functionality of the relay before using it with a transformer. This can help users identify if there are any issues with the relay.

Is there a manual related to the 745-W2-P5-G5-HI-R?

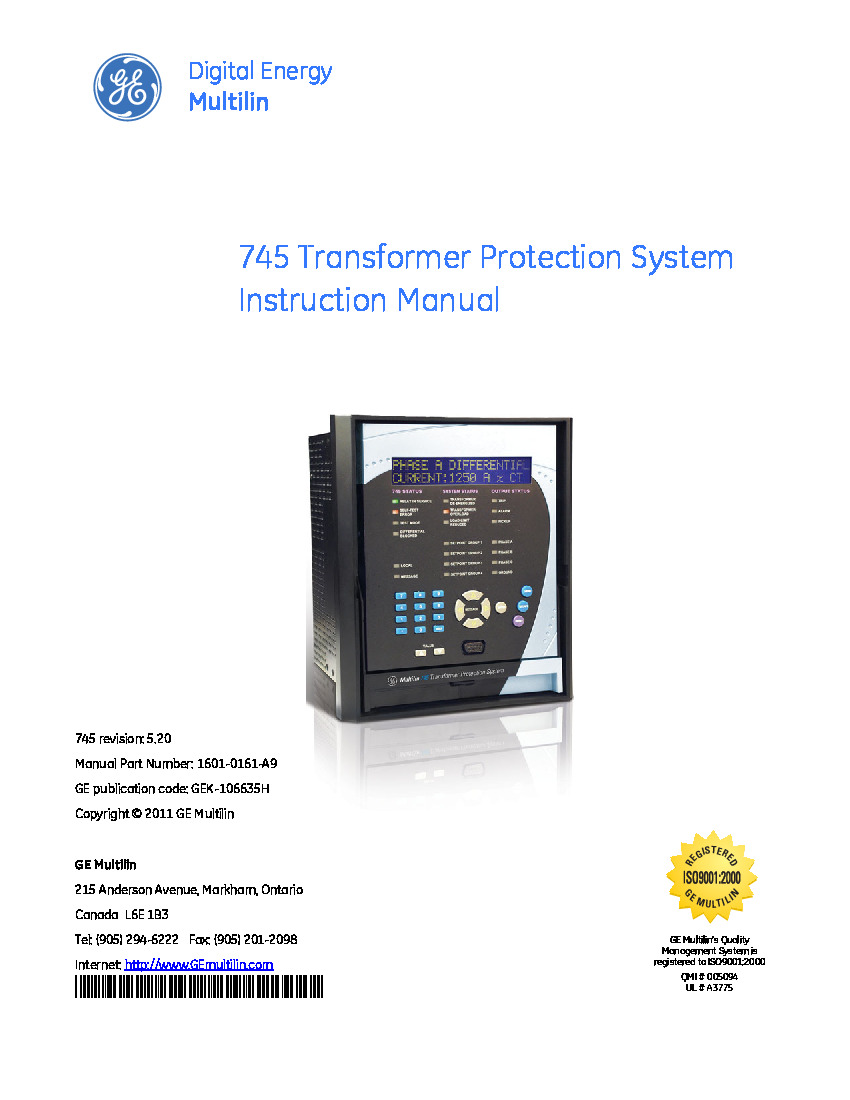

Yes, there are two important manuals for the 745 relays as a whole. The first is a comprehensive manual that provides information on many of the processes related to the series. The second document is a data sheet that has an overview of features of the series, as well as a part number breakdown. These manuals can be found under the "Manuals" tab on this part page.

Reviews For 745-W2-P5-G5-HI-R

Internal Review

(5.0)

The 745-W2-P5-G5-HI-R provides extensive coverage for transformer protection. This relay is equipped with a restricted ground loss protection feature that only a few of the relays have. The 745-W2-P5-G5-HI-R also includes indicator LEDs that are designed to signal if there is a fault or trip within the relay. These LEDs provide relay status and system status, as well. - AX Control Lead Technician
