745-W2-P5-G5-HI-A-R-C-E

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

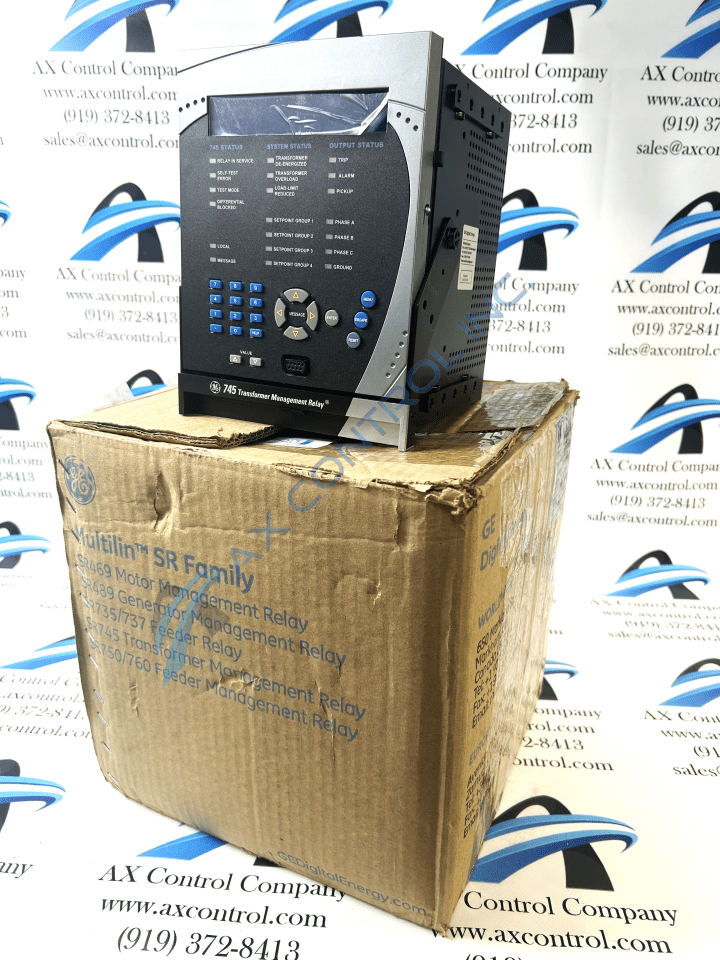

The 745-W2-P5-G5-HI-A-R-C-E Transformer Protection System by General Electric Multilin

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 745-W2-P5-G5-HI-A-R-C-E to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 745-W2-P5-G5-HI-A-R-C-E
SKU: GM-59194

Manufacturer: GE Multilin
Series: 745 Transformer Protection System

Description
Repairs
Warranty
Manuals

745-W2-P5-G5-HI-A-R-C-E Technical Specifications

Part Number	745-W2-P5-G5-HI-A-R-C-E
Manufacturer	General Electric
Series	745 Transformer Protection System
Control Power (VDC)	90 to 300 VDC
Control Power (VAC)	70 to 265 VAC at 48 to 62 Hz
Display Type	Enhanced Display; Large LCD
Operating Temperature	-40 to 60 degrees Celsius
Storage Temperature	-40 to 80 degrees Celsius ambient

About the 745-W2-P5-G5-HI-A-R-C-E

The 745-W2-P5-G5-HI-A-R-C-E is a 745 Transformer Protection System from General Electric's Multilin line. The 745-W2-P5-G5-HI-A-R-C-E provides protection to small, medium, and larger power transformers, autotransformers, and reactors. The unit has multiple protective features that allow users greater safety for their transformers.

Some of these protective features are:

Percent differential protection
Overexcitation protection
Overcurrent protection
Over/Underfrequency protection

The 745-W2-P5-G5-HI-A-R-C-E has several features that are significant to this unit. This includes Analog Inputs/Outputs, a Restricted Ground Fault option, and an enhanced display with a larger LCD. The 745-W2-P5-G5-HI-A-R-C-E has two windings and is a three-phase system, which is standard for these units.

Frequently Asked Questions about 745-W2-P5-G5-HI-A-R-C-E

What are the indicators for on the 745-W2-P5-G5-HI-A-R-C-E?

The indicators can tell users what the relay status is, as well as system status and trip or alarm conditions.

Does the 745-W2-P5-G5-HI-A-R-C-E have a metering system?

Yes, the 745-W2-P5-G5-HI-A-R-C-E is equipped with a metering system, which eliminates the need for an auxiliary metering system.

Reviews For 745-W2-P5-G5-HI-A-R-C-E

Internal Review

(5.0)

The 745-W2-P5-G5-HI-A-R-C-E is a protection relay, which helps transformers perform better and expand the lifetime of these transformers. The 745-W2-P5-G5-HI-A-R-C-E is a useful addition to systems because of its range of capabilities. The 745 series uses EnerVista software, which is a sophisticated and high speed network. The 745-W2-P5-G5-HI-A-R-C-E also has several communications ports. - AX Control Lead Technician
