The 745-W2-P5-G5-HI-A-R Transformer Protection System by GE

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 745-W2-P5-G5-HI-A-R to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 745-W2-P5-G5-HI-A-R
SKU: GM-59191

Manufacturer: GE Multilin
Series: 745 Transformer Protection System

Description
Repairs
Warranty

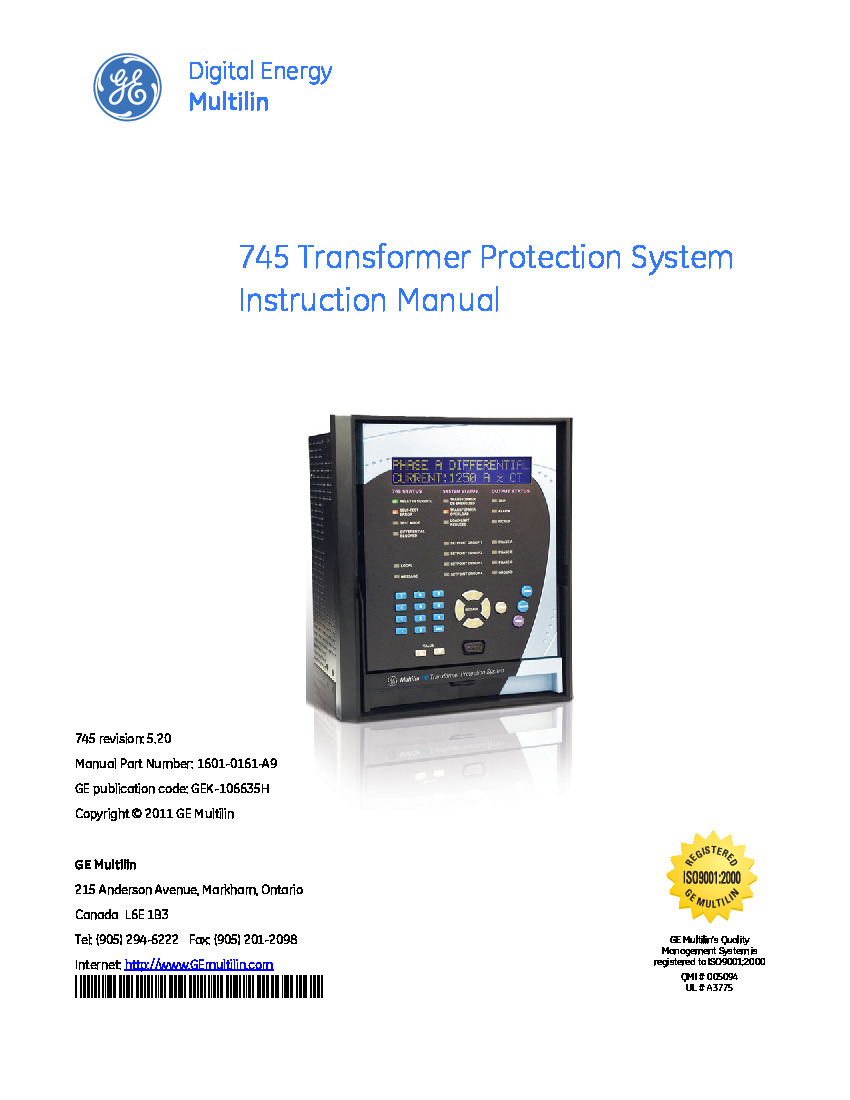

Manuals

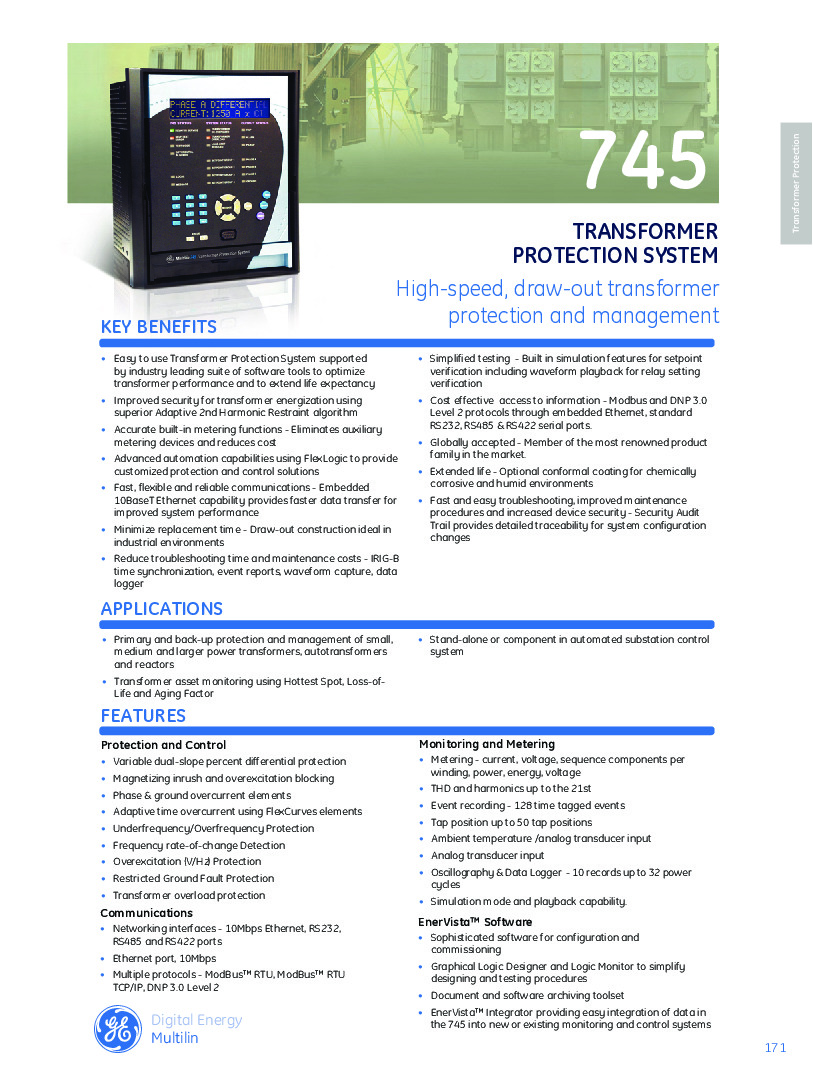

745-W2-P5-G5-HI-A-R Technical Specifications

Part Number	745-W2-P5-G5-HI-A-R
Series	745 Transformer Protection System
Manufacturer	General Electric
Phase Current Input Rating	5A for all windings
Storage Temperature	-40 to 80 degrees Celsius ambient
Altitude	2000 m
Analog Outputs	7

About the 745-W2-P5-G5-HI-A-R

The 745-W2-P5-G5-HI-A-R is from the General Electric 745 Transformer Protection System series. This series is part of the Multilin family that General Electric manufactured. The 745-W2-P5-G5-HI-A-R can be used with small, medium, and larger power transformers given its high functionality.

There are multiple protective features that come standard with the 745 relays. Some of these are:

Overcurrent
Overfrequency
Overexcitation
Percent differential

The 745-W2-P5-G5-HI-A-R also has a monitoring system for individual harmonics and total harmonic distortion. The 745-W2-P5-G5-HI-A-R is equipped with multiple setpoint groups that can allow for users to select up to four groups of settings to look at protection requirements for different power system configurations.

The 745-W2-P5-G5-HI-A-R has a control power rating of 90 to 300 VDC, or 70 to 265 VAC at 48 to 62 Hz. The 745-W2-P5-G5-HI-A-R also has two additional enhancements to its setup. These are analog inputs/outputs and loss of life protection.

Frequently Asked Questions about 745-W2-P5-G5-HI-A-R

What is the simulation mode on the 745-W2-P5-G5-HI-A-R?

The simulation mode allows users to use previous data or computer generated data to test the functionality of the relay before using it with a transformer. This helps users identify if there are any issues with the relay.

What type of software does the 745-W2-P5-G5-HI-A-R use?

The 745-W2-P5-G5-HI-A-R uses EnerVista software, which allows for commissioning and configuration.

Reviews For 745-W2-P5-G5-HI-A-R

Internal Review

(5.0)

The 745-W2-P5-G5-HI-A-R has a wide range of protective features for transformers. This relay can help to extend the life expectancy of transformers, while also optimizing performances. The 745-W2-P5-G5-HI-A-R also has built-in metering functions, which eliminates the need for a separate metering device. The 745-W2-P5-G5-HI-A-R has a high speed, allowing for easier communications with other devices. - AX Control Lead Technician

Repair Services For 745-W2-P5-G5-HI-A-R

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$2995

Our highly skilled technicians can repair your 745-W2-P5-G5-HI-A-R. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
