745-W2-P5-G5-HI-A-L-T

4.50 (2)
Click a star to rate this product

4.50 (2)
Click a star to rate this product

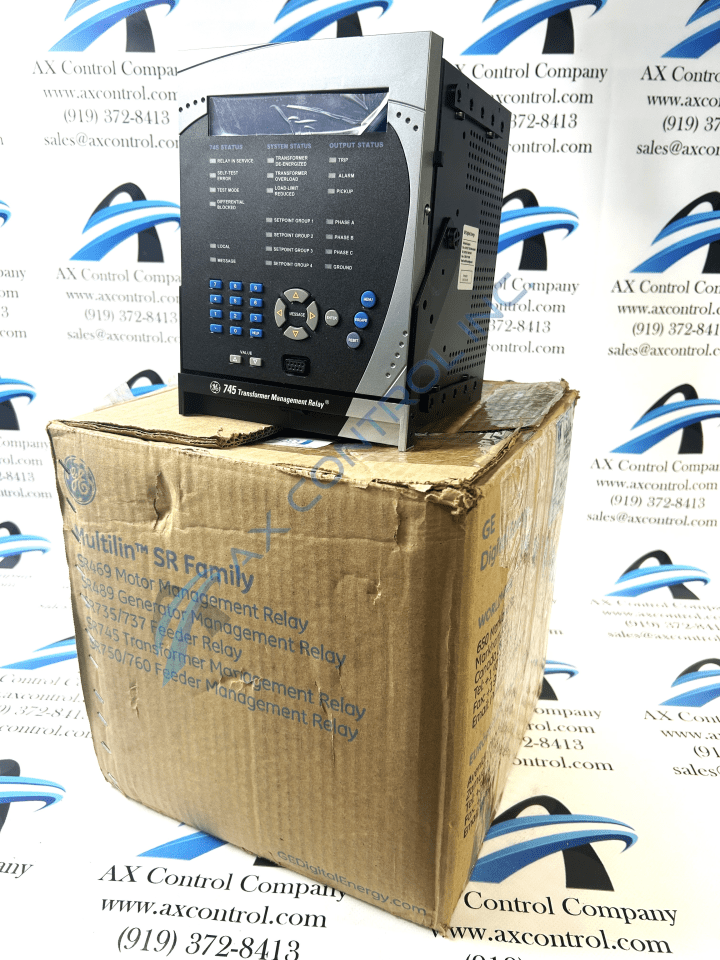

The 745-W2-P5-G5-HI-A-L-T Transformer Protection System by GE Multilin

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 745-W2-P5-G5-HI-A-L-T to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 745-W2-P5-G5-HI-A-L-T
SKU: GM-59209

Manufacturer: GE Multilin
Series: 745 Transformer Protection System

Description
Repairs
Warranty

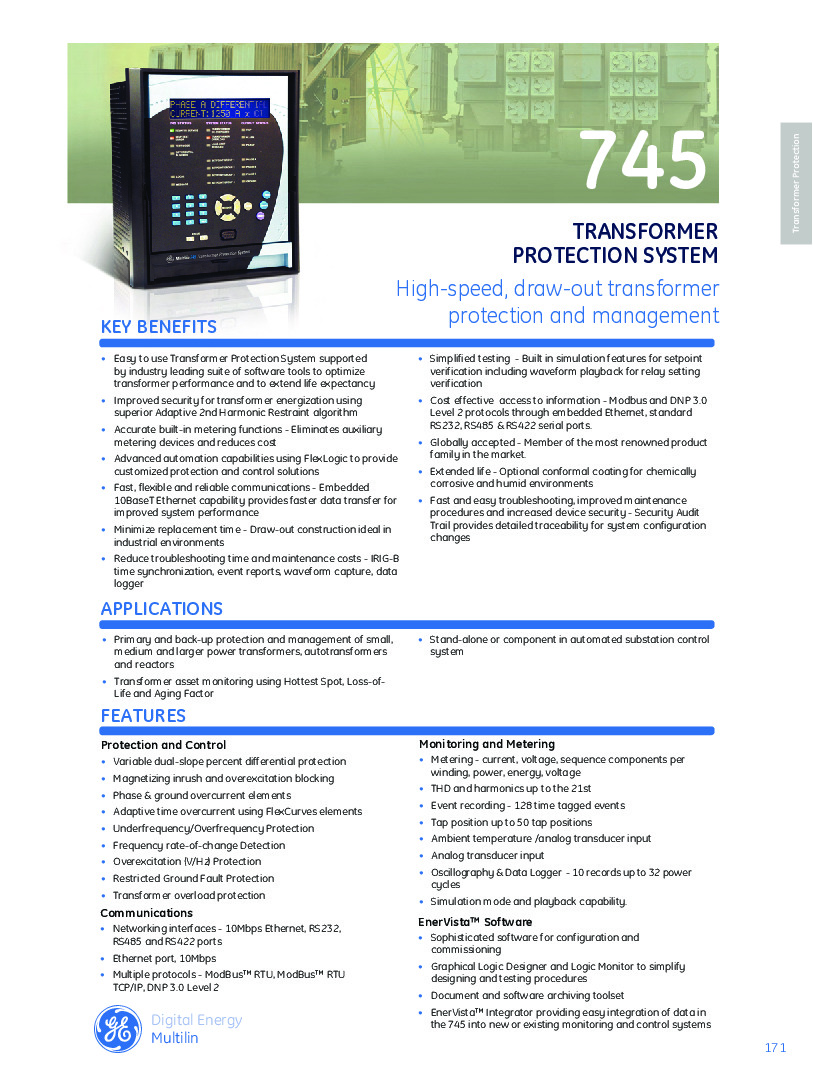

Manuals

745-W2-P5-G5-HI-A-L-T Technical Specifications

Part Number	745-W2-P5-G5-HI-A-L-T
Series	745 Transformer Protection System
Manufacturer	GE Multilin
Control Power Type	High Control Power
Analog Outputs	7 Outputs
Logic Inputs	16 Inputs
Storage Temperature	-40 to 80 degrees Celsius ambient
Operating Temperature	-40 to 60 degrees Celsius
Weight	18 lbs, 6 oz

About the 745-W2-P5-G5-HI-A-L-T

The 745-W2-P5-G5-HI-A-L-T is a 745 Transformer Protection System from General Electric Multilin. The 745-W2-P5-G5-HI-A-L-T is a relay that provides control and protection to transformers that are small, medium, and large power.

This unit is equipped with analog inputs and outputs, as well as loss of life protection. The loss of life protection is an estimate of how much of the transformer's total insulation life has elapsed. This feature is not standard on every 745 relay.

There are a number of important features to highlight on the 745-W2-P5-G5-HI-A-L-T. Some of these are:

Improved security
Reliable communications
Simulation mode
Event recording

The communications on the 745-W2-P5-G5-HI-A-L-T are more advanced, as well, due to its Ethernet port. This is a 10BaseT Ethernet port that allows for faster, more efficient data transfer. This can help when sending data to a different piece of hardware with Ethernet capabilities.

Frequently Asked Questions about 745-W2-P5-G5-HI-A-L-T

How does the simulation mode work on the 745-W2-P5-G5-HI-A-L-T?

The simulation mode takes either preexisting data or computer generated data. This test allows users to see whether the 745-W2-P5-G5-HI-A-L-T is functioning properly before using it with a transformer.

What are the setpoints groups for?

Setpoint groups can be used to address the protection requirements of different power system configurations.

Reviews For 745-W2-P5-G5-HI-A-L-T

Internal Review

(5.0)

The 745-W2-P5-G5-HI-A-L-T can monitor individual harmonics and total harmonic distortion of the transformer. The 745-W2-P5-G5-HI-A-L-T can also address false tripping during inrush using adaptive harmonic restraint. This relay has two windings per phase and is a high control power unit. This means that the relay needs more energy to run. - AX Control Lead Technician

Repair Services For 745-W2-P5-G5-HI-A-L-T

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$2950

Our highly skilled technicians can repair your 745-W2-P5-G5-HI-A-L-T. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
