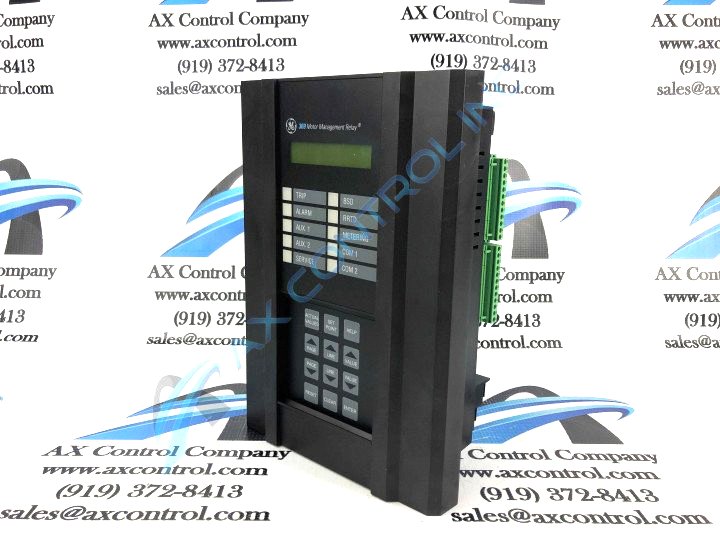

Equipped with an optional metering feature and twelve RTD inputs, this model of General Electric Multilin's 369 Motor Protection series safeguards and controls motors and accompanying motor equipment of medium size. The 369-HI-R-M-0-0 employs technology like ground overcurrent protection and start inhibiting to protect motors and extend system life.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 369-HI-R-M-0-0 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 369-HI-R-M-0-0
  • SKU: 369HIRM00GM
  • Manufacturer: GE Multilin
  • Series: 369 Motor Management Relay

369-HI-R-M-0-0 Technical Specifications

Control Power nominal: 20 VA; maximum: 65 VA
Control Power Input Range 110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions approx. 12 in H x 5 in W x 8 in L
Ground Current Input Frequency 20 to 100 Hz
Insulation Class I
Phase Current Input Conversion True RMS, 1.04 ms/sample
Weight approx. 4.5 kg

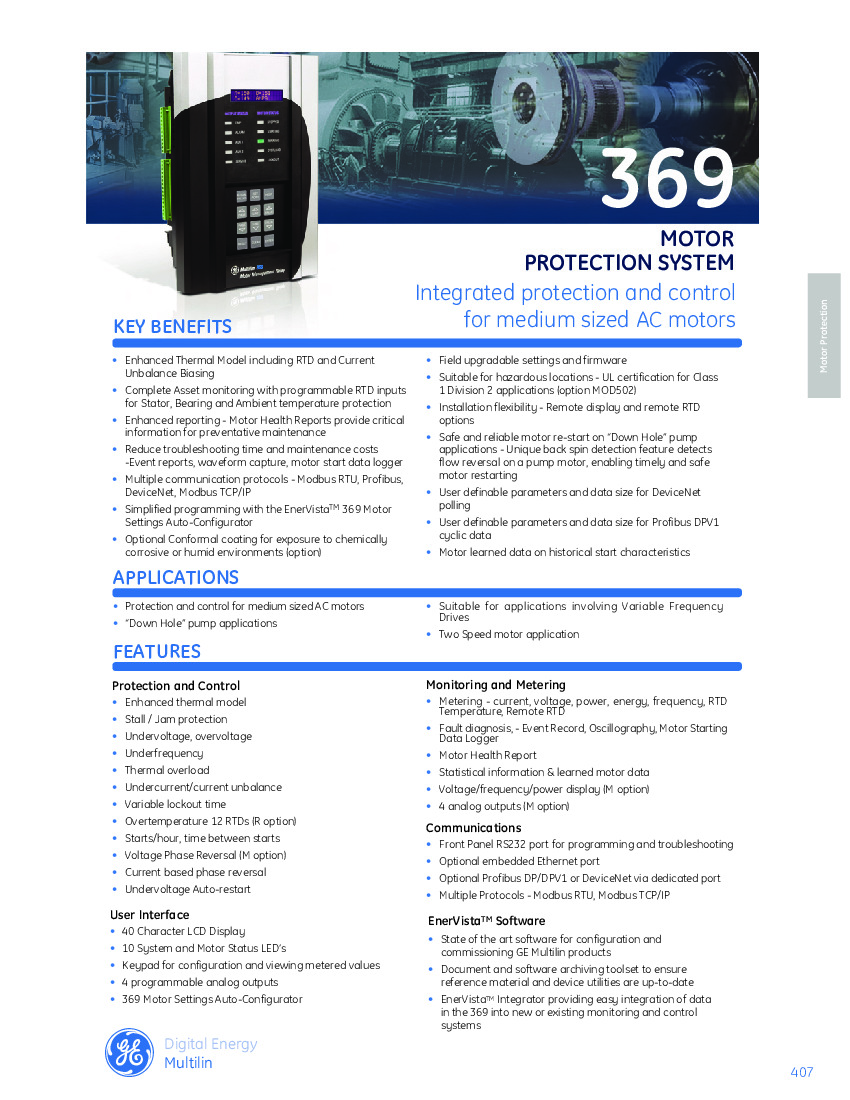

Product Description

Equipped with an optional metering feature and twelve RTD inputs, this model of General Electric Multilin’s 369 Motor Protection series safeguards and controls motors and accompanying motor equipment of medium size. The 369-HI-R-M-0-0 employs technology like ground overcurrent protection and start inhibiting to protect motors and extend system life. Users are able to use this unit’s metering capabilities to track quantities like voltage, watts, power factor, frequency, and energy. Users can then create setpoints to enable protective functions related to these parameters, adding to the versatility of the system.

The relay runs on highly configurable setpoints that guide the protective functions of the system and generally establish system functions. The Multilin 369-HI-R-M-0-0 features the 369 Motor Settings Auto-Configurator, making setpoint creation easier than ever. Users can further modify these setpoints after auto-configuration, further specifying and refining setting files. Setpoints can be created, edited, or deleted through the relay’s 40-character LCD and keypad, or more efficiently modified through the EnerVista 369 software program. Computers running EnerVista 369 can connect to the relay through the RS232 port, and the software program offers a better display for system metrics and a generally improved User Interface.

This 369-HI-R-M-0-0’s optional twelve Resistance Temperature Detectors (RTD) are able to assess actual temperatures within the system. In this unit, each RTD’s three wires are composed of 100 Ω platinum, 100 Ω nickel, 120 Ω nickel,10 Ω copper. As temperature shifts in the system, RTDs generate a resistance value that can be reliably measured and converted to Fahrenheit.

Frequently Asked Questions about 369-HI-R-M-0-0

What type of motors does the General Electric 369-HI-R-M-0-0 Motor Management Relay protect and manage? How can the 369-HI-R-M-0-0 adapt to each individual motor for monitoring and protection functions?
The 369-HI-R-M-0-0 is a motor management digital relay of the 369 Multilin series. Specifically this series is made to monitor and provide protection for three phase motors and the mechanical systems of the motors. The 369-HI-R-M-0-0 is designed to measure the cooling rate of the motor in addition to the time needed to accelerate to full function and the motor inrush current value. These three measurements are then used to provide protection for these three phase motors. The 369-HI-R-M-0-0 can tailor itself to an individual motor by using a custom feature called the FlexCurve (TM) overload curve. If this option is not selected to generate a flexible custom curve based an imputed value by the operator then the user has the ability to select from up to fifteen unique curves to best fit the motor in need.
How many RTDs is the 369-HI-R-M-0-0 able to manage at once?
The 369-HI-R-M-0-0 GE Multilin motor management relay is designed to monitor 12 RTDs individually. These RTDS have the ability to be either ambient RTDS, drive equipment RTDs, or stator RTDS.

Reviews For 369-HI-R-M-0-0

Internal Review
(4.0)

GE Multilin’s 369 series is rated for Class A emission levels and shouldn’t be used in Substation Industrial Environments or near Class B rated electronics. -AX Control Tech Team
