369-HI-R-0-0-0-0-E

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
The 369-HI-R-0-0-0-0-E relay's metering capabilities include event reports, waveform captures, and startup data logging; all these features provide critical insight into system performance and can warn of impending failures. This connection allows for rapid setpoint modification.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 369-HI-R-0-0-0-0-E to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 369-HI-R-0-0-0-0-E
  • SKU: GM-18843
  • Manufacturer: GE Multilin
  • Series: 369 Motor Management Relay

369-HI-R-0-0-0-0-E Technical Specifications

Part Number 369-HI-R-0-0-0-0-E
Manufacturer General Electric Multilin
Series 369 Motor Management Relay
Fuse 3.15 A H 250 V (5 × 20 mm)
Ground Current Input Frequency 20 to 100 Hz
Operating Range -40°F to +140°F
Phase Current Input 1 A and 5 A secondary
Pollution Degree II
RTD Inputs 3 wire, 100 Ω platinum, 100 Ω nickel, 120 Ω nickel,10 Ω copper
Storage Range -40°F to +176°F
Dimensions 11 cm W x 30 cm H x 21 cm L
Shipping Weight 8 lb

About the 369-HI-R-0-0-0-0-E

GE Multilin 369-HI-R-0-0-0-0-E Motor Protection Relay: Key Features

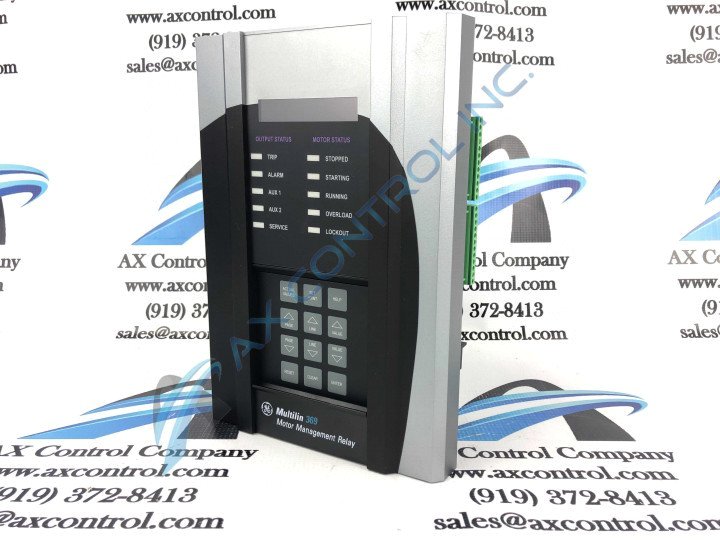

  • The 369-HI-R-0-0-0-0-E is an adaptive motor protection relay designed to monitor, manage, and protect medium-sized AC motors and their associated equipment.
  • It proactively learns motor needs to preserve system life and reduce costs.
  • Metering capabilities include:
    • Event reports
    • Waveform captures
    • Startup data logging
    • These features provide critical insight into system performance and can warn of impending failures.

Physical Specifications & Mounting

  • Approximate dimensions: 11 cm (width) x 30 cm (height) x 21 cm (length).
  • Weight: 10 lbs (in case) and approximately 8 lbs (out of case).
  • The device is mounted in a durable, flame, and corrosion-resistant DEMO metal carry case.
  • It should be mounted away from strong magnetic fields and high current conductors to prevent long-term damage.

Software Integration & Configuration

  • The front of the relay features an RS232 port for connecting computers running GE Multilin's EnerVista 369 software.
  • This connection allows for rapid setpoint modification.
  • Setpoints are configurable settings that dictate the relay's behavior, adjustable for specific motor system needs.
  • EnerVista 369's Motor Settings Auto-Configurator simplifies setpoint configuration by generating an appropriate settings file based on motor nameplate and system information.
  • Users can then further customize the system through manual adjustments within the EnerVista program.

Frequently Asked Questions about 369-HI-R-0-0-0-0-E

Does the 369-HI-R-0-0-0-0-E have any optional features?
The Multilin GE 369-HI-R-0-0-0-0-E comes with the enhanced diagnostic option. This option also affords the unit an enhanced faceplate. The enhanced option also provides the 369 Multilin with a motor health report, a motor start logger of data, and a more advanced event recorder. In addition, the 369-HI-R-0-0-0-0-E includes the additional built-in 12 RTDs when compared to the base model.
What the additional R feature of the GE Multilin 369-HI-R-0-0-0-0-E motor management relay, what types of RTDS come with this option?
The additional 12 RTDs for the R option added to the base 369 Multilin motor management relay can be either bearings, stator, or ambient. The specific type chosen is able to be selected by the software.
What type of motors does the 369-HI-R-0-0-0-0-E protect and monitor?
The General Electric Multilin 369-HI-R-0-0-0-0-E provides management and protection for three phase motors. The 369-HI-R-0-0-0-0-E is also able to monitor the mechanical systems of these motors in a unique taylored way to a specific motor by using measured values of cooling rates, motor inrush current, etc.
What are some of the optional functions of a 369 Multilin GE motor management relay?
Some optional functions that may be included with the base unit Multilin digital motor management relay are under/ overvoltage, phase reversal detection, power factor, backspin detection, and underpower. These optional capabilities can all be explained in the manual.
What are the specifications for the phase current inputs of the 369 Multilin GE motor management relay?
The 369-HI-R-0-0-0-0-E Multilin Motor Management Relay has a phase current input of 1 A and a secondary CT input of 5 A.
