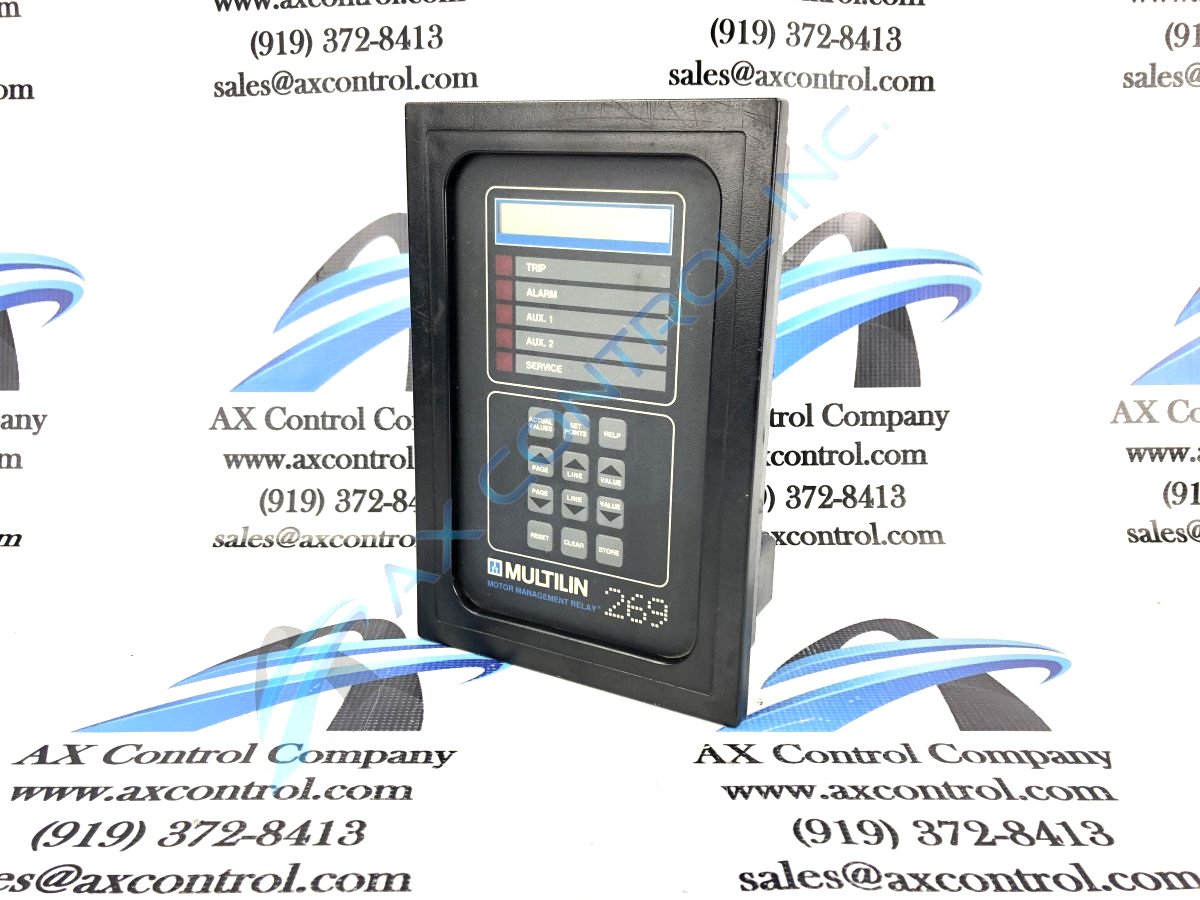

The 269-10C-240 269 Motor Management Digital Relay

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 269-10C-240 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 269-10C-240
SKU: GM-18858

Manufacturer: GE Multilin
Series: 269 Motor Management Relay

Description
Repairs
Warranty
Manuals

269-10C-240 Technical Specifications

Model Number	269-10C-240
Functional Description	269-10C-240 269 Motor Management Digital Relay
Series	269 Motor Management Relay
Manufacturer	GE Multilin
Input Voltage	240-250 VAC/VDC
Additional Specificaitons	50/60 Hz, 20VA Max
Country of Manufacture	Made in Canada

About the 269-10C-240

The 269-10C-240 is a GE motor management relay in the Multilin line designed for integrated protection and control of medium-sized AC motors. The 269-10C-240 monitors the motor and its mechanical loads for faults and issues. With the addition of an optional GE Multilin meter (MPM) the 269-10C240 is also able to monitor power and voltages, and perform tasks based upon these values. The 269-10C-240 includes the following standard features:

a built-in local interface. a 48-character LCD for viewing:
- actual values
- causes of trips and alarms
- programming setpoints
- backlit for easy viewing
microcomputer control
continuous self-test
- with or without a motor running
- malfunctions within the relay will cause a status indication on the front panel
help key
on-site programming
five LED Status indicators
10 Ohm Copper RTD

It is important to note during installation that while the circuitry of the 269-10C-240 is internally shielded, the relay should be placed away from high current conductors or any other source of strong magnetic fields, to minimize noise pickup and interference. The keypad and interface allow for local programming and data viewing. The 269-10C-240 has been pre-programmed for some applications but can have minor changes made to suit the end user. The 269-10C-240 is rated 160-300 VAC/VDC 2A Max. Maximum contact rating is 250 VAC 10A Resistive. 1/4 HP 125VAC. 1/2 HP 250 VAC .

Frequently Asked Questions about 269-10C-240

What are some unique features of the GE Multilin 269-10C-240 digital relay in comparison to other relays in the 269 Multilin series.

The 269-10C-240 has an input power of 160 to 300 VAC/VDC with a 2A maximum. The RTD composition for this motor management relay is 10 Ohm of copper. The rear view of the unit shows the location of the multiple RTDs. Some have the capability to be assigned by the operator to monitor temperature conditions and load bearing conditions. Others generally are used for protection in a stator winding situation. At the rear lower aspect of the relay the phase and ground CT inputs can be found. These are arranged in order from phase 1 to phase 3 with the ground fault CT located last. The control power is located at the top right aspect of the relay (rear view). The four output relays, located at the top left aspect (rear view) feature alarm and trip conditions that can be activated with programmable specifications made by the user, with remote communication control and switch input characteristics.

What are some display characteristics of the 269-10C-240 motor management relay?

The 269-10C-240 display is LED backlit and has a 48 character capacity (alpha-numeric).

Reviews For 269-10C-240

Internal Review

(5.0)

This 269 Motor Management Relay from GE Multilin runs a continuous self-test even without a motor running. This means that any internal malfunctions within this unit will show on the front panel immediately. Read through associated manuals for additional details. - AX Control Lead Technician
