139-DO-FLC

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4 (2)
  • Click a star to rate this product
Model number 139-DO-FLC is equipped with both temperature sensing and emergency restart features. This model is part of the motor protection relay series. Fourteen indicators make up the face of the 139-DO-FLC relay.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 139-DO-FLC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 139-DO-FLC
  • SKU: 139DOFLCGM
  • Manufacturer: GE Multilin
  • Series: 139 Series Motor Protection Relay

139-DO-FLC Technical Specifications

Alarm Temperature 0-180°C (Nominal 110°C)
Case Design Dustproof
Control Power Burden .1 VA
Ground Fault Level Accuracy +0-25%
Output Options 4-20 mA Full Load Current
Overload Input 00-20x Rated CT Secondary Amps Continious
Overload Rapid Trip 150/200/250/300
Power Supply 120 VAC
RTD Analog Input 10mV/°C. OV@ 0°C
Short Circuit Accuracy + 10%

Product Description

The 139-DO-FLC Motor Protection Relay is one of the relays with a different output option than the standard option; the output associated with this mode is a full load current, which is denoted by the FLC acronym at the end of the part number, operates on a milliamperage of four to twenty. The D in the order code indicates what type of supply power is needed to operate this relay without any faults occurring. The power supply for this model is one hundred and twenty volts of alternating current.

One feature of this relay is the start timer. The start timer on this model is used with an induction motor which draws an inrush current while moving up to the desired speed for starting which is usually greater than the full load current. When starting the timer across the line the range is typically between five and seven times the standard running current. When setting the start timer it is best that the true run-up time is measured and then specified by the locked rotor times as well as the continuous number of starts allowed by the manufacturer. It is best to set the control of the start timer on the 139-DO-FLC relay to a timer that will be less than the max locked rotor time but is still greater than the overall time needed for the max number of back-to-back starts allowed.

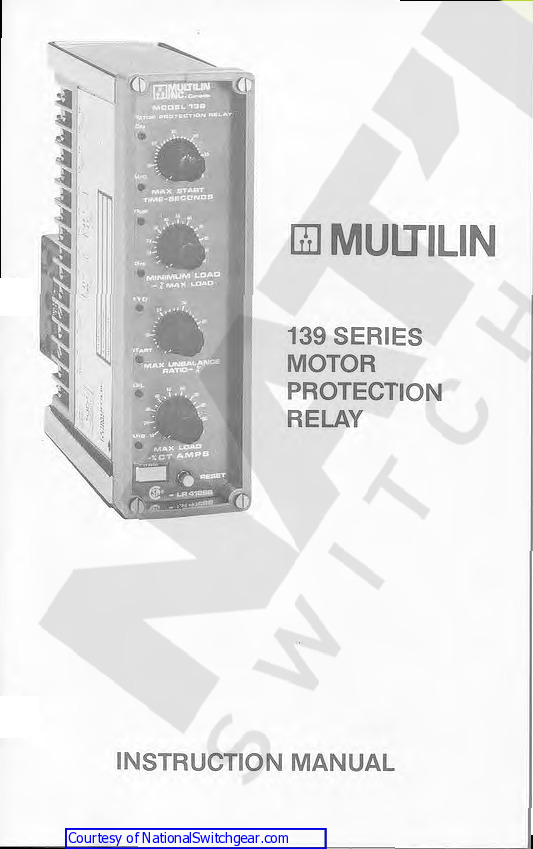

Memory lockout is another feature used with the 139-DO-FLC relay. There are several start conditions that can trip memory lockout, these conditions are overload and start trip conditions. For more information on the memory and memory lockout of this device refer to the attached manual.

Frequently Asked Questions about 139-DO-FLC

What are the control power specifications for the 139-DO-FLC Multilin GE motor protection relay?
The 139-DO-FLC has a standard control power of 120/240 VAC with an optional 125 VDC potential. The Power is specified at 5 VA with a frequency of 50 to 60 Hz. The 120VAC input ranges from 90 to 150 VAC. The 240 VAC input range for the 139-DO-FLC Multilin GE motor protection relay is from 176 to 270 VAC and the 125 VDC input range is from 80 to 150 VDC.
What are the external relay connections of the 139-DO-FLC Multilin GE motor protection relay?
The 139-DO-FLC Multilin GE motor protection relay has three phase current CT inputs (phase 1, phase 2, phase 3). Additionally, the 139-DO-FLC or a 139 Multilin motor protection relay may include a ground fault current CT. This is optional to the base unit. Other features optional to a 139 Multiin is a RTD temperature sensory, an external reset switch, and an emergency restart key switch.
What are the standard outputs for a 139-DO-FLC Multilin GE motor protection relay?
The standard outputs for a 139-DO-FLC Multilin GE motor protection relay are a contactor/breaker trip (main relay contacts) and an alarm (Aux relay contacts). Optional to the base unit is a analog temperature output, a thermal capacity used meter, or a 4-20mA output of the full load current (FLC option).

Reviews For 139-DO-FLC

Internal Review
(5.0)

One feature that makes this relay a great purchase is that if at any point the control power for this model has been removed, the memory on the device will remain active and continue to discharge at a rate proportional to an idling motor. - AX Control Technician

Repair Services For 139-DO-FLC

Type Lead Time Price Action
Repair Service 1-2 weeks $1026

Our highly skilled technicians can repair your 139-DO-FLC. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
