IC220ALG322

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
13 Bit Voltage 2-Channel I/O

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IC220ALG322 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IC220ALG322
  • SKU: IC220ALG322GFP
  • Manufacturer: GE Fanuc PLC
  • Series: Versapoint

IC220ALG322 Technical Specifications

MPN IC220ALG322
Requires IC220TBK061

Product Description

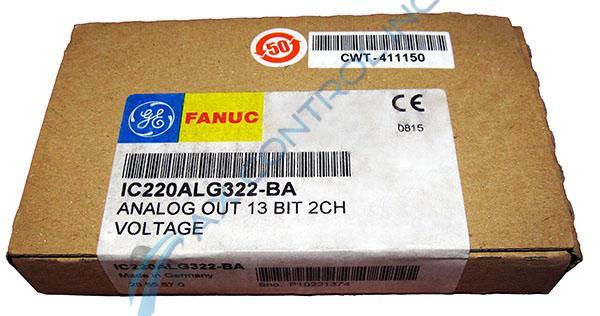

IC220ALG322 is a VersaPoint Analog Output Module manufactured by GE FAnuc Automation. The required terminal strip for this module is IC220TBK062, which contains 5 strips. The only LED indicator on the module is the Bus Diagnostics Default set state. There is no nominal current consumption of US, and the lifecycle status is active. The current consumption from Analog Bus UANA is 25 mA typical and 35 mA maximum. The current consumption for Local Bus UL is 33 mA typical and 40 mA maximum. The output load is 2 kohm minimum and the module update rate is less than 1 msec. The connections style is a 2-wire shielded sensor cable single ended. There are two output points at a voltage of 0-10V and plus or minus 10 volts. This module has a 2 channel analog output 13 bit voltage.

There is no immunity to short circuiting of analog current output on this unit, but there is immunity to short-circuiting of analog voltage output, up to one minute. The maximum cable length for this module is 500 meters. The datasheet number is GFK-2011 and the module ID is 5B hex (91 decimal). This module features configurable output defaults and is suitable for long actuator cables. The total power consumption is 0.68W (typical) with no load operation and 0.85W (typical) with full load operation. The housing dimensions are 0.49 in (width) x 4.8 in (height) x 2.86 in (depth).

Install the analog output module on a separate circuit from the main circuit. If the actuator cable is too large to install into the strain relief of the shield connector with the cable shield sheathed and folded, prepare the cable as shown in the user manual. The module can be configured for its voltage range and output default operation; both channels use the same parameters. Hold Last State in case of error. Safety devices included on the module are transient protection of the analog inputs. Error messages to the control system include breakdown or dropping of communications voltage and I/O error message to the NIU.

  • IC220ALG322-AA
  • IC220ALG322-BA
  • IC220ALG322-CB
  • IC220ALG322A
  • IC220ALG322B

Repair Services For IC220ALG322

Type Lead Time Price Action
Repair Service 1-2 weeks $388

Our highly skilled technicians can repair your IC220ALG322. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

IC220ALG322 Manuals, White Papers, Data Sheets, and Troubleshooting
